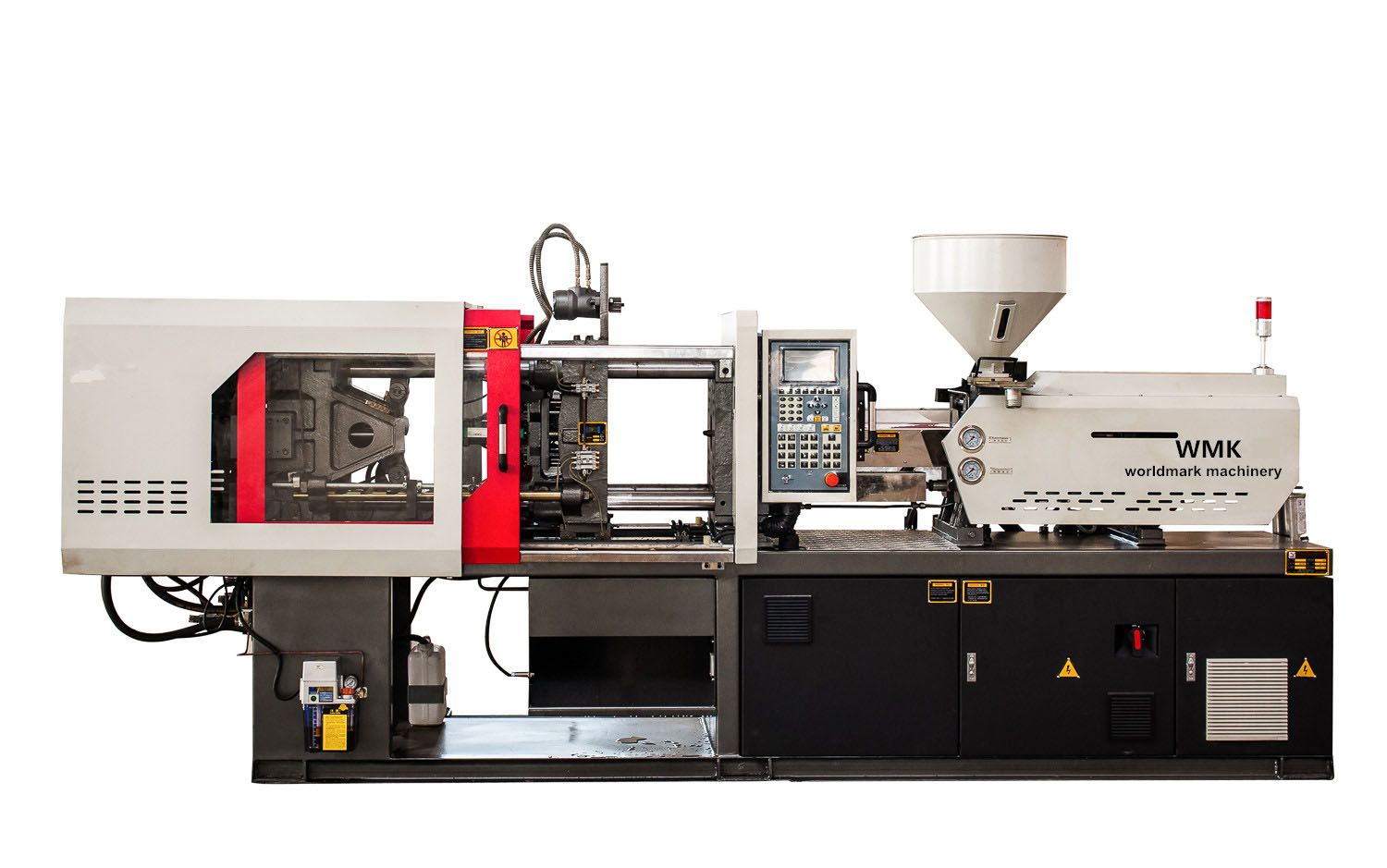

100 Ton Energy Saving Plastic Injectin Molding Machine with Servo Motor

100 Ton Energy Saving Plastic Injectin Molding Machine with Servo Motor
Price: US $ 15650-16500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Contact Supplier
Changzhou Worldmark Machinery Co., Ltd.
Showroom Product Company Profile
100 Ton Plastic Injection Machine (WMK-100).

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai



INJECTION UNIT		   Unit WMK-100
A B C
Screw Diameter Mm 34 37 40
Screw L/D Ratio L/D 22.3 20.5 19
Short Size Cm3 154 177 207
Injection weight G 140 161 188
Injection Rate g/s 78 92 116
Plasticizing capacity g/s 12 15 17
Injection Pressure Mpa 232 196 168
Screw Speed Rpm 0-210




CLAMPING UNIT		 Clamp Force KN 1000
Space Between Tie Bars mm 360*360
Toggle Stroke mm 330
Max. Mold Height mm 400
Min. Mold Height mm 150
Ejector Stroke mm 110
Ejector Tonnage KN 33
Ejector Number P 5


OTHERS		 Max. pump Pressure Mpa 16
Pump motor powder Kw 11
Heater Power Kw 6.2
Machine Dimension(L*W*H) M 3.92*1.1*1.9
Oil Tank Capacity L 200
Machine Weight T 3.5
Prod Model: WMK-100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force: 1000kn
Pump Motor Powder: 11kw
Machine Dimension(L*W*H): 3.92*1.1*1.9
Machine Weight: 3.5t
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
