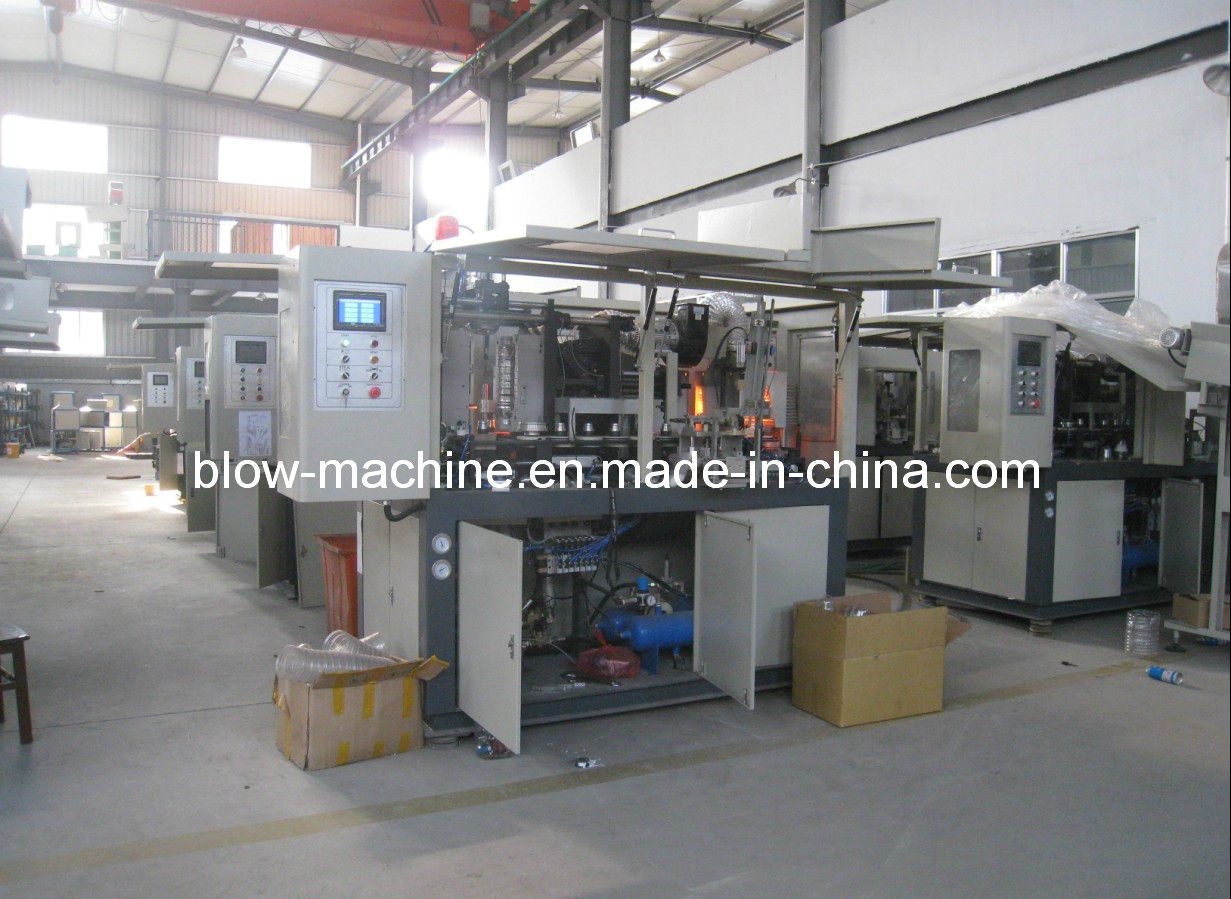

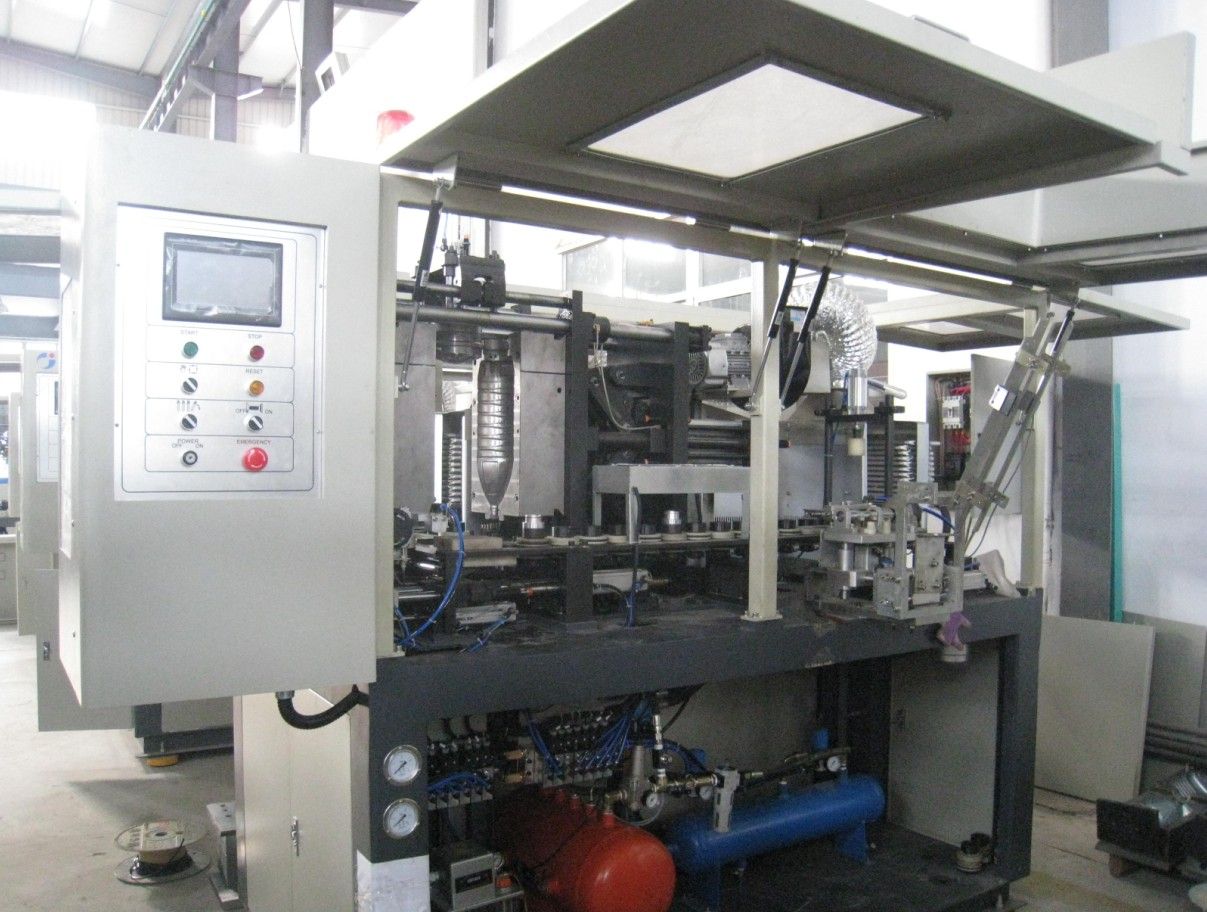

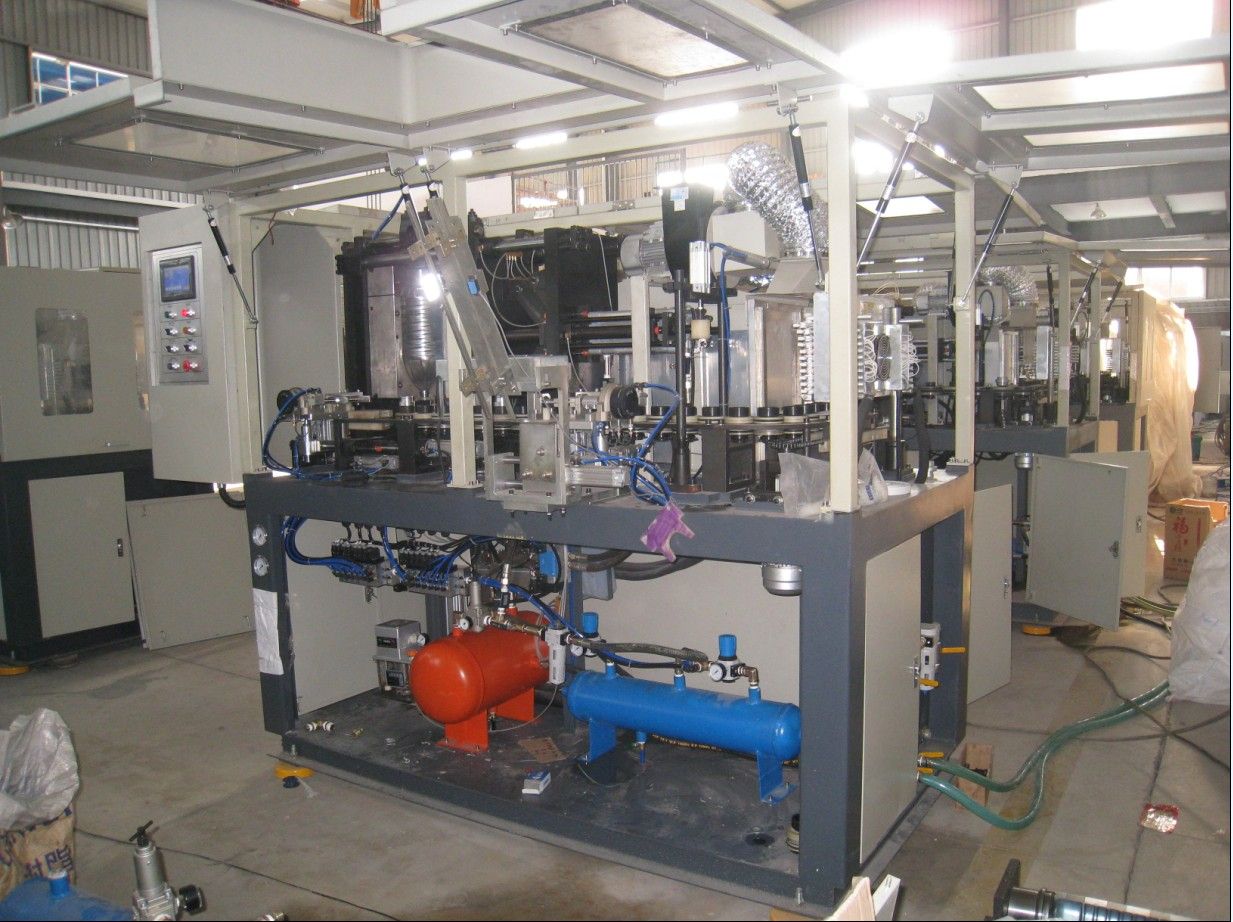

JS600C blowing mould machine is automatic blowing machine , which is 1 cavity , can blow 0.2-10L bottle .
The machine can blow PET containers including the bottles for kinds of wine, drink, soybean, vinegar and pesticide shape and diameter. it has automobile system with high effciency . the distant infrared ray heat pipes are used in the machine , it has high pressure protection with the feature of precisely removing mould . it is easy to maintain. it is the equipment for producint pet bottles .
|
|
| JS-600B | JS-2000 | JS-2000B | JS-3000 | JS-4000 | JS-6000 | JS-600D | JS-600C | JS-1000 | JS-2000C | JSX-2000 | JS-3000B |
Production capacity |
| BPH | 600-900 | 1800-2200 | 1200-1600 | 2700-3000 | 3300-4000 | 5600-6000 | 300-500 | 450-650 | 1000-1200 | 1000-1200 | 2000-2300 | 1800-2400 |
Number of Cavity |
| / | 1 | 2 | 2 | 3 | 4 | 6 | 1 | 1 | 1 | 2 | 2 | 3 |
Clamping force |
| kN | 150 | 180 | 380 | 180 | 350 | 350 | 400 | 150 | 120 | 450 | 160 | 550 |
Mould opening stroke |
| mm | 230 | 200 | 260 | 200 | 200 | 200 | 310 | 230 | 110 | 260 |
| 260 |
Stretch stroke |
| mm | 350 | 350 | 350 | 280 | 350 | 280 | 470 | 430 | 350 | 430 | 280 | 350 |
Max. Container Volume |
| liters | 5 | 2 | 5 | 0.7 | 2 | 0.7 | 10-20 | 10 | 1.5 | 10 | 0.7 | 5 |
Max. Neck Size |
| mm | 120 | 40 | 50 | 40 | 40 | 35 | 90 | 55 | 50 | 50 | 40 | 50 |
Max. Bottle diameter |
| mm | 180 | 110 | 180 | 70 | 105 | 70 | 290 | 210 | 95 | 210 | 70 | 180 |
Max. Bopttle height |
| mm | 350 | 350 | 350 | 280 | 350 | 270 | 480 | 430 | 350 | 430 | 280 | 350 |
Installed Power |
| kW | 31 | 41 | 44 | 31 | 68 | 52 | 75 | 31 | 17 | 44 | 25 | 64 |
Max. Heating Power |
| kW | 30 | 40 | 40 | 30 | 64 | 48 | 72 | 30 | 16 | 40 | 24 | 60 |
Operating Air Pressure |
| Kg/cm² | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Operating Air Consumption |
| liters/min | 900 | 1500 | 2000 | 1500 | 3000 | 3000 | 1000 | 800 | 700 | 2000 | 1300 | 2000 |
Blowing Air Pressure |
| KG/cm² | 30 | 35 | 30-35 | 35 | 35 | 35 | 35 | 30 | 30 | 30-35 | 30 | 30-35 |
Blowing Air Consumption |
| liters/min | 2000 | 2000 | 4600 | 1800 | 3800 | 2800 | 6000 | 4000 | 1000 | 8000 | 1500 | 7000 |
Cooling water Pressure |
| Kg/cm² | ,4-5 | ,4-5 | ,4-5 | ,4-5 | ,4-5 | ,4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | ,4-5 |
Cooling water Temperature |
| °C | .10-20 | .10-20 | .10-20 | .10-20 | .10-20 | .10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | .10-20 |
Cooling water Flow |
| liters/min | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Measurement (L x W x H) |
| m | 2.5X1.5X2 | 2.6X2.2X2 | 2.6x2.25 x2.4 | 2.6X2.2X2 | 3.85X2.3X2 | 3.85X2.3X2.2 | 3.6X1.7X2.5 | 2.5X1.5X2 |
| 2.6X2.25X2.4 | 2.5X1.9X2.2 | 3.2x2.25 x2.4 |
Weight |
| Ton | 2 | 3 | 3.5 | 3 | 4.2 | 4.2 | 3.7 | 2 | 1.8 | 3.5 | 2.3 | 4.5 |
Taizhou Jiansheng Machinery Co., Ltd. is aspecialist manufacture of plastic machinery and molds and hasaccumulated over 20 years ' experiences in machine and mouldmanufacturing.
Our self-developed proud products, JS-seriers multi-purposelbowing machines and JS series molds, are dependable, durable andextensively applicable for various plastics including PET, PP, PE, PC, PA, PS etc. Some key technologies involved in these machines and moldsare first-ever in China.
We have been actively engaged in the improvement of usedtechnologies and invention of new technologeis related to plsticmolding, so as to make our products better geared to market andachieve unbeaten advantages over our competitors.
To meet the demandsofr hot-filling containers, highly transparent PP containers formedical infusion applications, asn high-quality high-yield PETcontainersk we particularly developed PP bottle blowing machines, PEThot-filling bottle blowing machines and its accessories, as well asJS600, JS2000 two-stage automatic blowing machines which are all verypopular amongst the users. High performance cost ratio and well-developed after salesserivices make our products fastsellers not only in China but in manycountries and regions in America, Africa, Europe, Middle East, SoutheastAsia etc as well.
