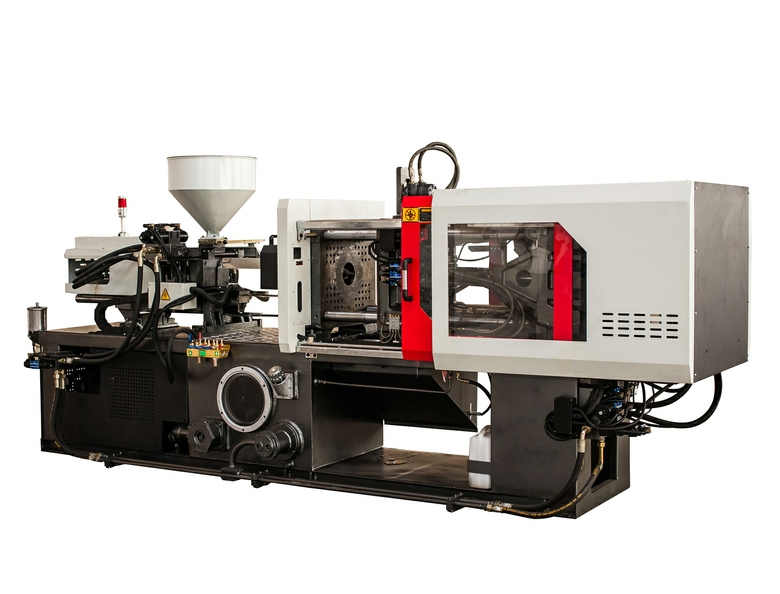

1100 Ton Energy Saving Plastic Injection Molding with Servo Motor Plastic Machine

1100 Ton Energy Saving Plastic Injection Molding with Servo Motor Plastic Machine
Price: US $ 183825-186560/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Contact Supplier
Changzhou Worldmark Machinery Co., Ltd.
Showroom Product Company Profile
1100 Ton Plastic Injection Machine (WMK-1100).

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai





INJECTION UNIT		   Unit WMK-1100
  A B C
Screw Diameter Mm   110 120 130
Screw L/D Ratio L/D   22 20.2 18.6
Short Size Cm3   4619 5500 6452

Injection weight		 G   4203 5005 5871
oz   137 163 191
Injection Pressure Mpa   174 146 125
Screw Speed Rpm 110




CLAMPING UNIT		 Clamp Force KN 11000
Space Between Tie Bars mm 1150*1100
Toggle Stroke mm 1200
Max. Mold Height mm 1200
Min. Mold Height mm 500
Ejector Stroke mm 320
Ejector Tonnage KN 215



OTHERS		 Max. pump Pressure Mpa 16
Pump motor powder Kw 45+45
Heater Power Kw 68
Oil tank capacity L 1950
Machine Dimension(L*W*H) M 12*2.8*3.3
Machine Weight T 56
Prod Model: WMK-1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force: 11000kn
Pump Motor Powder: 45+45kw
Machine Dimension(L*W*H): 12*2.8*3.3m
Machine Weight: 56t
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
