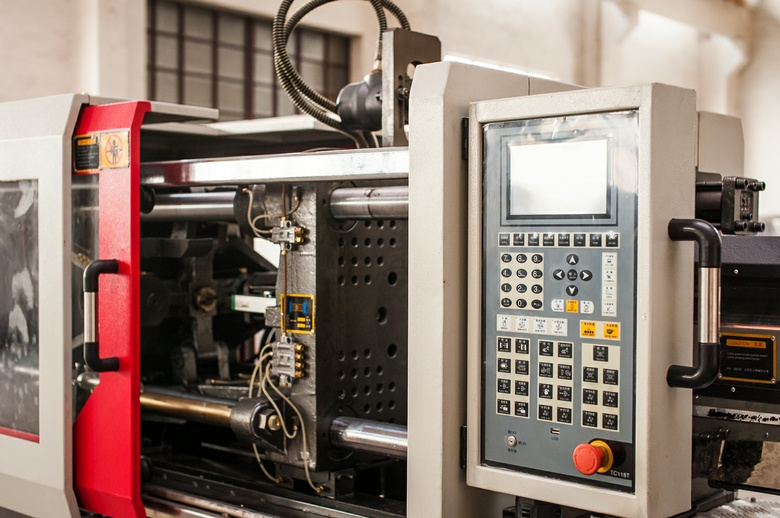

1100 Ton Injection Molding Machine
| Price: |
US $ 180000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Description
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 12700T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.
Some of the important features:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
- Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai
INJECTION UNIT |
|
Unit |
WMK-1100 |
|
|
A |
B |
C |
|
Screw Diameter |
Mm |
|
110 |
120 |
130 |
|
Screw L/D Ratio |
L/D |
|
22 |
20.2 |
18.6 |
|
Short Size |
Cm3 |
|
4619 |
5500 |
6452 |
Injection weight |
G |
|
4203 |
5005 |
5871 |
|
oz |
|
137 |
163 |
191 |
|
Injection Pressure |
Mpa |
|
174 |
146 |
125 |
|
Screw Speed |
Rpm |
110 |
CLAMPING UNIT |
Clamp Force |
KN |
11000 |
|
Space Between Tie Bars |
mm |
1150*1100 |
|
Toggle Stroke |
mm |
1200 |
|
Max. Mold Height |
mm |
1200 |
|
Min. Mold Height |
mm |
500 |
|
Ejector Stroke |
mm |
320 |
|
Ejector Tonnage |
KN |
215 |
|
|
|
|
OTHERS |
Max. pump Pressure |
Mpa |
16 |
|
Pump motor powder |
Kw |
45+45 |
|
Heater Power |
Kw |
68 |
|
Oil tank capacity |
L |
1950 |
|
Machine Dimension(L*W*H) |
M |
12*2.8*3.3 |
|
Machine Weight |
T |
56 |
| Prod Model: |
WMK-1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
High Speed, Saving Electricity |
| Automation: |
Automatic |
| Structure: |
Horizontal |
| Computerized: |
Computerized |
| Plastic Type: |
Thermoplastic |
| Type: |
Injection Molding |
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
