1) Core, cavity, neck part of the mold will use 2316(Germany), The HRC is 48-50C.
2) Mould plate will use P20, All plate will be nickel plated, The HRC is 28C.
3) Graphite copper plate under slide plate, guide bush with copper material.
4) Valve Pins are using material SKD61 and SKH51, The HRC is 48-52C and 59-61C.
5) Nozzle using Beryllium bronze with HRC 38C.
6) Two type temperature controller for choose, PID and Insert card type. Insert card from SINO, Korea.
7) Good cooling system. There is also cooling system on Core, cavity, slide plate.
8) Delivery time: 40-45days.
9) Gurantee of the mould is More than 5million shots.

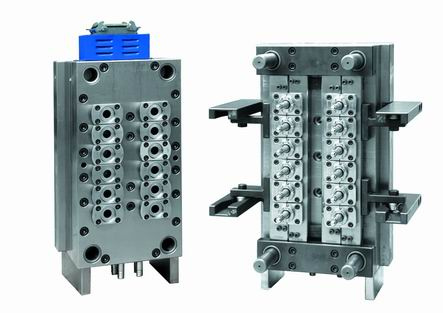

10) The dimension of the mould is 700*380*510mm--12cavity.
Who we are Sica's core business focuses on pet preform mould with more than 10 years. Sica is a technological partner whose main goal is to transfer its competence and expertise to customers, offering competitive solutions to specific customer needs.
Sica's approach is based first on understanding which are customer requirements and then on satisfying them.
Sica insists on high quality preforms and low cycle time by details improvement.
Sica takes into account every factors, apart from quality and price, we consistently improve mould process flow, in order to get faster delivery time.
