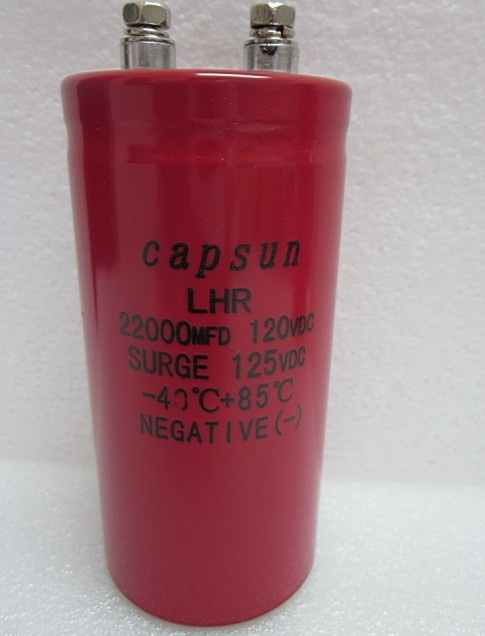

Endurance with ripple current: 5000hours at 85degree
Rated voltage range: 350to450vdc, capacitance 820to18000µ F
Improved the resistance for charge and discharge from same dimension of LG series
For frequently change of regenerative voltage from AC servo amplifier and inverter control
SPECIFIC ATIONS
Items Characteristics
Category temperature Range -40~+85degree
Rated voltage Range 350~450VDC
Capacitance Tolerance ± 20%(M) at 20degree/120HZ
Leakage Current I=0.02CV or 5mA, whichever is smaller
I: Where, I: Max. Leakage current(µ A)\C: Nominal capacitance(µ F)\Rated voltage (V)at 20degree after 5 minutes)
Dissipation Factor(tanδ ) ≤ 0.20 at 20degree/120HZ
Low Temperature characteristics Capacitance change(vdc) C(-25degree)/C(+20degree)≥ 0.7 at 20degree/120HZ
Insulation Resistance When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500Vdc, the insulation resistance shall not be less than 100mΩ
Insulation Withstanding Voltage When a voltage of 2, 000Vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage...
Charge and Discharge The following specifications shall be satisfied when the capacitors are restored to 20degree after subjected to charge and discharge test with the voltage waveform shown below at room temperature(15to35degree)
Capacitance change ≤ ± 20% of the initial value Voltage waveform:
D. F. (tanδ ) ≤ 300% of the initial specified value
Leakage current ≤ The initial specified value
Frequency 3HZ
Number of cycle 60 million times
Endurance The following specifications shall be satisfied when the capacitors are restored to 20degree after subjected to DC voltage with the rated ripple current is applied (the peak voltage shall not
Capacitance change ≤ ± 20% of the initial value exceed the rated voltage) for 2, 000 hours at 85degree.
D. F. (tanδ ) ≤ 200% of the initial specified value
Leakage current ≤ The initial specified value
