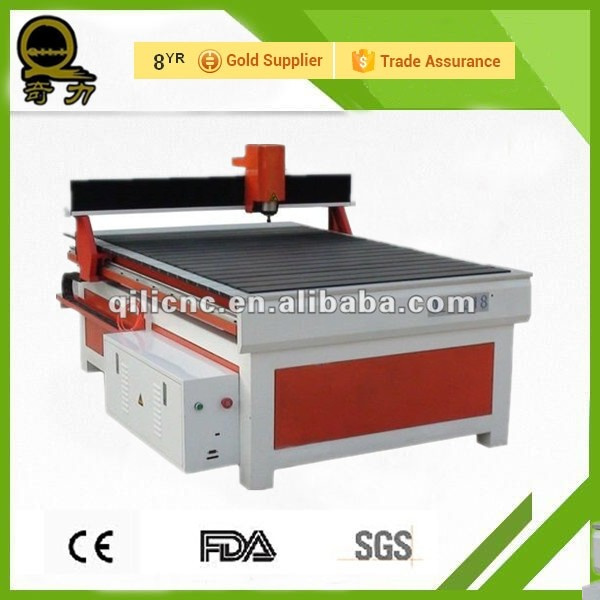

Product Features
1. German double-nut ball screws and imported guide rails ensure high precision and perfect effect of both metal engraving and use in advertisement
2. Linear guide ensures a longer life of the machine;
3. High-speed driver;
4. Axis X with dust-proof system ensures the good performance of the machine;
5. The CNC Engraving Wood Machine continues to work after the point-break and blade-brake, holding as many as 9 points;
6. Strong compatibility: CAD/CAM software, including type, artcarm, castmate, proe, corelerow...
7. Wide Range of Use: Advertising, mould, stone, architecture model...
Standard Configurations
O Steel Lathe Bed with aluminum
O Three axis with imported round guides and double ball screw nuts
O NCSTUDIO system
O 1.5W water-cooling transducer motor
O Leadshine driver
O Optional: 2.2KW Dust Collector
| X/Y Working Area | 1200mm*1800mm |
| Z Working Area | 120mm |
| Table Size | 1340mm*2020mm |
| Maximum Speed | 5m-6m/min |
| Maximum Working Speed | 2m-3m/min |
| Dpi | 0.005mm |
| Repositioning Accuracy | 0.05mm |
| Feeding Height | 120mm |
| Command Code | G Code, *. u00, *. mmg, *. plt |
| Working Software | Windows 98/2000/xp |
| Power (not including spindle) | 400W |
| Working Voltage | AC220V/50Hz |
| Spindle Power | 1.5KW |
| Spindle Running Speed | 0-24000rpm |
| Motor | Stepper |
P.S.
All the parts of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can
be customized and so on .
Guarantee&Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or phone
3.Userfriendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materialsfor processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
