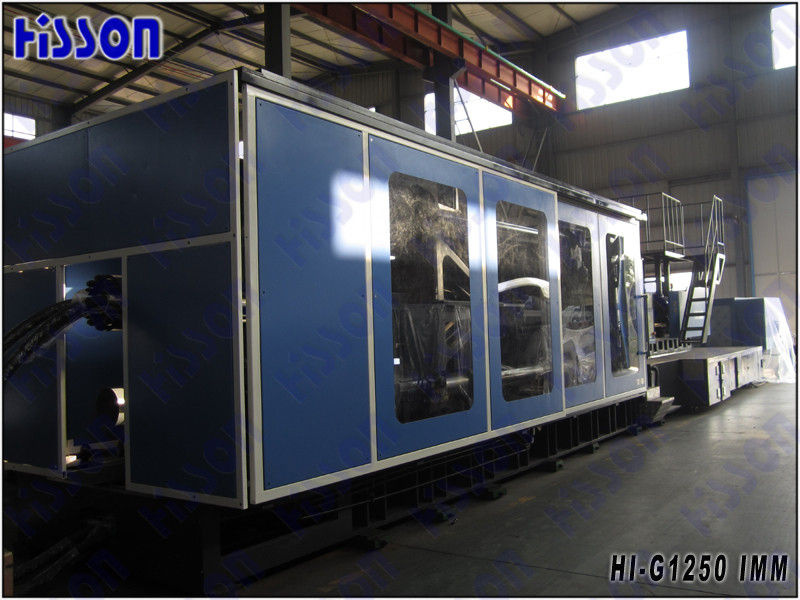

Plastic Automatic Injection Moulding Machine 12 Cavities For Auto Parts
Quick Detail:
HI-G1250 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 1250tons, there are four available screws, the corresponding real shot weight 4110g, 4890g, 5740g,6660g. This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.

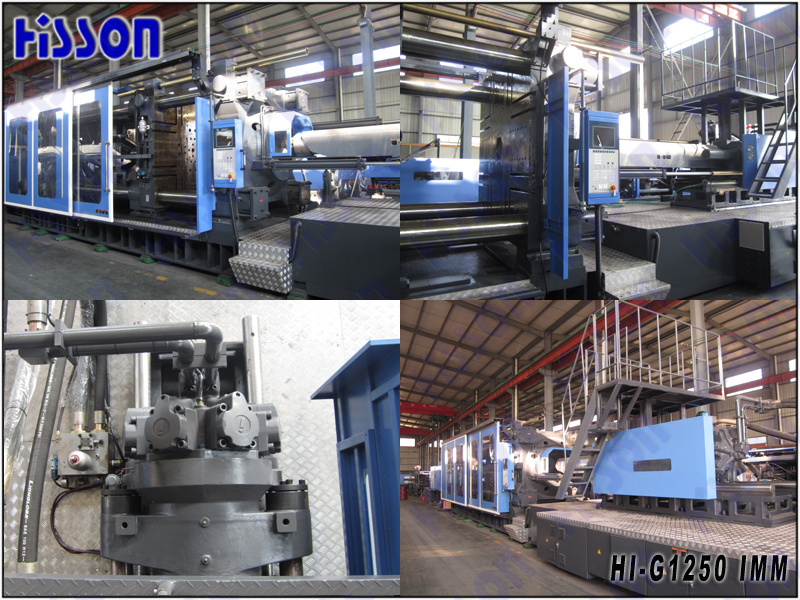

Machine main components adopt world famous brand, e.g.:
? Controller:TECHMATION (TAIWAN),
? Low voltage contactor: SCHNEIDER(FRANCE),
? Low voltage air switch: SCHNEIDER(FRANCE),
? Proportional Valve: Dofluid HNC(TAIWAN)
? Oil pump: VICKERS(USA)
? Directional Valve: VICKERS(USA)
? Induction travel switch: OMORON (JAPAN)
? Inductor potentiometer: FORT(USA)
Applications:
HI-G1250 Plastic Injection Molding Machine is for middle &big industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 500g-6660g, mold cavity can be:1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities, 24 Cavities, 32 Cavities,48 Cavities,72 Cavities,108 Cavities
Description:
HI-G1250 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Specifications:
HI-G1250 Technical Parameters
HI-G1250 | Optional Parameters | |||||
TECHNICAL PARAMETER TABLE | Unit | A | B | C | D | |
INJECTION | SCREW DIAMETER | mm | 110 | 120 | 130 | 140 |
SCREW L/D RATIO | L/D | 26.2 | 24 | 22.2 | 20.6 | |
SHOT VOLUME(THEORETICAL) | cm3 | 5322 | 6333 | 7433 | 8616 | |
INJECTION WEIGHT(PS) | g | 4843 | 5763 | 6764 | 7844 | |
INJECTION PRESSURE | Mpa | 806 | 956 | 1122 | 1302 | |
INJECTION RATE | g/s | 115 | 128 | 145 | 175 | |
PLASTICIZING CAPACITY | g/s | 206 | 173 | 148 | 127 | |
SCREW SPEED | rpm | 0-95 | ||||
CLAMPING | CLAMP FORCE | kN | 12500 | |||

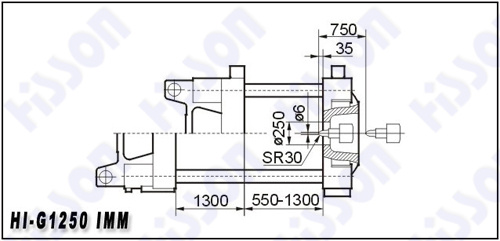

OPEN STROKE | mm | 1300 | ||||
MAX.MOULD HEIGHT | mm | 1300 | ||||
MIN.MOULD HEIGHT | mm | 550 | ||||

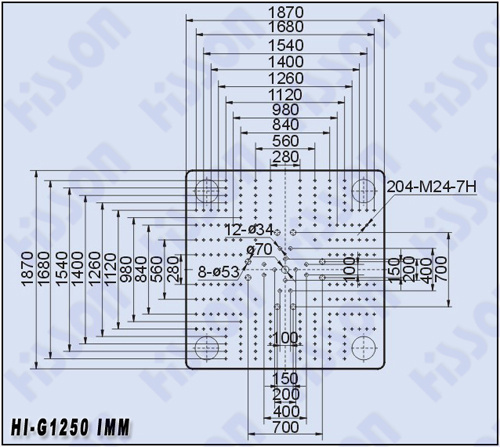

SPACE BETWEEN TIE BARS | mm | 1260×1260 (W×H) | ||||
EJECTOR FORCE | KN | 260 | ||||
EJECTOR STROKE | mm | 400 | ||||
GENEREL | EJECTOR NUMBER | n | 21 | |||
PUMP PRESSURE | KW | 16 | ||||
PUMP MOTOR POWER | KW | 55+55 | ||||
HEATING POWER | KW | 85.25 | ||||
MACHINE DIMENSION | m | 14.3×2.8×3.5(L×W×H) | ||||
MACHINE WEIGHT | T | 65 | ||||
Hopper Capacity | L | 100 | ||||
Oil Tank Capacity | L | 1900 | ||||
Competitive Advantage:
1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
| Prod Model: | HI-G1250 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamping Force: | 12500kn |
| Screw Dia: | 110/120/130/140mm |
| Shot Volume: | 5322/6333/7433/8616cm3 |
| Tie Bar Distance: | 1260*1260mm |
| Type: | Injection Blow Molding |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
