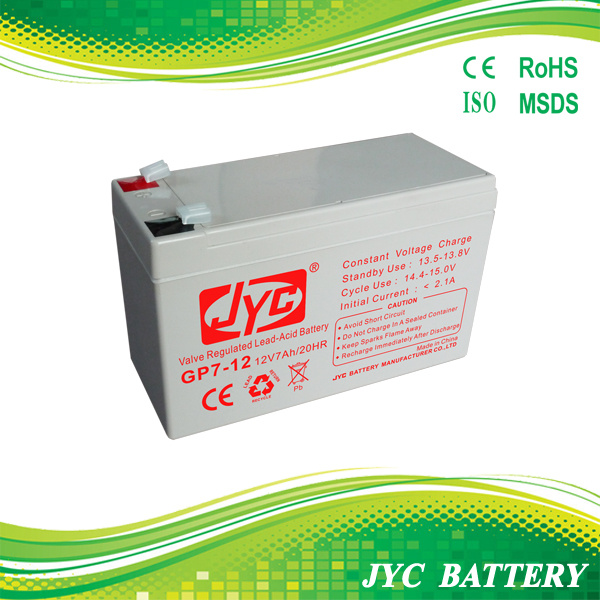

Best price ups battery 12v 7ah
Specifications
Nominal Voltage: 12V
Rated Capacity (20 hour rate): 7AH
Dimension
Length 151mm± 1mm
Width 65mm± 1mm
Height 95mm± 1mm
Total Height(with terminals) 101mm± 1mm
Weight: Approx. 1.95KG
Capacity 77º F(25º C)
20 hour rate (0.36A to 10.5Volts) 7AH
10 hour rate (0.65A to 10.5Volts) 6.5AH
5 hour rate (1.19A to 10.2Volts) 5.95AH
Internal Resistance: Full charged 77º F(25º C) 19MΩ
Standard Terminal: F1
Capacity affected by
Temperature (20 hour rate)
104º F(40º C) 102%
77º F(25º C) 100%
32º F(0º C) 85%
5º F(-15º C) 65%
Self-Discharge 77º F(25º C) Capacity after 3 month storage 91%
Capacity after 6 month storage 82%
Capacity after 12 month storage 64%
Typical Applications
1. Tele-communication central station (wired or cellular)
2. Power system communication, military communication, etc.
3. Network communication including: Data transmission, television signal transmission, etc.
4. Uninterruptable Power System (UPS- for Telecom)Battery general features
Characteristics of VRLA battery
1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use.
2. High shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7Hz frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.
3. High discharging performance: With smooth discharging voltage and mild discharging platform.
4. High resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.
5. High impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.
6. High resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.
7. High resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
Our Company
JYC Battery Co. Is a state-of-art company devoted to research, develop and manufacturing of the
Lead Acid battery. Through over 12 years of development, JYC has grown to well-known and the most
Reliable storage battery brand at home and abroad. With a 100, 000 square meter manufacturing plant finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of VRLA batteries.
OEM/ ODM is accepted.
JYC is a professional manufacturer in SLA batteries, including VRLA batteries, AGM batteries, Deep cycle batteries, Car batteries, Gel batteries, solar batteries and front terminal batteries, in a 100, 000 square meters plant with state-of-the-art facilities and equipments, and finely turn for mass production and OEM/ODM orders.
Since its established in 2000, JYC constantly produce highly appraised products and offer best service and fast delivery. Taking advantage of JYC advanced VRLA-EF technologies in making batteries plates, JYC has been maintained and conducted productions strictly by environmental protection, energy conservation, emission reduction and pollution preventing. Integrated productions from lead powdering, plates making, batteries case injection, and finally batteries assembly lines, all under highly strict execution on quality control by ISO9001 and ISO14000, which ensure its reliable power and performance of every JYC battery.
" Customer First, Quality First" make JYC continuously comply innovation and quality restriction and to satisfy diversified demands of customers from all over the world!
