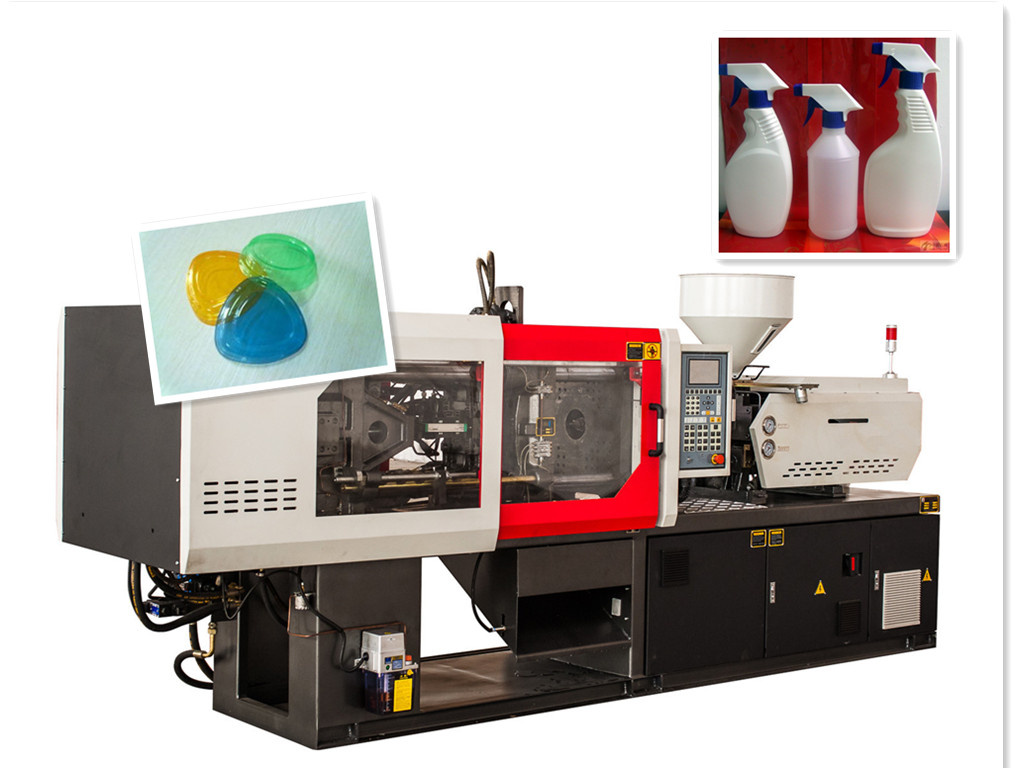

130 Ton Horizontal Pet/PP Injection Molding Machine

130 Ton Horizontal Pet/PP Injection Molding Machine
Price: US $ 17000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
130 Ton Horizontal Pet/PP Injection Molding Machine


Product Description
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai



INJECTION UNIT
  Unit WMK-130
A B C
Screw Diameter Mm 38 40 45
Screw L/D Ratio L/D 22.1 21 18.7
Short Size Cm3 209 232 294
Injection weight G 191 211 267
Injection Rate g/s 105 132 160
Plasticizing capacity g/s 16 20 28
Injection Pressure Mpa 205 185 147
Screw Speed Rpm 0-200




CLAMPING UNIT
Clamp Force KN 1300
Space Between Tie Bars mm 410*380
Toggle Stroke mm 380
Max. Mold Height mm 430
Min. Mold Height mm 150
Ejector Stroke mm 130
Ejector Tonnage KN 39.6
Ejector Number P 5


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 13
Heater Power Kw 7.4
Machine Dimension(L*W*H) M 4.5*1.19*1.85
Oil Tank Capacity L 210
Machine Weight T 4.2
Prod Model: WMK-130
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features: High Speed, Saving Electricity
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Clamping Way: Hydraulic & Mechanical
Certification: ISO9001:2008
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
