1300kn Servo Motor Injection Molding Machine (YH130)
| Price: |
US $ 10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

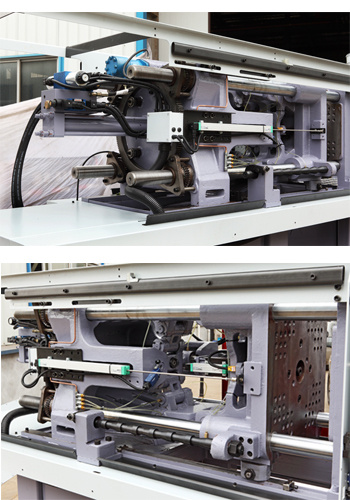

Clamping unit
5-point double toggle clamping system
Mechanical &electrical safety devices
Low pressure moule protection
Controllable multi_stage mold open/close position,pressure&speed
Fast moule clamping with differential device
Robust casting construcition with strengthened tie bar for maximum service life and best molding results
Automatic mould height adjustement
Variable mokes of djector movement
Automatic central lubrication

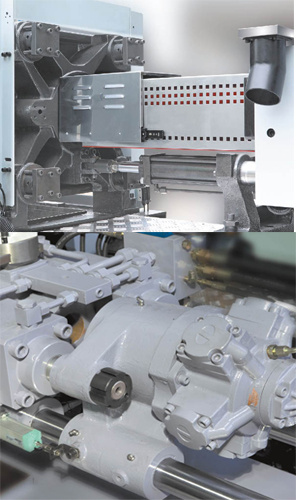

Injection unit
Double drive cylinder injection system with symmetrical oil circuit
Controllable multi-stage injection pressure,speed and position
Controllable multi-stage dwell pressure,speed and time
Controllable multi-stage charging speed ,position and time
PID barrel temperature control
Screw plasticizing back pressure control
Suck back function
Plasticizing cold start prevention
Screw speed inspection
Self purging function
Efficient plasticizing device with strong torque hydraulic motor

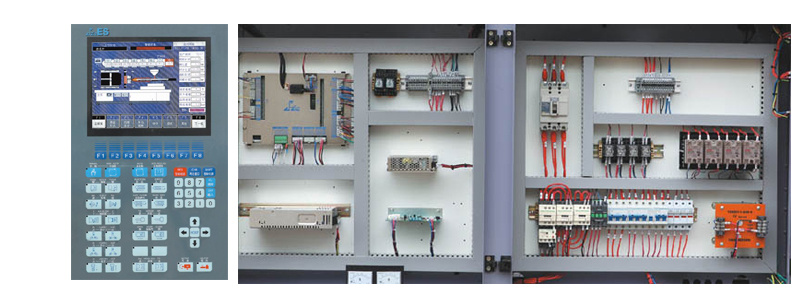

Control System
Japanese controller with 10 inch LED color screen.
Mold data storage
Linear transducer forclamping/injection/ejection control
English ,Spanish,Portuguese,Russsian,Arabic and other language options
Hydraulic system
Efficient and sound reduced hydraulic sustem
Weldless oil circuit
Hydtaulic proportional control
Hydraulic elements by well-known brand with high reliability and long service life
Oil temperature alarm
|
YH130 |
|
|
|
|
|
INJECTION UNIT |
T |
A |
B |
C |
|
Sxrew diameter mm |
32 |
36 |
40 |
45 |
|
Screw stroke mm |
200 |
200 |
200 |
200 |
|
Screw L:D L/D |
24 |
23 |
20.5 |
18.2 |
|
Shot volume cm3 |
161 |
203 |
251 |
318 |
|
shot weight Ps g |
145 |
183 |
226 |
286 |
|
injection pressure Mpa |
264 |
208 |
169 |
133 |
|
dwell pressure kgf/cm2 |
2689 |
2125 |
1721 |
1360 |
|
injection speed mm/sec |
120 |
120 |
120 |
120 |
|
injection rate cm3/sec |
96.5 |
122.1 |
150.7 |
190.8 |
|
screw rotate speed rpm |
240 |
240 |
240 |
240 |
|
nozzle sealing force KN |
38.2 |
|
nozzle advancestroke mm |
30 |
|
heater power KW |
7.84 |
|
CLAMPING UNIT |
|
|
clamp force KN |
1300 |
|
toggle steoke mm |
380 |
|
space between tie bars mm |
410×410 |
|
max.mould height mm |
450 |
|
min.mould height mm |
150 |
|
ejector number pc |
5 |
|
ejector force KN |
42.7 |
|
ejector stroke mm |
130 |
|
OTHERS |
|
|
specialpump pressure Mpa |
21 |
|
standrd pump pressure Mpa |
18 |
|
machine dimensions(L×W×H)m |
4.5×1.0×1.72 |
|
Machine weight T |
4 |
|
oil tank capacity L |
200 |
|
pump motor power KW |
13 |
| Prod Model: |
YH130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Injection Machine: |
Plastics Processing Machine |
| Type: |
Injection Blow Molding |
| Automation: |
Automatic |
| Structure: |
Horizontal |
| Computerized: |
Computerized |
| Plastic Type: |
Thermoplastic |
| Plasticizing Way: |
Screw Type |
| Clamping Way: |
Hydraulic & Mechanical |
| Certification: |
CE |
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.
In FL Machinery, we have full understanding of customer demands in a changing technology environment.
Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.
FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.
FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.
We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
