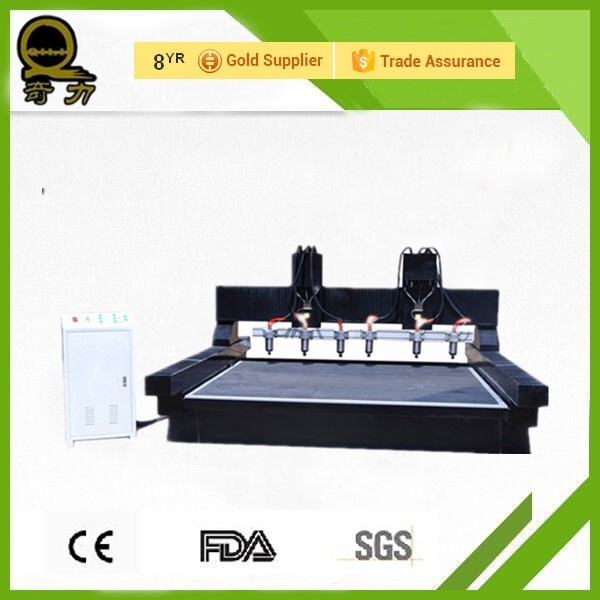

Stone/granite engraving machine QL-1325
Our Company is a professional manufacturer for CNC Routers, mainly used for advertisement, woodworking, stones, furnitures, etc.
Characteristics:
1. Imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.
2. The Stone CNC Router Machine seamless welded steel structure, rigid Haobu deformation, table back lining plate, the rigid strength, and machine loading capacity can be
3. Constant power spindle motor, cutting intensity, high efficiency.
4. Software compatibility, and compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software
5. Two-way tool cooling system, effectively raising tool life
The main application field of industry:
1, Woodworking: Three-dimensional wave plate processing, cupboard doors, wooden doors, wooden doors process, doors, screens, process window processing, video game cabinets and panels, computer table and plate Auxiliary furniture products processing.
2, advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, plastic sheeting, PVC pipe a variety of materials advertising the production of decorative products.
3, metal industry: A sculpture of copper, aluminum, iron and other metal molds,
4. Stone Granite, marble, Qingshi, sandstone, and other stone carvings
5, other industries: A variety of large-scale relief sculpture, video carving, widely used in process industries
Standard Configurations
Square Tube Lathe Bed with water tank
X Y with racks, all with square guides and dust cover
Axis Y with two motors
NCSTUDIO System
3.0 KW Spindle and Transducer
Large Leadshine driver
Auto Lubrication System
Technical data:
Standard Configurations | Options |
Square Tube Lathe Bed, absorption table-board |
2.2kw Dust Collector |
X Y with racks, all with square guides |
|
Axis Y with two motors |
|
DSP System |
|
4.5KW Spindle and Transducer |
|
Large Leadshine driver |
|
5.5 KW High-power Vacuum Pump |
|
Auto Lubrication System |
|
Max. speed 30-40m/min |
|
| Technical Data |
Working Area |
1300mm*2500mm*300mm |
Table Size |
2500mm*4500mm |
Max. Speed |
> 20m/min |
Clamping |
By Suction |
Processor |
DSP/ Speed 100MHZ |
Interface |
USB |
Command Code |
G Code*. u00*. mmg*. plt |
Working Software |
DSP |
Power (not including spindle) |
1840w |
Working Voltage |
AC380V/50HZ |
Spindle Power |
4.5kw |
Spindle Running Speed |
0-24000rpm |
Motor |
Stepper
|
