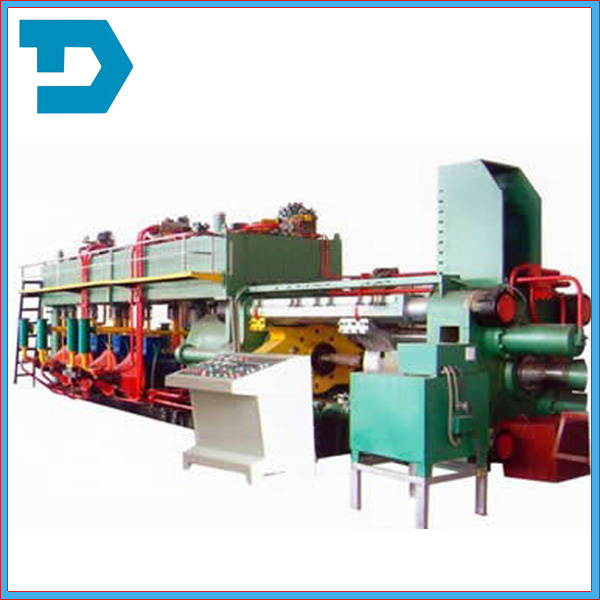

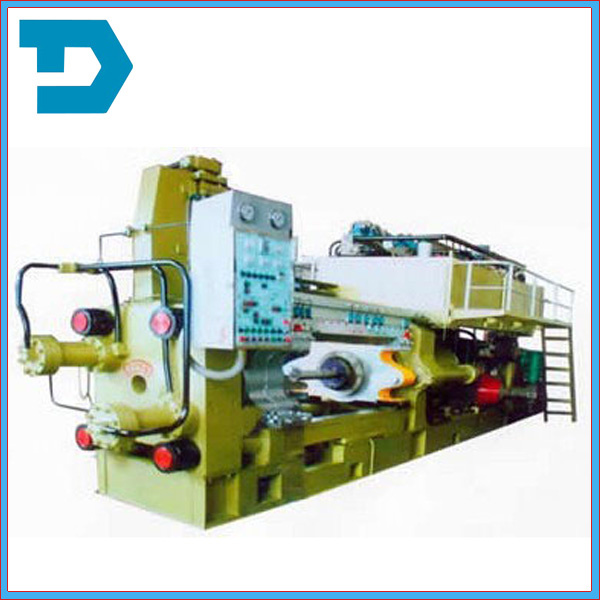

1400T(1540UST)Accerrories
(1)main oil pump: A7VO-250 (Rexroth )*4sets
Auxiliary pump: SQP43-60-25 (Tokyo) 1set
(2) hydraulic parts:
The hydraulic are made in Taiwan.
(3) motor:
Main motor: Y280 -90KW-380V-6P *4 sets
Y280 -30KW-380V-6P * 1 set
Pressure leading motor: Y112- 7.5KW-380V-6P 1 set
The container's temperature: 380-430Celsius
(4)Material:
Main cylinder: 35# casting steel
Main plunger: Chilled casting iron
Front plate: 35# casting steel
Dies sliding base: 45# forging steel
Butterfly plate: 35# casting steel
Connecting pipe: 45# steel
Temperature conservation part: 35# casting steel
Container: 5crmnmo
Container liner: H13 forging
Stem: H13 forging
Extruding part: H13 forging
Bottom shelf: 35# steel and steel plate welding
(5) Electrical Parts:
PLC: MISBUSHI FX2N-128MR
AC contactor: Schneider
Stroke switch: Tend, Taiwan
Relay: Jiale, Switzerland.
Fittings elements of equipment:
Stem 1PC, Dummy block 2PC, heat electric pipe 1set, shear blade 1PC, the manual of the press 1set,
Buttons 2PCS, relay2sets.
Guangzhou DT Exp. & Imp. Co. Ltd was established 2011. We have a great team with more than 15 years professional
The main Machineries we manage:
1) Furnace and all continuous casting system, upward casting, downward casting and level continuous casting for brass and copper.
The whole line will include the Melting furnace, Holding furnace casting, cutting, drawing, peeling and polishing processing and so on.
We also supply all dies like graphite dies, peeling dies and drawing dies for your whole production line.
2) Combined drawing machinery is our following treatment of copper bars after casting line and extrusion processing.
The combine drawing machinery will assemble all processing in one machine. It consists of 7 parts as following: Initial straightening -- drawing--precision straightening--hydraulic cutting--bar guide-- polishing -- material receiving frame.
Tools and mold for Combined drawing machine: Hydraulic scissor, drawing dies, knives for cutting and so on.
3) We also developed our own metal mold department for mold opening and metal tools and metal stampings. Such as punching mold for metal, drawing mold for metal, continuous mold and so on. We would like to design and make mold according to your finished products or drawings, also we can make the finished products according to your samples.
4) Also we supply metal crafts and arts.
Our advantages:
1. Professional, Concentration, Attentive
2. Feedback within 24 hours and 24 hours online;
3. Lifetime technology support and repair guarantee;
OUR SLOGAN: WE BEAT WITH BEST FOR YOU!
