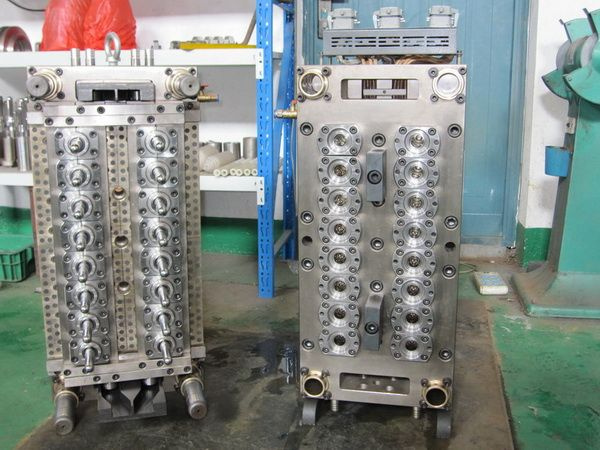

16 Cavity Pet Preform Mould

16 Cavity Pet Preform Mould
Price: US $ 1000-1200/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union


Taizhou Huangyan Xing Xi Te mould factory located in Huangyan

district Zhejiang province--the
hometown of the mould in China,We

specialize in plastic bottle
mould,preform mould,cap mould,injection

mould,water bottle mould,mineral
bottle mould,shampoo and costmetic

bottle mould,fruit juice bottle
mould,oil bottle mould,jar mould and so on

with
modern technology and advanced equipments.For over 10 years

diligent
operation,we had established a mature one-stop service line

from inquiry
to after-sales service.






Our PET preform mould details :

1.Design
Advanced structure is designed to improve rate of finished products;

 Two-step double taper locating technology;

each cavity self locked independently;

off-center adjustment system make the thickness error of perform less then0.05mm.

Bottleneck is adopted International Screw thread standard, No cutting of gate to reduce the labor intensity

 --------------------------------------------------------------------------------------------------------

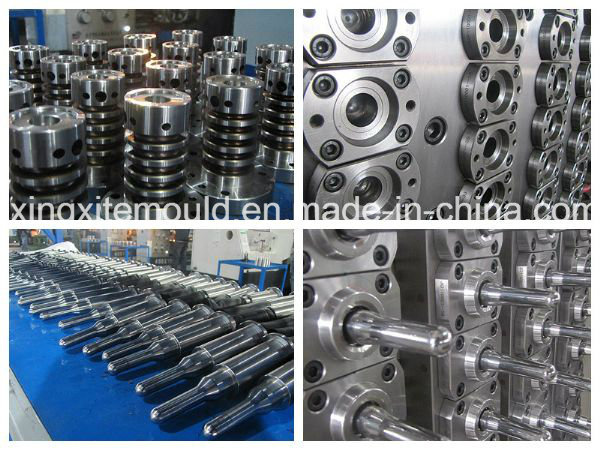

2. Material of steel
cavity and core use imported S136 stainless steel with fine polishing, high hardness to get mold's high precision and good quality.


------------------------------------------------------------------------------------------------------------------------------
3.About gate
pin-valve gate ,pneumatic drive the nozzle pin simultaneous high speed open and close action. which can effectively control the injection hole open and close actions on each cavity. reliable seal function, smooth moving, low thermal expansion rate ,long using life and also saves electric energy.



 -----------------------------------------------------------------------------------------------------------------------------

4.About hot runner
hot runner system is designed and made by ourselves, it can achieve ideal and prompt heating effect for preform production ,cavity with lower injection pressure to reduce wear and tear of mould parts.



 -----------------------------------------------------------------------------------------------------------------------------

5.heat system
with double heating system,it has separate temperature control mode ,the heat bar are used to heat the mould mainfold plate,small heaters supply the heating temperature for cavity nozzle continuously.

------------------------------------------------------------------------------------------------------------------------------
6.cooling system
each parts including core ,cavity and valve gate has independently cooling system.

------------------------------------------------------------------------------------------------------------------------------

7.heat treatment
mechanical treatment cavity and core to prolong service life ,nitrogen treatment with neck screw.with fitly operation ,guarantee Long using life over 2.0 million shots of injection cycle

------------------------------------------------------------------------------------------------------------------------------


8.special satisfied servive
each mould undergoes strict mould test before delivery.we can provide an experienced team for installation and test as per client's request Standard inter-changeable mould components

 -----------------------------------------------------------------------------------------------------------------------------






Cavity No16243248
Dimension of 17g preform mould800×380×430870×460×460870×700×5201040×680×535
Weight980kg1300kg2200kg2900kg
Dimension of 30g preform mould800×380×460870×460×480870×700×5301040×680×560
Weight1060kg1400kg2400kg3100kg
Dimension of 45g preform mould800×380×490870×460×490870×700×5601040×680×590
Weight1100kg1500kg2600kg3200kg

Prod Model: short tail
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core And Cavity: S136
Hardness: 45-52 HRC
Mould Base: P20
Design: Ug,CAD
Experience: with Over 15 Years Mould Making
Application: Household Appliances
Material: Steel

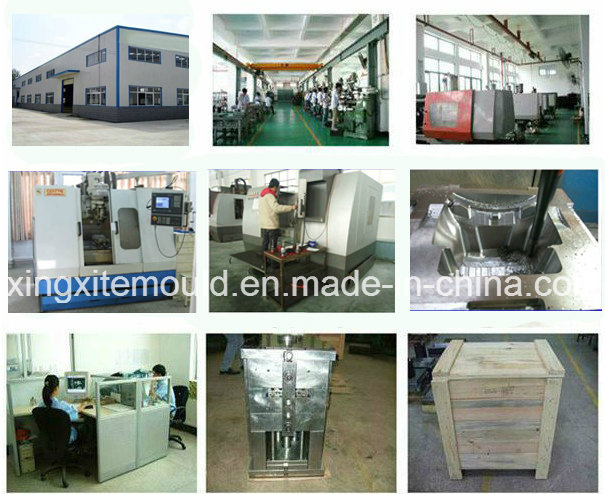

Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.

Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.

Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.

We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
