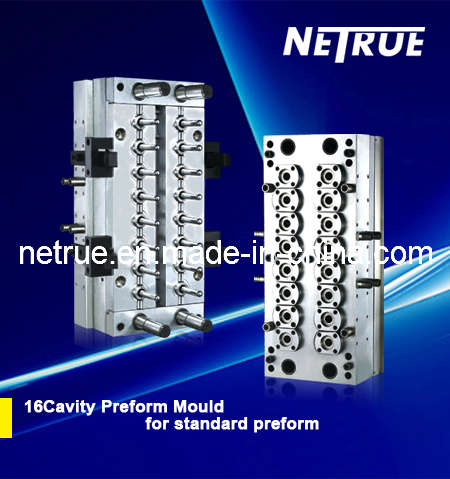

16 Cavity Preform Mould (NTP-16)

16 Cavity Preform Mould (NTP-16)
Price: Negotiable
Trade Terms: Anything
Min Order: 1set
The spec. For the above mould:
1. Steel material
-Cavity/Core Material: 2316H Steel material with heating treatment process to achieve the hardness about 46~48HRC:
-Mould Base material: P20, Chrome plate.
2. Technical specification
-The mould will adopt the hot runner with valve gate system;
-The mould base internal coating by hard chrome without rust;
-Interchangeable for core, cavity and neck ring etc;
-The preform wall thickness different less than0.08mm, the weight tolerance not more than ± 0.2g;
-Warrant: One year or two million shots;
3. Hot-runner system
-Hot runner system with PID temperature control to every cavity;
-Pneumatic actuated valve gate system tip;
4. Spare parts for free
Prod Model: NTP-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Material: Steel
Product: Household Product
Shaping Mode: Preform Mould
Alex Plastic Machine Co., Ltd. is an international modernization company with more than 30 years history of manufacturing blow molding machine. It has been engaging in researching and developing new technique of blow molding machine and has been awarded several patents. Our machine has been exported to more than 50 countries around the world, such as America, Russia, Brazil, Iran, Turkey, Indian, Thailand, Indonesia, Africa and so on.

If you are interested in our products, pls contact with us freely. We will be good at your service. Look forward to cooperating with you in near future.
