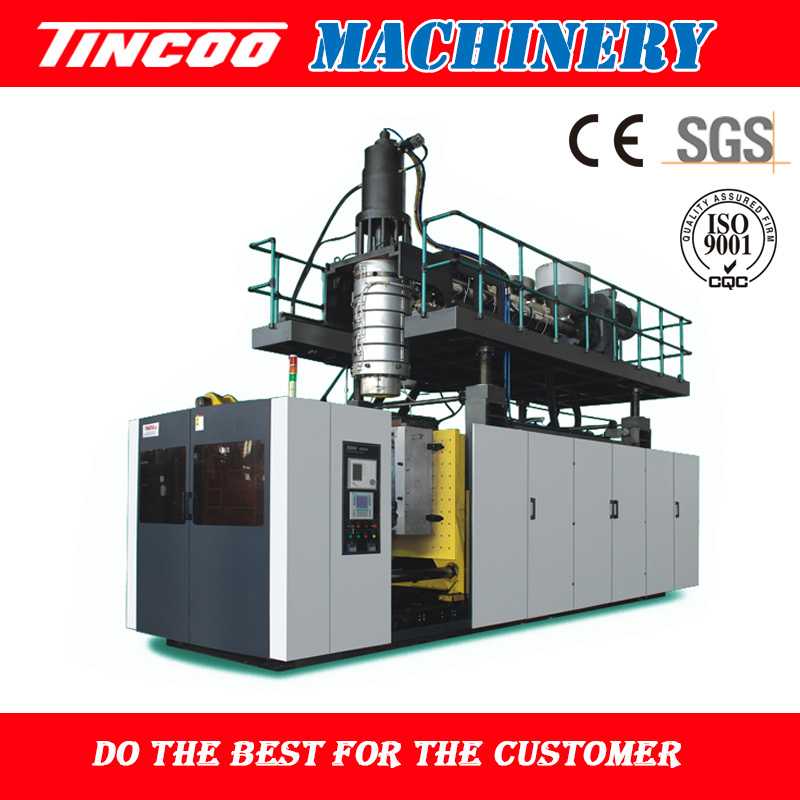

160L HDPE Blow Molding Machine

160L HDPE Blow Molding Machine
Price: US $ 50000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

The 25-160L drums, tool boxes and auto parts series consists of DHB80,DHB90,DHB100 and DHB110 etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP, and ABS can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 160L. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.

Features:
1.This series adopts new patent of two pull-rod type closing-mold device;
 double-folding accumulator head;extrusion device and product taking-out device,
 and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically   conduct to automically conduct technical parameter optimization and trouble diagnosis
 with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same
 model is the model with ration of performance to price at present.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.

Specification



DHB80

DHB90

DHB100

DHB110

Material



PE,PP

PE,PP

PE,PP

PE,PP

Max.container capacity

   L

25

50

120

160

Number of die

set

1

1

1

1

Output (dry cycle)

pcs/hr

500

400

360

300

Machine Dimension

m

4.2×2.3×3.6

4.6×2.5×3.8

5.8×2.5×4.6

6.0×2.9×4.8

Total weight

ton

12

13.8

18

20

Accumulator head



DHB80

DHB90

DHB100

DHB110

Accumulator capacity

L

5

6.6

12

16

Power of die heating

KW

18

22

25

30

Number of heating zone

zone

4

4

4

5

Die diameter

mm

300

350

450

510

Injection pressure

Mpa

8

8

8

8

Max.injection speed

Kg/sec

1.5

1.5

1.5

1.5

Clamping Unit



DHB80

DHB90

DHB100

DHB110

Clamping force

KN

210

350

500

720

platen opening stroke

mm

350-800

400-1000

500-1200

500-1500

platen size

mm

740×600

880×780

1020×1060

1300×1300

Max mould size

mm

560×630

700×960

800×1260

900×1400

Mould thickness

mm

360-420

450-510

510-650

510-700

Extruder Unit



DHB80

DHB90

DHB100

DHB110

Screw diameter

mm

80

90

100

110

Screw L/D ratio

L/D

25:1

25:1

25:1

25:1

Extruding Volume

Kg/hr

100-120

120-200

180-270

200-280

Screw rotation rate

r/min

10-86

10-86

10-86

10-86

Extruder heating power

KW

20.2

21.6

26

28

Extruder driving power

KW

30-37

37-45

45-55

55-75

Power Consumption



DHB80

DHB90

DHB100

DHB110

Oil pump power

KW

22

30

37

37

Servo motor power

KW

4

4

4

4

General assembly power

KW

94.2,101.2

114.6,122.6

137,147

154,174

Average energy consumption

KW

38,42

47,50

55,60

65,75

Air pressure

Mpa

0.7

0.7

0.7

0.7

Air consumption

m³/min

0.6

0.8

0.8

1.0

Cooling water consumption

m³/min

0.4

0.5

0.6

0.6


Prod Model: DHB-110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.

Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.

Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
