Summary:
Extruder Model: SJ65/33
Extrusion Material: PE
Output: 120-150kg/h
The color of the line: as customers' requirements
Equipment List:
1. SJ65/33 Single Screw Extruder
2. SJ25/25 Color Making Extruder
3. Mold
4. Vacuum Tank
5. Spraying Cooling Tank
6. Hot Stamp Printer
7. 2-Claws Haul-Off
8. No-dust Cutter Machine
9. Stacker
Auxiliary Machine:
Vacuum Loader
Hopper Loader
100kg/h Color Mixer
SJ 65-33 single screw extruder |
1 |
Motor |
45kw, AC frequency motor, Liduo |
2 |
Gear box |
ZLYJ-225 |
3 |
Rotating speed of screw extruder |
10~120r/min |
4 |
Screw diameter |
65mm L/D: 33:1 |
5 |
Material of screw and barrel |
38CrMoAl, with 0.5-0.7mm Nitriding depth |
6 |
Quantity of heating ring(cast aluminum) |
4×5.5KW |
7 |
Cooling method of barrel |
Air cooling, 4*0.27kw |
8 |
Mold heating |
4 units, total power:12KW |
9 |
Electric equipment |
|
|
Temperature controller |
Japan RKC or OMRON |
|
Speed adjuster |
ABB |
|
Velometer |
velocity meter from Japan Dongqi |
|
Contactor |
Schneider |
|
Other appliance |
TE |
SJ25-25 color making extruder |
1 |
Main motor power |
0.75KW |
2 |
Barrel screw |
Diameter:Φ25,L/D:25 |
3 |
Temperature controller |
Japan RKC |
4 |
Speed adjuster |
ABB |
5 |
electrical equipment |
Schneider |
6 |
Heating ring |
stainless steel heating ring |
7 |
Heating for the machine |
Three sets |
Mold |
1 |
Die body 2 sets |
One 16-63mm, the other 75-110mm
Material: 40cr |
2 |
Calibrator sleeves |
16,20,25,32,40,50,63,75,90,110mm,
1 pc for each specification,
Material: cast copper |
3 |
Die and mandrel |
16,20,25,32,40,50,63,75,90,110mm,
1 pc for each specification, , |
vacuum calibrator |
1 |
length |
5000mm |
2 |
material |
Stainless steel, 4mm |
3 |
Vacuum pump |
1*4kw=4kw YUHUAN |
4 |
Water pump |
1*4kw=4kw YUHUAN |
5 |
Vacuum degree |
0~0.06MPa(flexible) |
6 |
Water's temperature and level |
Automatical control |
7 |
Cooling method |
Water spraying cooling |
8 |
Spraying nozzle |
About 200pcs in 4 lines |
9 |
Calibration sleeve |
Brass staff |
10 |
Air proof device |
Sealing sheet, sealing rubber |
11 |
Adjusting range of forward-and-backward |
800 mm |
12 |
Adjusting range of left-and-right |
±40 mm |
cooling tank |
1 |
length |
5000mm |
2 |
material |
Stainless steel |
3 |
Cooling method |
Water spraying cooling |
4 |
Water pump |
1*4kw=4kw YUHUAN |
5 |
Sealing device at both ends |
Sealing sheet and rubber |
6 |
Spraying nozzle |
About 200pcs |
7 |
Adjusting range of forward-and-backward |
800 mm |
8 |
Adjusting range of left-and-right |
400 mm |
haul-off machine |
1 |
Haul off type |
Two claws haul-off |
2 |
Hauling belt |
Aluminum alloy clamping piece |
3 |
hauling belt width |
100mm |
4 |
Effective working length |
950mm |
5 |
Hauling speed |
0.5-12m/min |
6 |
Compacting method |
Pneumatic clamping adjusting |
7 |
Driving motor |
3 kw |
cutting machine |
1 |
Cutting method |
Dust free cutting, low noise |
2 |
Cutting diameter range |
Max. 75mm |
3 |
Cutting thickness |
Max 15mm |
4 |
Cutting motor |
1.5kw |
5 |
Driving method |
Pneumatic drive |
6 |
Pneumatic component |
WUXI CHENFENG |
7 |
Electric control |
PLC |
8 |
Mobile frame moving range |
1000mm |

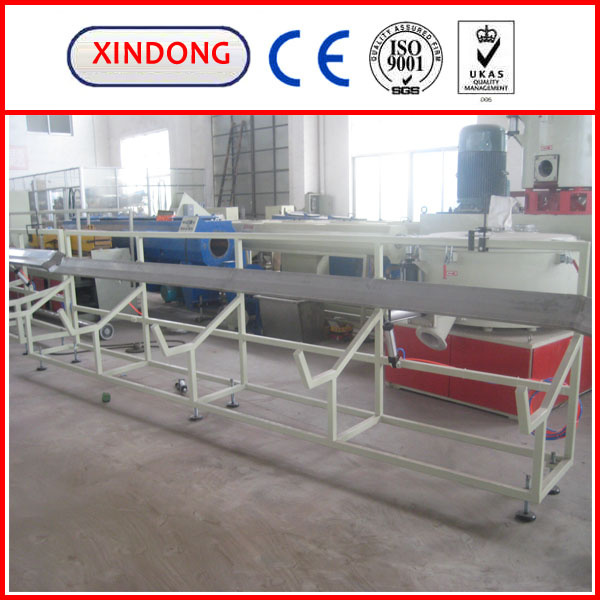

stacker |
1 |
length |
|
2 |
Control method |
4500mm |
3 |
Turning method |
PLC |
