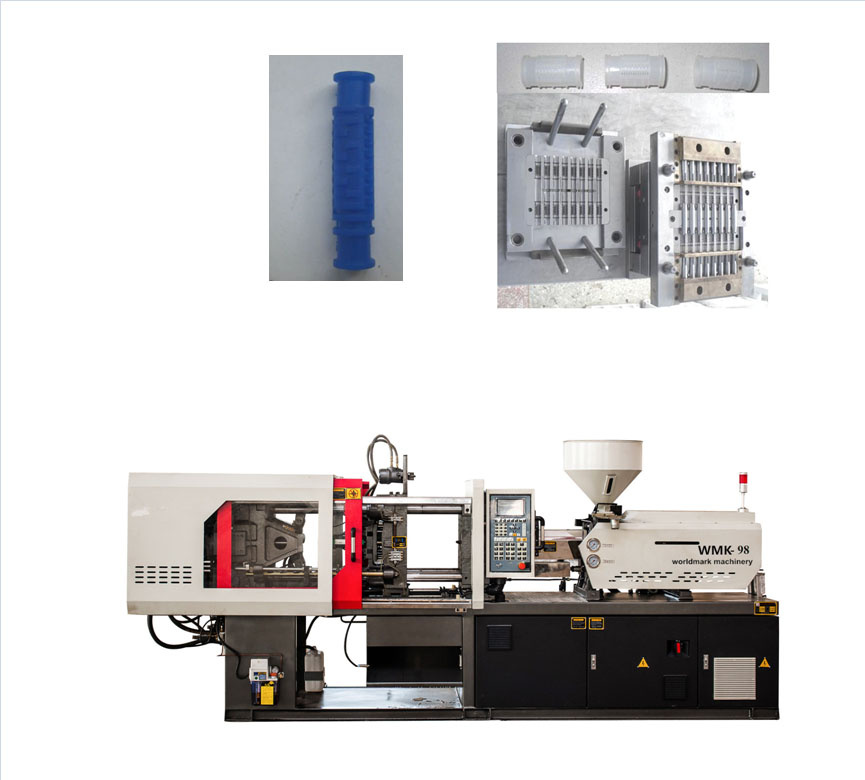

170ton Plastic Injection Molding Machine for PE Irrigation Round Dripper

Price:	US $ 22058/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Changzhou Worldmark Machinery Co., Ltd.

Showroom Product Company Profile

170ton Plastic Injection Molding Machine for PE Irrigation Round Dripper

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-170
		Unit	A	B	C
	Screw Diameter	Mm	40	45	50
	Screw L/D Ratio	L/D	22.3	20	18.1
	Short Size	Cm3	301	381	471
	Injection weight	G	274	347	428
	Injection Rate	g/s	124	157	194
	Plasticizing capacity	g/s	13.6	17.8	22.7
	Injection Pressure	Mpa	247	196	158
	Screw Speed	Rpm	0-190
CLAMPING UNIT	Clamp Force	KN	1700
	Space Between Tie Bars	mm	460*460
	Toggle Stroke	mm	450
	Max. Mold Height	mm	520
	Min. Mold Height	mm	180
	Ejector Stroke	mm	140
	Ejector Tonnage	KN	39.6
	Ejector Number	P	5
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	15
	Heater Power	Kw	9.75
	Machine Dimension(LWH)	M	4.91.41.9
	Oil Tank Capacity	L	280
	Machine Weight	T	5.9

Prod Model:	WMK-170
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force:	1700kn
Pump Motor Powder:	15kw
Machine Weight:	5.9t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Clamping Way:	Hydraulic & Mechanical
Certification:	ISO9001:2008
Type:	Injection Molding

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
