FEATURES

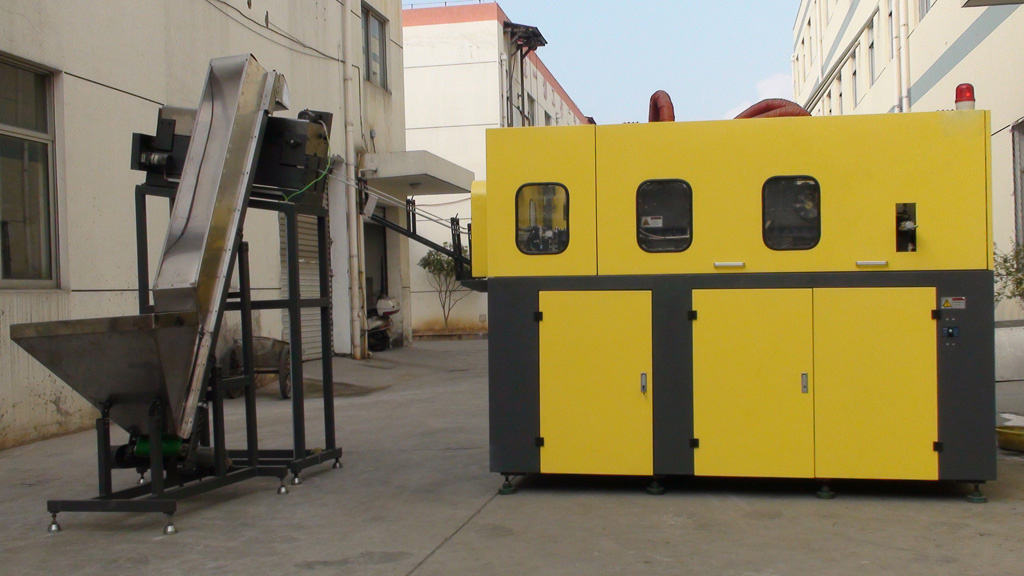

1cavity 5L Bottle Blowing Machine is applied in blowing big volume bottle with max volume 5L, it is also suitable for 2L and 5L bottle, The machine is special designed with preheater and blowing unit in one machine, with preform autoloader, automatic blowing, automatic bottle transferinng to filling machine
Technical Specification
|
MODEL |
Unit |
ZA-5L |
|
Molding |
Clamping force |
Kn |
15000 |
|
Clamping stroke |
mm |
200 |
|
Stretching stroke |
mm |
370 |
|
Bottom stroke |
mm |
30 |
|
Container |
Max.container volume |
L |
5 |
|
Max. neck diameter |
mm |
50 |
|
Max. container diameter |
mm |
180 |
|
Max. container height |
mm |
370 |
|
Number of cavities |
|
1 |
|
Theoretical output |
BPH |
600-800 |
|
Electricty system |
Installed power |
Kw |
30 |
|
Max. heating power |
Kw |
28 |
|
Compressed air system |
Operationg pressure |
Mpa |
0.7 |
|
Low pressure Air consuming |
M 3 /min |
1.6 |
|
Blowing pressure |
Mpa |
3.5 |
|
High pressure Air consuming |
M 3 /min |
2 |
|
Chilled water |
Pressure |
Mpa |
0.5-0.6 |
|
Temperature |
Centi degree |
10-12 |
|
Machine |
Flow rate |
L/ min |
80 |
|
Size(L*W*H) |
m |
2.6X1.7X1.8 |
|
Weight |
Kg |
3000 |
Zhangjiagang Zplast Machinery Co., Ltd is founded in 1998, and have twenty years manufacturing and technology developing experience in the field of turnkey project for beverage factory building, including water factory, juice factory, carbonated drink factory and oil factory.
At present, We have been manufacturing and providing the main following lines to our customers:
1.3in1 rotary monoblock filling machine for water, carbonated drink, juice and oil
2.Glass bottle rotary 3in1 filling machine
3.Fully-automatic blow molding machine for PET bottles and PE bottles
4.Semi-automatic blow molding machine for PET bottle and gallons
5.Water treatment R.O plant
6.PET preform and cap injection machine and preform mould, cap mould
7.Small linear filling machine for beginers
8.Shrink film packing machine and carton packing machine
9.Fully-automatic shrink labeling machine and adhesive labelling machine
10.Fruit juice processing equipment
11.Beverage mixing system
12.Automatic bottle unscrambler
13.CIP washing machine and UHT
14.Inkjecter printer
We provide our customer complete service, from the beginning of preform and cap injectin, bottle blowing, to washing filling capping 3in1 machine, until film and carton packing machine.And all kinds of labelling machine, inkjecter printer
Zhangjiagang Zplast Machinery Co., Ltd have been devoted itself to the manufacturing and developing, combination of beverage turnkey project for water, fruit juice, oil etc factory with high quality and efficient dedicated service, our machinery now are working properly and continuous all around the world, and creating great wealth and value for our customers.
Growing with customers and creating value for customers has been the Faith of "ZPLAST ".Continuous improvement of our technology and high efficient service strengthen our business and friend relationship with all over world.
Our factory is located in Zhangjiagang city which is near from Shanghai with beautiful scenery and convenient transportation.
Welcoming distributors and end-users around the world to cooperate with us, we look forward to receiving your inquiries in the near fulture and we will reply with high efficiency and mostly details.
