Home Mould Products 2 Arms Shuttle Rotomolding Machine

2 Arms Shuttle Rotomolding Machine

2 Arms Shuttle Rotomolding Machine
Price: US $ 50000-100000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
We provide the business of manufacturing rotational equipments and moulds and molded products.
By now, we have supplied a certain amount of rotationally equipments and moulds.

Rotational machine

1. Main features:
They are high reliable and practical, solid and high degree of automation, heavy load ability. Raising the working efficiency, the power and burner match rotationally, it obtain the best effect.

2. Make up for equipment:

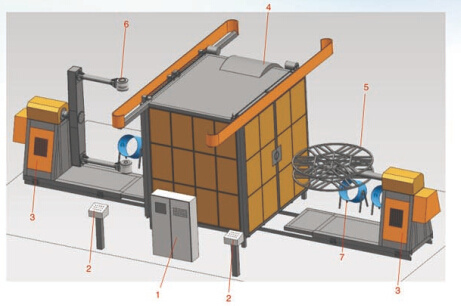

An oven, two arms, two cooling fans, and two working stations,
A combined electrical control system
Two small combined electrical control system

3. Characteristic
A solid ratchet device is used to control the direction of rotation, which is activated by an electrical motor that regulates the ratio of rotational speed and acceleration.
Each arm can be approached to time and temperature settings respectively. There is a movable operation panel at loading and discharging station.


Model
The inner diameter for  heating room    (mm)
Capacity
(kw)

Large shaft revolutions

Core shaft revolutions

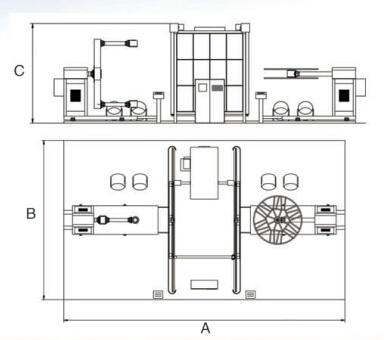

Size(mm)
          A B C
LS-2500S 2500 18 5-15 6-16 9800 6500 3800
LS-3000S 3000 25.8 4-10 5-13.5 13000 7300 4500
LS-3500S 3500 25.8 4-10 5-11.5 13500 7600 4900
LS-4000S 4000 32.4 3-8 5-11 16500 9800 5500
LS-4500S 4500 32.4 3-8 5-11 18000 10500 6000
LS-5000S 5000 40 3-8 5-11 19000 11300 6500

Prod Model: 2 arms
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Lisong
Main Machine Systerm: Rotation Arm and Motor
Our company, Ningbo Lisong Rotational Molding Equipment Manufacturing Co., Ltd. is located in the Literature of the state capital, Yuyao city, Zhejiang province, with convenient transportation access. It covers land area of 5, 000 sqm, potentially holds 50 people to work, which is one of the large scale rotational machine enterprises in Zhejiang. Presently, the company has equipped with complete set of brand-new and advanced machines exclusive for manufacturing high quality machines and moulds. The company holds the managerial idea that 'Honest, Service to customer, Quality Proves Strength, ', and tries its best to do well at any aspect from each point of procedure of manufacturing to final inspection and shipment. We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to provide you with excellent service of processing!

We mainly produce rotational machines such as shuttle machine, rock and roll machine, carrousel machine and rotational moulds which are energy conservation, environmental protection and easy to be operated and maintained. In the meantime, we also make rotational products such as traffic barriers, water barriers, warning marking barrels, water storage tanks, horizontal water tanks, salt tanks, chemical tanks, etc.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with clients around the world in the near future. We sincerely welcome you to visit our company or contact us for cooperation!
