20-110mm UPVC Pipe Extrusion Machine

20-110mm UPVC Pipe Extrusion Machine
Price: US $ 40000-100000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T

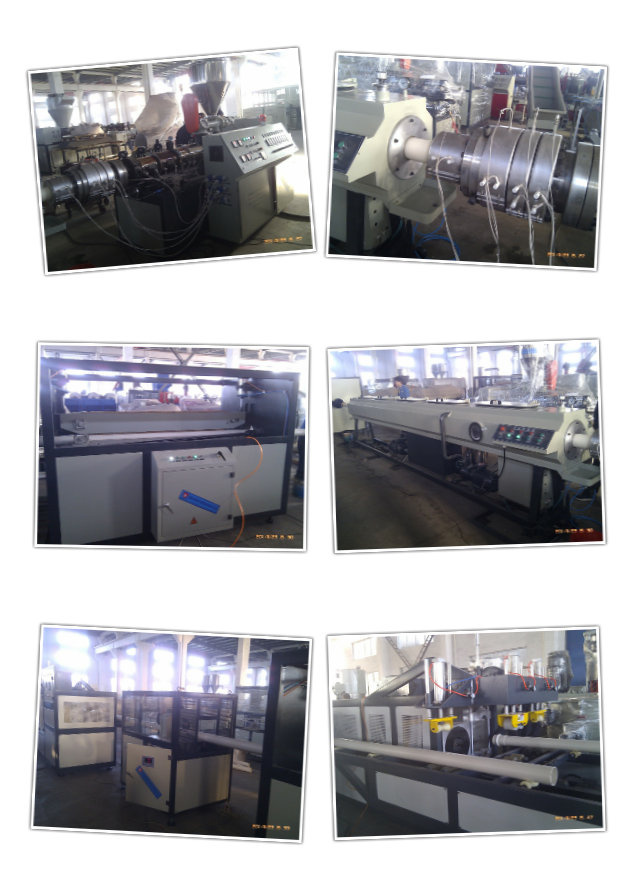

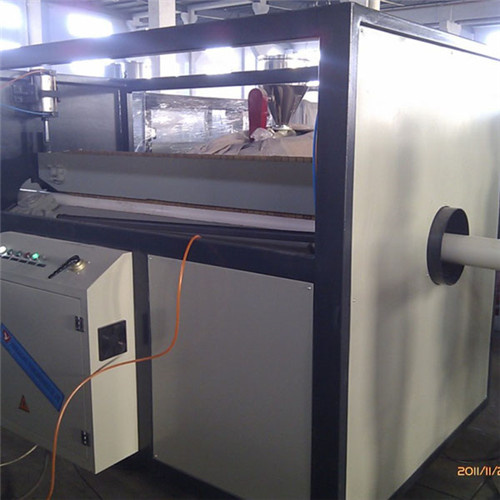

UPVC Pipe Extrusion Machine

SJSZ series plastic extruder/ extrusion machine are special equipments which can extrude and mold by using various kinds PVC powders. Equipped with different kinds of molds and auxiliary machines, it can produce various PVC pipes, profiles, sheets, plates, bars and granulation.

This kind of plastic conical double screw extruder has widely use, it is specialized for all kinds of plastic extrusion.
ItemSJSZ-45SJSZ-51SJSZ-65SJSZ-80SJSZ92
Diameter of screw(mm)45/10051/10565/13280/15692/188
Number of screw(mm)22222
Direction of screwsOutwards contra-rotating
Screw rotation speed(rpm)1-371-321-34.71-36.91-32.9
Effective length of screw(mm)9851070144018002500
Power of main engine(kw)1522375590
Barrel heating power(kw)1218243660
Production capacity(kg/h)9580-120160-250300-360500-600
Center height(mm)10001000100010001200
Net weight(kg)280032004000500010000
Dimensions(mm)(L×W×H)3620×1050×21573000×1050×22004235×1520×24504750×1550

Prod Model: SJSZ51, SJSZ55, SJSZ65, SJSZ80, SJSZ92
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name: UPVC Pipe Extrusion Machine
Machine Color: Customized
Motor Brand: Customized
Type: Pipe Extruder
Plastic Processed: PVC
Feeding Mode: One Feed
Screw: Twin-Screw
Automation: Automatic
Computerized: Computerized
Product Type: Pipe Extrusion Machine
Zhangjiagang Yatong Machinery Co., Ltd., is located in the beautiful and economic-strong city of Zhangjiagang, Jiangsu. Founded in 1998 with an area of more than 15, 000 square meters, it is a professional manufacturer in the field of plastic pipe and profile extrusion PE, PP FILM and PET recycling, etc. Our machines are serving in most part of the world, including Asia, South America, Middleast, Europe, etc. And received numerous favorable feedbacks from overseas customers.

Providing our customers with the best quality machine is our ultimate goal, thus, Yatong Machinery Co. Offers superior service through a well-trained and dedicated work force. We are ISO 9001: 2000 and CE certified.
