200 Tons C Frame Crank Type Mechanical Power Punch Press

200 Tons C Frame Crank Type Mechanical Power Punch Press
Price: US $ 1000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
200 tons c frame crank type mechanical power punch press

200 tons c frame crank type mechanical power punch press

The Machine of Whole structure
(1).C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Steel-welded frame, high rigidity and less deformation Compact. Thick plates and large columns provide
you with the stable platform you need for your demanding application.
(2).Wide body frame eliminating vibration for improved IDE life and machine, which means economicaland practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
(3).High accuracy, high efficiency, simple and convenient operation, good performance, favorable priceand best service.
Transmission control and brake systems
(1). Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88, less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
(2).Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
(3).Use double safety valve to ensure the accurate implementation of the clutch instruction.
(4).Electrical control is installed PLC, 8 group cam controller, reliable action.
(5).Electrical control adopts Omron PLC for centralized control, improved machine reliability
(6).Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronizationdetection and monitoring.
(7).Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
(8).Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.
RAM adjustment and Structure
(1).Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
(2).Slider is a cast box structure and rigid. Collapse of the sliderstyle installation of pressure overload protection device, simple structure, if the slider overload,
the fuse collapse is damaged, then protect the machine tool and die from damage.
Electrical system and the safety interlock
(1).Electrical components are imported or fromSinoforeign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
(2).Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

200 tons c frame crank type mechanical power punch press parameter

ParametersUnitJ23-6.3J23-10J23-16J23-25J23-35J23-40J23-63J23-63J23-80J23-100J23-125
Nominal pressure on sliding blockKN6310016025035040063063080010001250
Nominal pressure stroke Spmm2222.53.5667778
Slide strokemm354555658090110110120140150
Stroke frequencyFast speedtimes/170145120







Low speedmin


5550455040383835
Die heightmm150180220270290320360390440480500
Die Height Adjustmentmm303545556065808090100100
Distance between slider center and machinemm110130160200220250260310350380390
Vertical columns distancemm150180220270280340350420450560550
Slider bottom sizeL×Rmm140170200250250300300400430540540
F×Bmm120150180220220220260360360480480
Size of handle holeDiametermm3030404040505050606060
Depthmm5555606060707070757575
Size of worktableL×Rmm31037045056061070076086095010801100
F×Bmm200240300370400460480570650710720
Thickness of worktablemm3035405060658080100120130
Max. inclination angle°4535353030303020201513
Worktable heightmm750730750800815850810850850850860
SizeF×Bmm780900115013451460172118101958206022542200
L×Rmm6206658479501058133513501500171517901790
Highmm15031658191021302225248827402868329036253590
Anchor bolts distanceF×Bmm5306107809201020106011801300136015501710
L×Rmm314394450600650750850920101011301110
Power of electric motorKW0.751.11.52.245.55.57.57.51111
Weight(Approximate)KG42059510951830265036004200558080201080012035

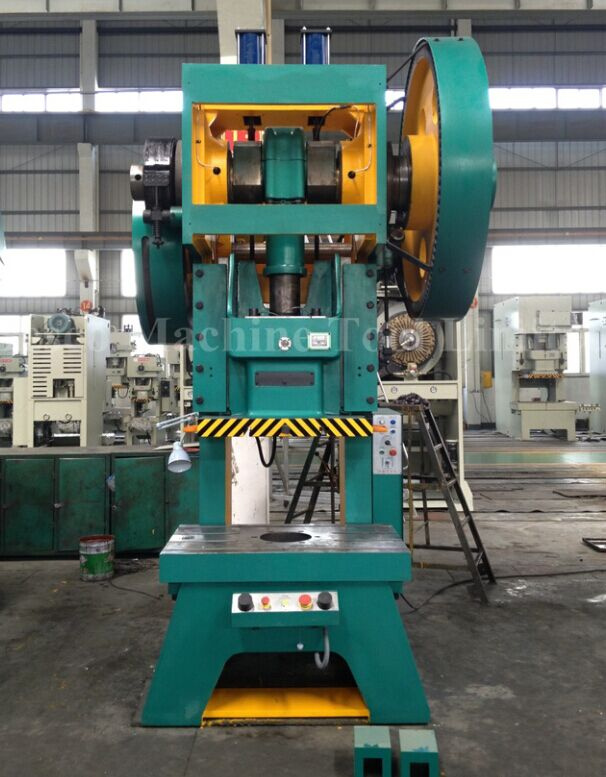

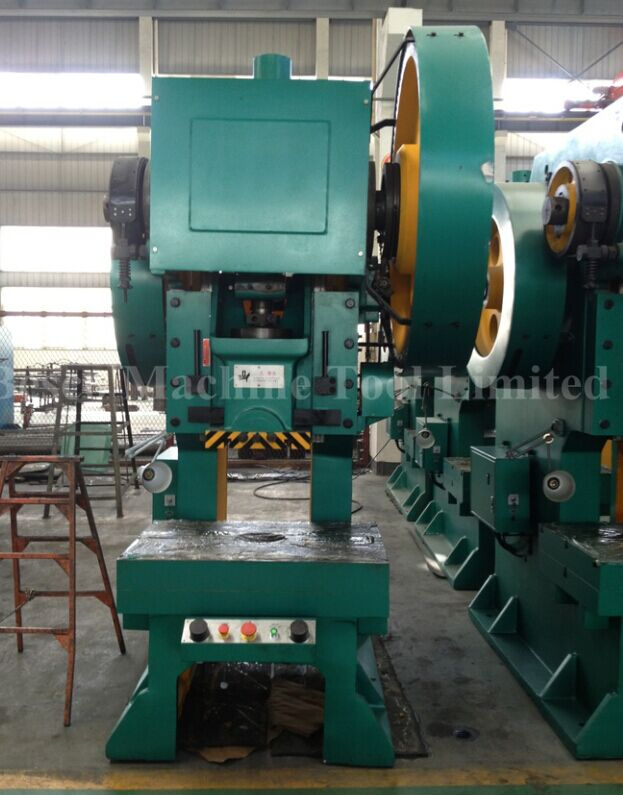

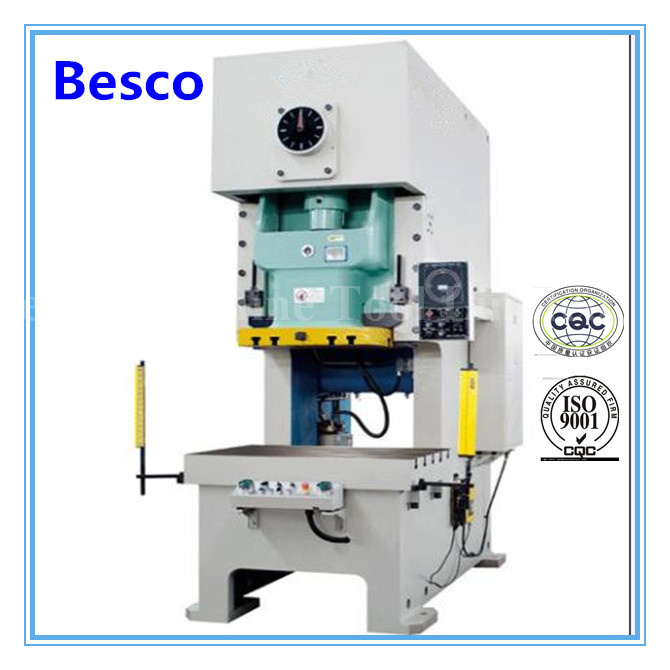

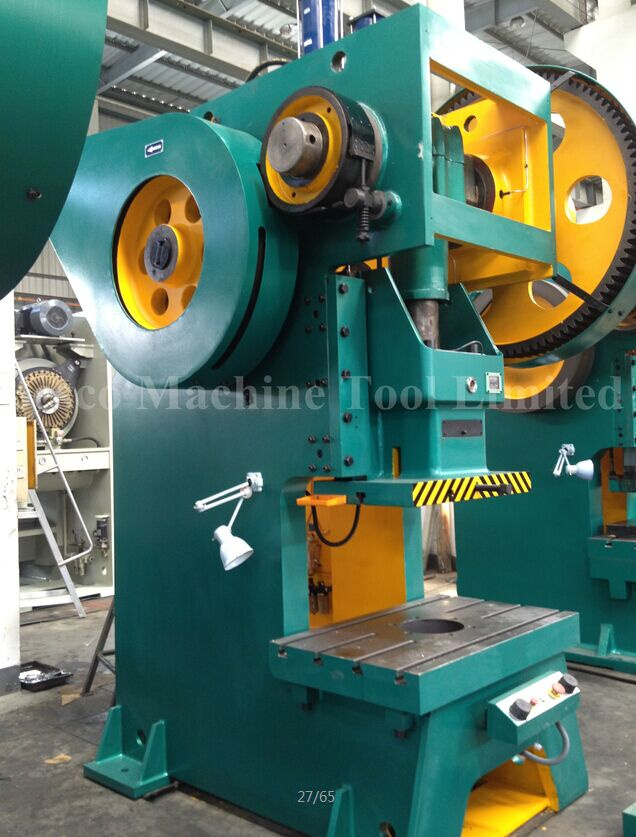

200 tons c frame crank type mechanical power punch press picture

Prod Model: J21-200t
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 630kn
Color: Customization
Warranty: All Life,1 Year Free
Power(W): as Requirement
Brand Name: Besco
Model Number: J21
CNC Or Not: Normal
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Type: General Punching Machine
Precision: Precision
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Controlling Mode: Artificial
Besco Machine Tool Limited established at 1997, located at Dongying City, Shandong Province China, is a professional machine manufacturer, our main product including press brake, shearing machine, bending machine, power press, hydraulic press, duct manufacture machine and so on.

Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.

All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include: Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
