2000ml Blowing Mould (STM-B-01)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
SHINY MOULD BLOWING MOULD SOLUTION:

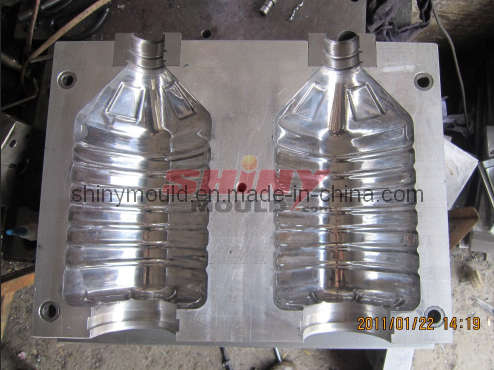

Mould description: PET 2000ml 2 cavity blowing mould
Mould steel: Aluminum for cavity and core
Mould size: 450*210*320mm
Mould life: 3 million shots
Blowing machine: 5L
Delivery time: The first testing sample will be sent to the buyer within 25 days after 3D mould drawing was confirmed.
Mould Service:
A. Shiny Tool & Mould will send weekly mould progress report and tooling schedule.
B. Shiny Tool & Mould will send the first testing sample for buyer's inspection and work out improvement requirements.
C. Shiny Tool & Mould will send the mould testing video, 2D part drawing and 3D mould design before shipment.
SHINY MOULD Spare Parts List, Steel Certificate and Heat Treatment
For the mould component subject to damage or break, sometimes it has to be designed as custom-made component that means it is not available to get replacing part from commercial market. The mould designer should put this kind of component into spare parts list. And mould maker provides customer with some sets of parts before mould leaves. For example, custom-built slider base of lifter, insert with fragile area, ejector pins of additional quantity and so on.
On the other case, some customers request spare parts of thermocouples, tip bush of hot runner system. The mould designer should realize the request when you make drawing and material order.
Select type of steel and its heat treatment or surface treatment procedure is quite important to ensure the quality and working life of a mold. According to customer request, we should select acceptable standard of steel supplier including Europe, USA, Japan, Korea and China etc. Molding components to be grained or not is also reference for steel selection. Therefore, it is good to provide steel certificate to prove the steel in the request.
For some mold components, it must have higher hardness to protect inside of mold under higher injection pressure, such parting line protection plates, angle location plates and interlock etc. For the two components that have friction each other, it required hardness difference or / and have nitride on one side to avoid galling. For example, it applies nitride on slides and lifters. All molding components which can not be grained will be of a conventional material and possibly protected with a surface treatment in order to improve the mechanical properties.
To prove the treatment that has been applied on the mold components, it can provide according certificate.
|
PROCESS: |
|
1. Quote competitive price according customer detail requirement. |
|
2. Sign agreement |
|
3. Customer T/T deposit to us to start to design mould |
|
4. Send mould drawing to customer for confirmation |
|
5. Mould design confirmed and start to make mould |
|
6. Make mould trial during tooling time(which we get agreement with customer) |
|
7. Send mould trial sample to customer forinspection, or customer come to our factory to inspect mould personally |
|
8. Customer T/T balance to us after mould confirmed |
|
9. Deliver mould after get balance |
| Prod Model: |
STM-B-01 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mould Size:: |
450*210*320mm |
| Mould Life:: |
3 million shots |
| Blowing Machine:: |
5L |
| Mould Description:: |
PET 2000ml 2 cavity blowing mould |
| Application: |
Commodity |
| Product Material: |
Plastic |
