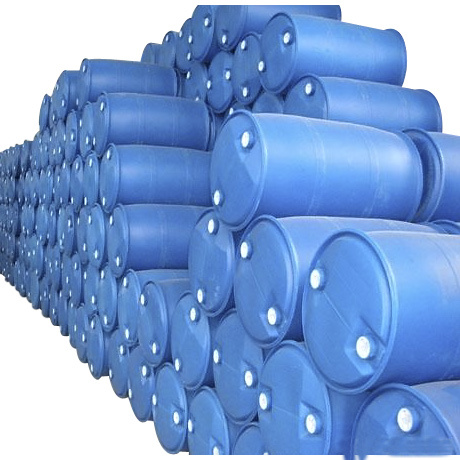

200L Big Chemical Barrel Extrusion Blow Mould
Price: |
US $ 10000-30000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Application: | Chemical barrel | Capacity: | 200L |
Cavity: | 1 Cavity | Mold Material: | Steel, Aluminum Alloy |
Product Name: | Blow Mold | Shaping Mode: | Blowing Mould |
200L 1 Cavity Aluminum Alloy Extrusion Blow Mold For PE chemical barrelQuick Detail:200L Extrusion Blow Mold1 CavityMold Material: S50C steel, or aluminum alloy Below are mould material and some technical points:1. PP/PE bottle mould adopt high grade corrosion resistance mould steel; neck insert adopt imported S136 steel. Mould with hold making device and automatic deflashing device.
2. Movable parts adopt insert structure, and heat treating to HRC50-55,to prolong using life, and easy for replacing and cavity polishing.
3. Neck part adopt imported steel, hardness reach to HRC58-60 to prolong using life. Cutting part went through precised tooling, cut material will break off from bottle mouth easily.

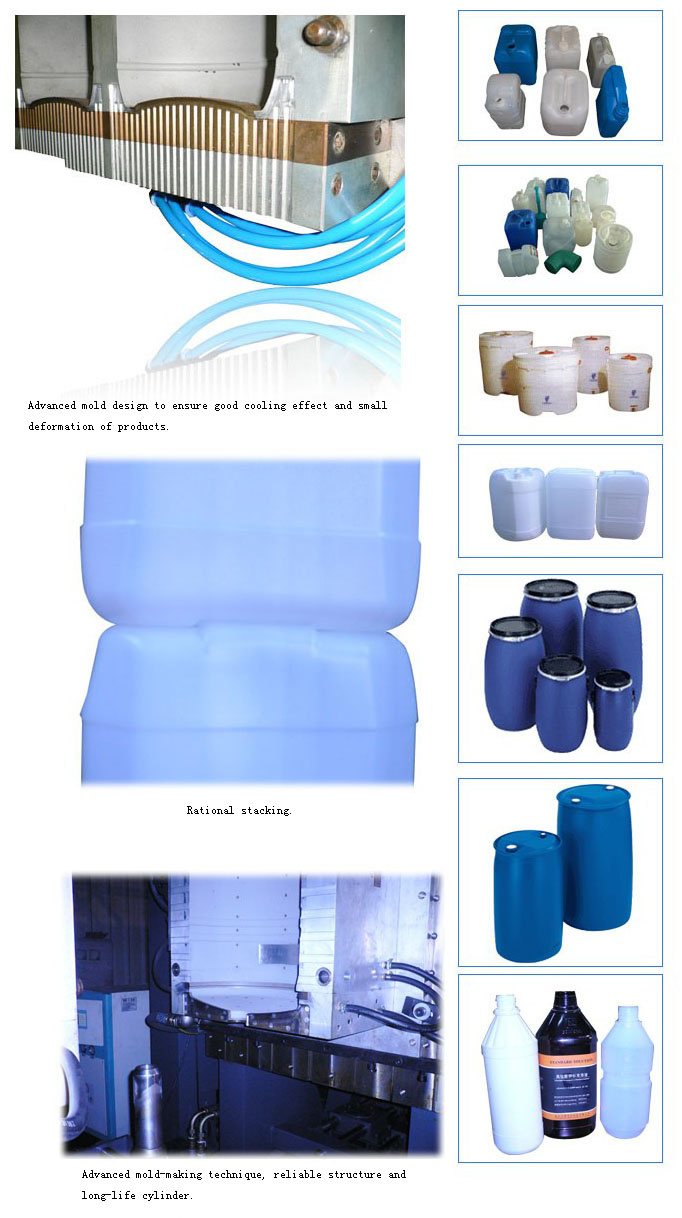

4 .Equal cooling on mould cavity, neck part, bottom part, 2 inlets and 2 outlets, high cooling performance and high production speed.
5 .Scientific mould structure design, and tooling by high precision equipments. Caring for and serving customers! We believe our full-service will save you a lot of money,time and worry.
Pre-sale service
Purpose:To help our customers to choose the best suitable machinery for particular products, and to give best solution with optimum performance-cost ratio.
Advanced software will ensure the design precision, customer can choose the design from our gallery,also we can design products for customer's particular requirement.
Designs for both normal shape and special shape products are available.
You can get optimum turkey solution suitable for your products and market.
You can get any information you want.
Modification on our machinery for customers' particular requirement is feasible.
Any of customers' question will be answered within 24 hours.
Strict test and inspection will be done for material and finished machinery, nice running status of our machinery is surely guaranteed before leaving factory.
No delay on delivery.
After-sale service
Purpose:To protect customers' investment, and to ensure continuous,stable and effective running of the purchased machinery.
Each set of our mold and machine will have a sole serial number,the test report and detailed technic information will be saved in one sole record,customer is easily to get the information, and reasonable suggestion will be given in case of any problem occurs.
A list of free spare parts will be sent along with each set of mold and machine, and further spare parts will be sold at production cost.
The detailed and easy-understanding installation instruction will be sent along with each set of mold and machine.
Engineers dispatching for locale instruction is feasible.
Every feedback will be answered within 24 hours.
Prod Model: |
FSCM-L1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Forstec |
Model: |
Fscm-L1 |
Mold Base: |
Lkm, Hasco, Dme or Your Requirement |
Mold Material: |
45#, P20, H13, 718, 1.2344, 1.2738 and So on |
Application: |
Chemical Industry |
Product Material: |
Stainless Steel |
Process Combination Type: |
Single-Process Mode |
Method For Making Preforms: |
Extrusion Type |
Extrusion Blow Molding Mould Application Type: |
Machinery Manufacturing |
Function: |
High Temperature Resistance |
Certification: |
RoHS |
Customized: |
Customized |
Condition: |
New |
Warranty: |
1 Million Modules |
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.
We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
