2012 Hot-sell PVC pipe machine
1. The machine units adopt the special designed twin screw extruder and barrel.

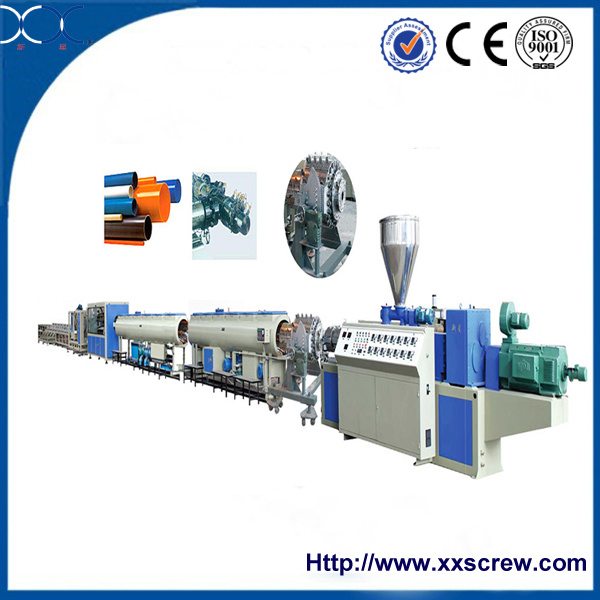

2. This production line consists of twin screw extruder, mold, vacuum forming tank, haul-off machine, cutting machine, stacker and so on.
3. This series of production line mainly used in the manufauture of the plastic PVC pipe with various tube diameters.
4. The screw of the host extruder adopt the oil cooling system, barrel temperature control though the air cooling and ring heater.
5. The host extruder using the electrical control system, ABB speed governor, Japanese RKC temperature controller, SIMENS contactor and so on.
6. Our company may allocate the special installation for the manufacture of the inner wall spiral coil and coreply blister tube set according to the clients requirements.
7. The machine units can produce the pipe scope: 20-630mm, and the machine output can reached between: 120-800kg/h.
Type | GF-160 | GF-250 | GF-400 | GF-630 |
Productive tubing scope(mm) | Φ 16-Φ 160 | Φ 110-Φ 250 | Φ 200-Φ 400 | Φ 400-Φ 630 |
Vacuum foaming length(mm) | 6000 | 6000 | 6000 | 6000 |
Traction Speed(m/min) | 1-32/1-16 | 0.4-4/0.7-7 | 0.1-1/0.2-2 | 0.1-1/0.2-2 |
Cutting method | circular saw blade | surround cut | surround cut | surround cut |
Total power(kw) | 85(70) | 120 | 155 | 200 |
Production line length(kw) | 25 | 32 | 36 | 52 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
