Rubber Belt Plate Vulcanizing Machine Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. There are two kinds of heating method for hot platen, steam heating and electric heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty.
2. If there is problem, we will give feedback within 24hours.

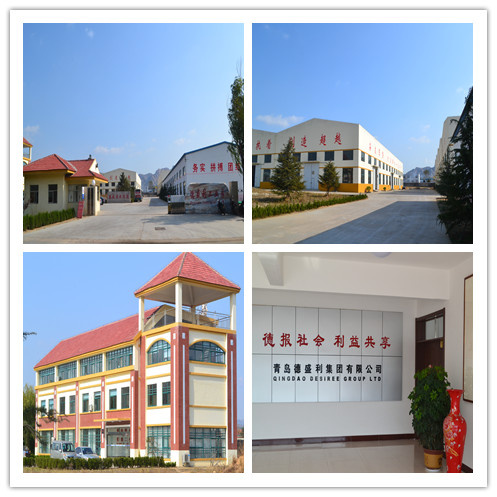

Company Show:

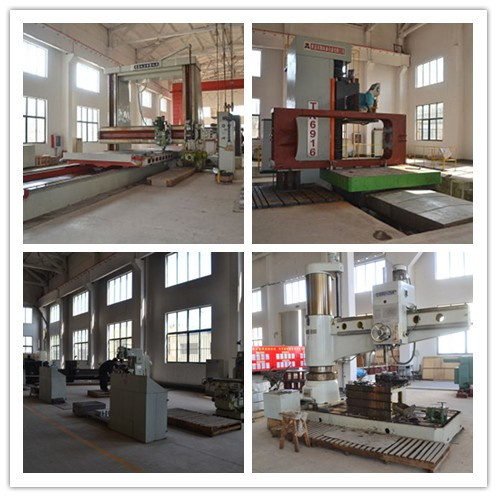

Workshop Show:
Certificate Show:
If you have any question about our products, please feel free to contact with me.
Warmly welcome to visit our factory!
Item |
Description |
Remarks |
Model No. |
XLB-Q/D1200x1200x2 |
|
Total pressure(kN) |
3150 |
|
Max. working pressure of working oil(MPa) |
16 |
|
Max. stroke of piston(mm) |
700 |
Can be designed as your requirement. |
Piston diameter(mm) |
500 |
|
Hot platen size(mm) |
1200x1200 |
|
Layer quantity |
2 |
|
Hot platen clearance (mm) |
350 |
Can be designed as your requirement. |
Heating temperature( °C) |
140 to 160 |
|
Motor power(kW) |
7.5 |
|
Steam pressure(MPa) |
0.6 to 0.8 |
XLB-Q1200x1200x2 heated by steam |
Electrical heating power of each hot platen(kW) |
24.1 |
XLB-D1200x1200x2 heated by electric pipe |
Total weight(kg) |
8000 |
|
