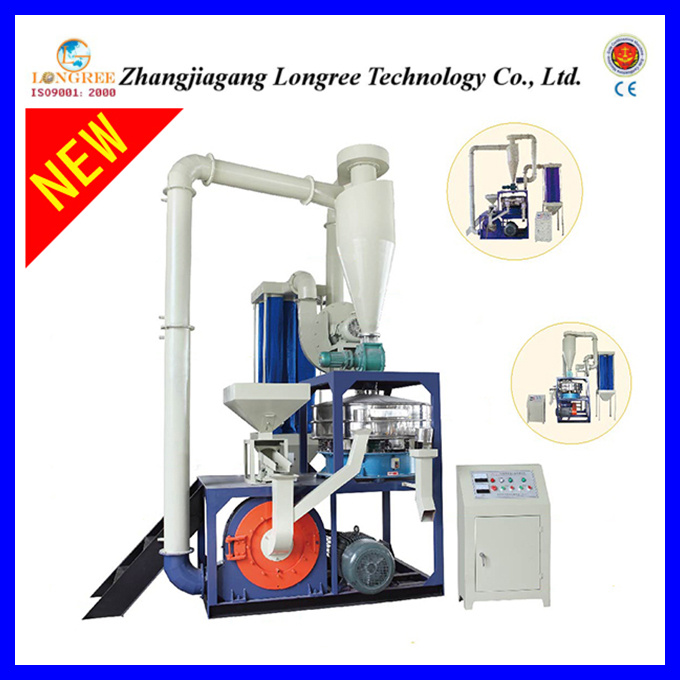

2015 Plastic PVC/PE/LDPE/LLDPE Powder Pulverizer, Plastic Grinder (MF-600)

2015 Plastic PVC/PE/LDPE/LLDPE Powder Pulverizer, Plastic Grinder (MF-600)
Price: US $ 8000-20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Brief Introdution for Longree Technolgoy Pulverizer


------Features and description
1.Low power consumption,high yield.
2.Simple structure and easy installation.
3.Host with the wind ,water circulation cooling system.
4.This Plastic pulverizer can deal with PE,LLDPE,LDPE,ABS,EVA etc.
PVC recycling or new material.
5.We will arrange a test before shipping to make sure everything is fine , also take a video for you check before final payment.

-----Our support and after-sale service

1.We supply Plastic pulverizer technical support,such as engineers,drawings,and instruction manual.
2.We send one or more than one engineers
to client for installing and adjust Plastic pulverizer.
3.Buyer also can sent workers to our workshop
for learning how to conduct Plastic pulverizer.
-----High praise From customers all over the world !!!!
1.Mr.Albert from Romania:we use this Plastic pulverizer for crushing recycled LLDPE pellets,it's a reliable equipment.
2.Ms.Sandra from Panama:we are a rotational moulding,so we buy Plastic pulverizer to deal with LLDPE,our requests is 300kg/h with 40mesh. also good cooling system. We buy this machine one year ago and now it's working well.
3.More information will be supplyed after sending a inquiry to us.

-----Pictures for reference

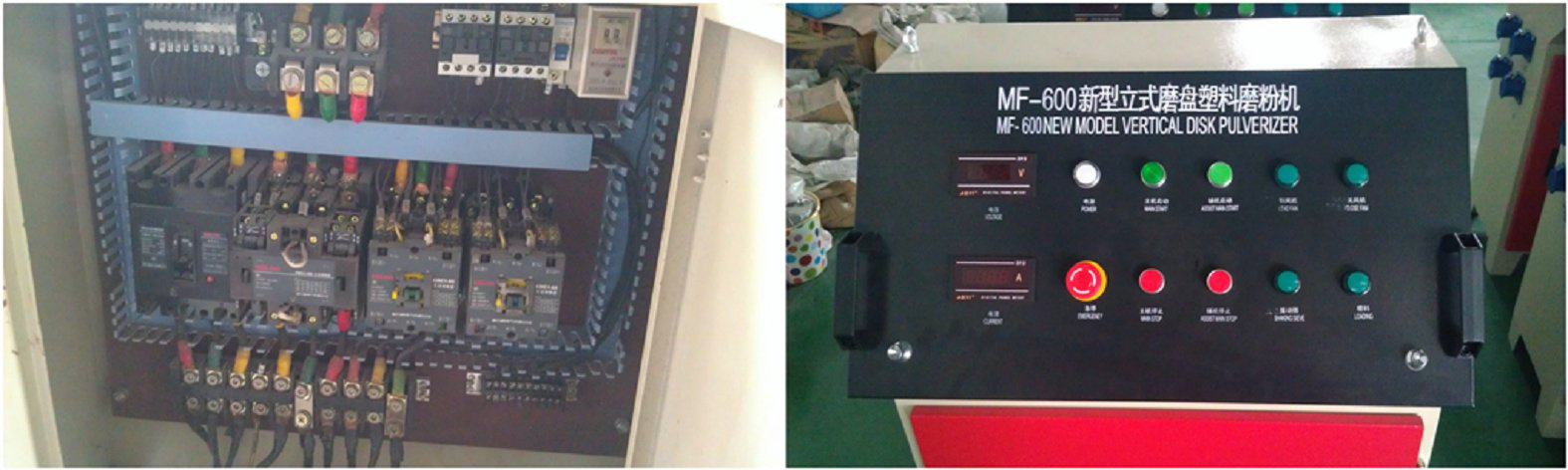

Mark: This picture shows the control pannel of the pulverizer,as you can see that emergency button is necessary for usual production, Chinese and English two languages, one for our worker,and another for you .

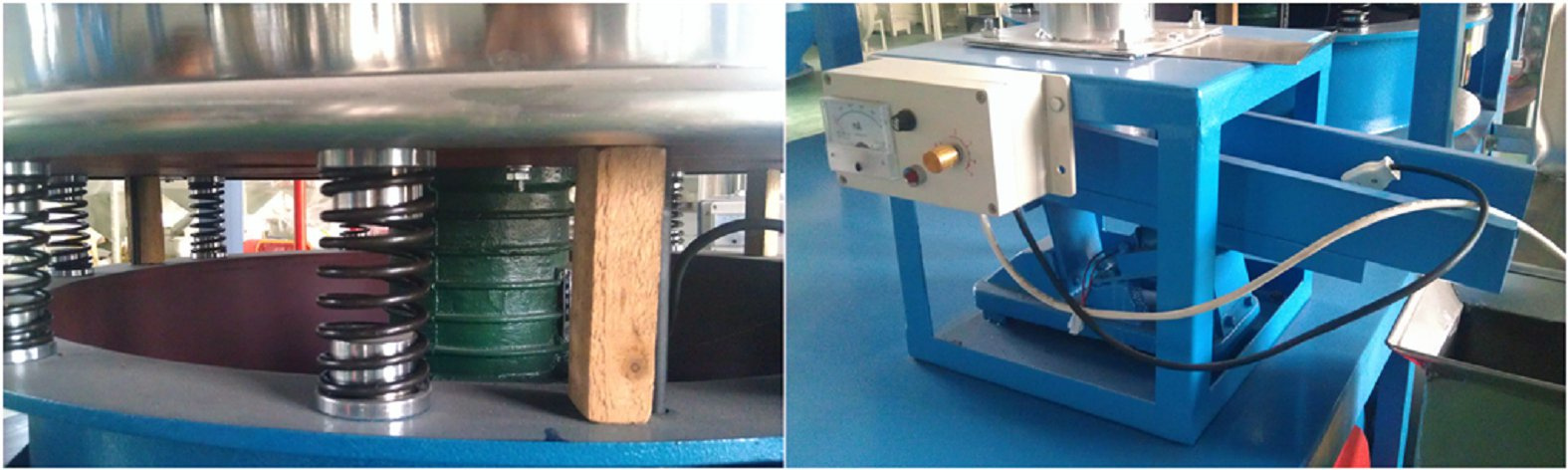

Mark: These two parts are feeding system for pulverizer, we equip powerful vibrating screen to insure feeding sable, in the feeding mouth, we add a magnet to keep some metal material from going into the pulverizing room.

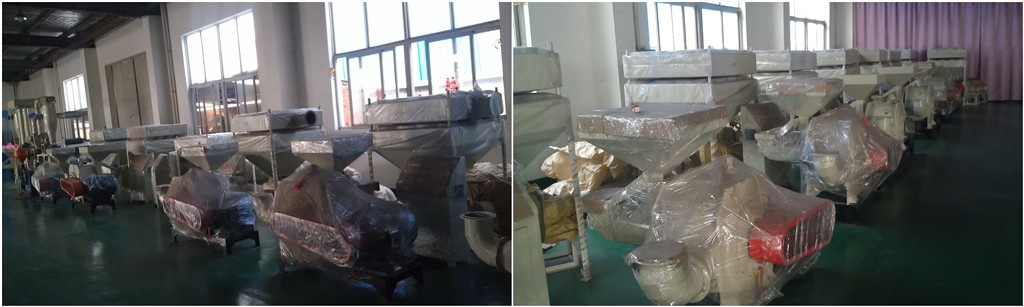

Mark: in our store room, we always keep some common main pulverizer parts,so our regular and new customer will get them fast without longer waiting when they have new order.



Item Main parameter
1. MF-600 Plastic pulverizer(NO CE)1 set
Diameter of milling blade610mm+/-2mm
Motor power 55kw
Fan power11kw
Vibrating sieve1.5kw
CapacityAbout 80-100kg/h(for HDPE)
Fineness of finished HDPE powder100mesh≈0.15mm
Hardness of the bladeMore than HRC58
Rotation speed of blade2,950r/min
Cooling systemRecycling and cooling water
Applicaple materialHDPE,PE,LLDPE,ABS,PS,EVA etc
Dimension(LxWxH)1,900x1,700x3,900mm
Weight 2,800kg

2. DJ-300 Vaccum Loader(NO CE)1 set(for loading the pellets automatically)
Motor power 1.5kw
Feeding Capacity300kg/h
Feeding height 4m
Diameter of feeding pipe40mm
Overall dimension(LxWxH)500x400x600mm
Weight 60kg
Power supply380V,3P,50Hz

Prod Model: MF-600/500
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Plastic Pulverizer: Mf-600 Pulverizer
Diameter Of Milling Blade: 610mm+/-2mm
Motor Power: 55kw
Fan Power: 11kw
Vibrating Sieve: 1.5kw
Applicaple Material: HDPE, PE, LLDPE, ABS, PS, EVA etc
Rotation Speed Of Blade: 2, 950r/Min
Fineness Of Finished HDPE Powder: 100mesh&Asymp; 0.15mm
Hardness Of The Blade: More Than Hrc58
Cooling System: Recycling and Cooling Water
Knife Classification: Flat Knife Crusher
Certification: UL
Structure: Top Feed
Knife Roll: Solid Knife Roller
Automation: Automatic
Computerized: Computerized
Type: plastic pulverizer
Raw Material: PE PP LDPE LLDPE PVC
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.

Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.

In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).

We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.

We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.

Our main products are as follows:

1 Extruder

2 Pipe production line

3 Profile production line

4 Sheet production line

5 Board production line

6 WPC production line

7 Granulation line

8 Recycling line

9 Mixer

10 Auxiliary machine

Welcome you to visit our Longree Group!
