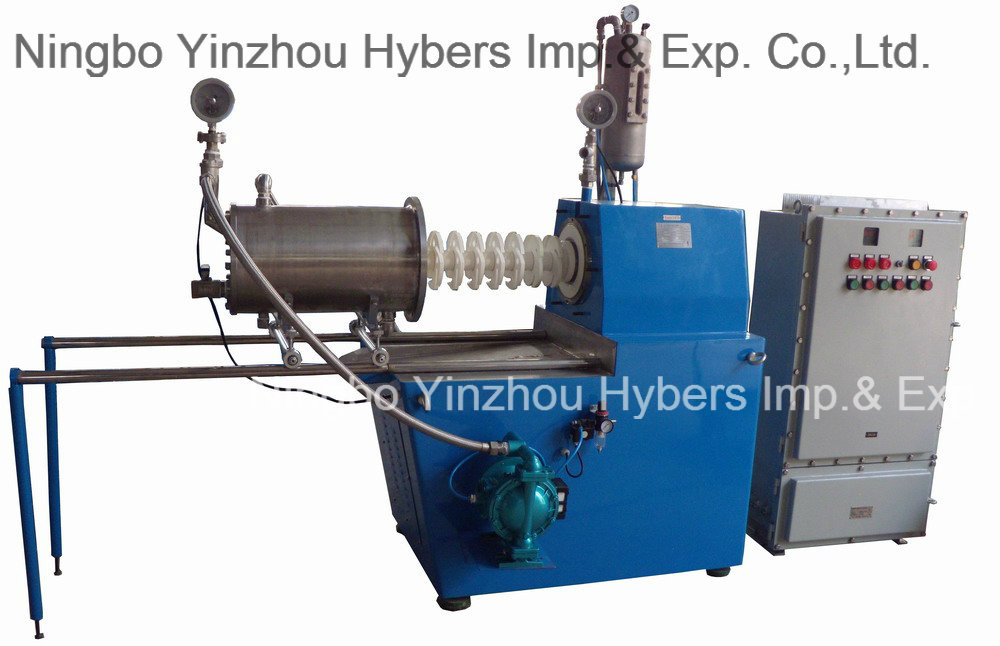

"ZM20SB5511-E" is the 20 liters horizontal discs type bead mill with totally CERAMIC inner grinding chamber, grinding discs etc. parts contacted with raw materials..
Specification
1) 50L
2) Double mechanical seal
3) Ex proof
4) Ceramic for inner grinding chamber and grinding discs
5) Double diaphragm fluid transfer pump
6) With AC drive controls the grinding shaft rotary speeds
7) Gap separator. Suitable for 0.1-0.2mm Yttria stabilized zirconia beads (95%ZrO2)
8) Chilling water jacket
Advantage:
Ceramic parts can make sure no pollution during production.
There are 0.3L&1.4L horizontal bead mills for lab testing and samples production.
5L, 15L, 20L, 30L, 50L, 60L, 100L, 200L, 250L volumes bead mills with discs type inside grinding chamber and pins design inside the grinding chamber.
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, tungsten carbide, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
|
Effective grinding chamber volume: |
20L |
|
Main motor power: |
22kW |
|
Grinding shaft rotary speed |
0-1200r/min |
|
Adjustable range of materials flow |
0-10L/min |
|
Max cooling water consumption: |
2t/hr |
Estimated productivity
(it is various depending on different formulations) |
50-500kg/hr |
|
Best grinding particle size |
nano grinding |
|
Dimension (L*W*H) |
1670*1050*1845 |
|
Net weight |
1000kgs |
|
ATTN: the technical data might be changed based on customized orders. please contact with us to get exact technical data. |
