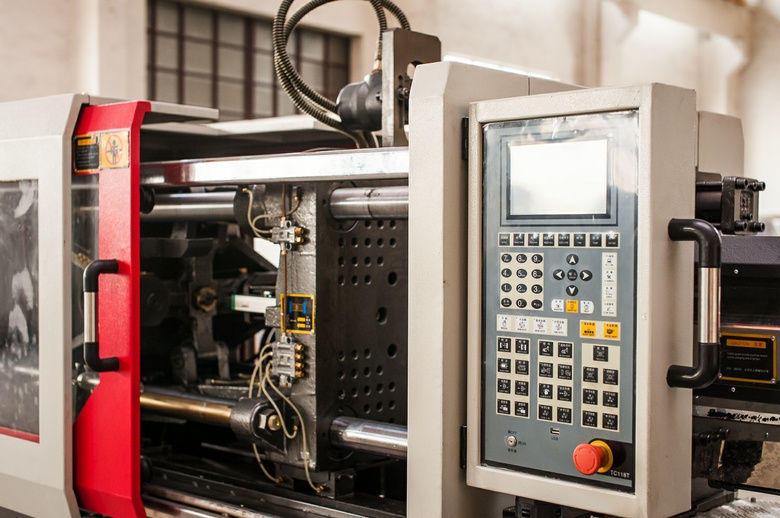

2200 Ton Plastic Injection Molding Machine

Name: 2200 Ton Plastic Injection Molding Machine
Brand: themouldinfo.com
SKU: 687040382
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	US $ 397000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Changzhou Worldmark Machinery Co., Ltd.

Showroom Product Company Profile

2200 Ton Plastic Injection Molding Machine-auto

Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	WMK-2200
		Unit		A	B	C
	Screw Diameter	Mm		140	150	160
	Screw L/D Ratio	L/D		24	22.4	21
	Short Size	Cm3		10462	12010	13665
	Injection weight	G		9887	11349	12913
	Injection weight	oz		321.4	369	419.8
	Injection Pressure	Mpa		163	142	125
	Screw Speed	Rpm	80
CLAMPING UNIT	Clamp Force	KN	22000
	Space Between Tie Bars	mm	1650*1650
	Toggle Stroke	mm	1650
	Max. Mold Height	mm	1620
	Min. Mold Height	mm	800
	Ejector Stroke	mm	420
	Ejector Tonnage	KN	490

OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	45+45+55
	Heater Power	Kw	110.7
	Oil tank capacity	L	3500
	Machine Dimension(LWH)	M	15.53.53.7
	Machine Weight	T	145

Prod Model:	WMK-2200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force:	22000kn
Max. Pump Pressure:	16mpa
Machine Dimension(LWH):	15.53.53.7m
Machine Weight:	145t
Automation:	Automatic
Structure:	Horizontal
Computerized:	Computerized
Plastic Type:	Thermoplastic
Type:	Injection Molding
