Clamping Force: | 228tons | Application: | Household, Industrial, Auto |
Components: | Vickers, Schneider, Dofluid | Control Method: | Automatic, Fully-automatic |
Feature: | Energy Saving | Material: | PE, PVC, A.B.S, Plastic |
Mold Cavities: | 10 Cavities, 12 Cavities, 4 Cavities, 6 Cavities, 8 Cavities | Working Principle: | High Speed |
Clamping Force: | 228tons |
|
|

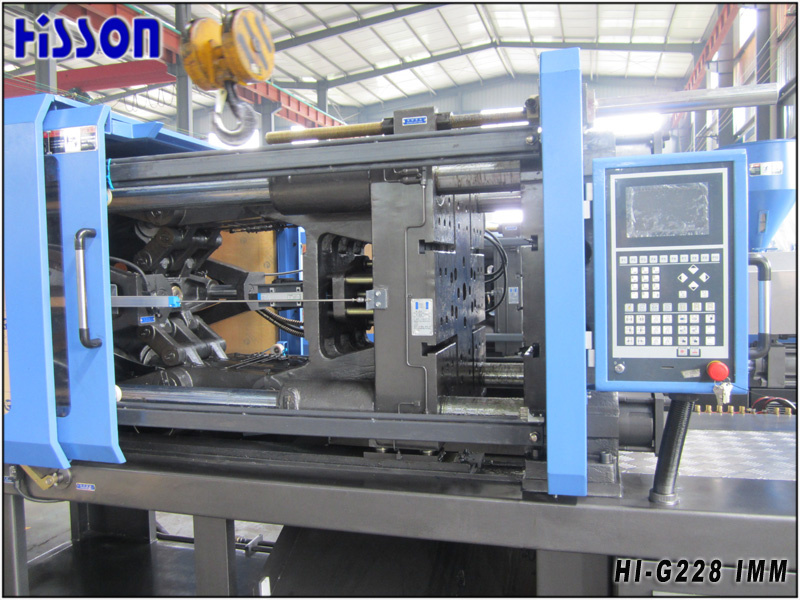

Hydraulic Servo Energy Saving Injection Molding Machine For Industrial
Quick Detail:
HI-G228 hydraulic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc. It is mainly used to produce small&middle industrial parts, household appliances and other plastic products. It is with clamping force 228tons, there are three available screws, the corresponding real shot weight 340g, 410g, 490g.
Description:
HI-G228 Hydraulic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Hydraulic Injection Molding Machine is composed of direction valve, proportional pressure valve, proportional direction valve, overfall valve, unilateral valve & pump, and hydraulic motor etc, these components compose the electric-hydraulic proportional loading feedback circuit, which is with fast respond, reliable running, stable action, energy saving, easy to operate, easy to maintain and other characteristics.
Applications:
HI-G228 General purpose Injection Molding Machine is for small & middle industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-490g, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities, 24 Cavities
Specifications:
HI-G228 Technical Parameters
HI-G228 | Optional Parameters |
TECHNICAL PARAMETER TABLE | Unit | A | B | C |
INJECTION UNIT | SCREW DIAMETER | mm | 50 | 55 | 60 |
SCREW L/D RATIO | L/D | 22 | 20 | 18.3 |
SHOT VOLUME(THEORETICAL) | cm3 | 442 | 535 | 636 |
INJECTION WEIGHT(PS) | g | 402 | 487 | 579 |
INJECTION PRESSURE | Mpa | 212 | 175 | 147 |
INJECTION RATE | g/s | 189 | 229 | 273 |
PLASTICIZING CAPACITY | g/s | 32 | 41 | 49 |
SCREW SPEED | rpm | 0-180 |

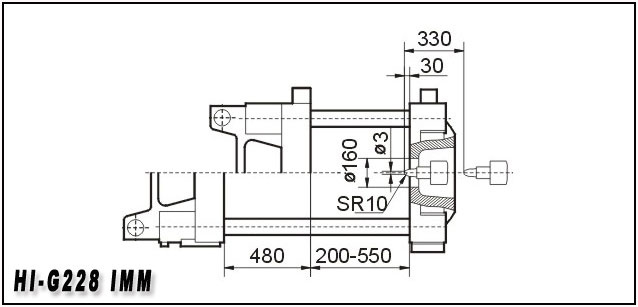

CLAMPING UNIT | CLAMP FORCE | kN | 2280 |
OPEN STROKE | mm | 480 |
MAX.MOULD HEIGHT | mm | 550 |
MIN.MOULD HEIGHT | mm | 200 |

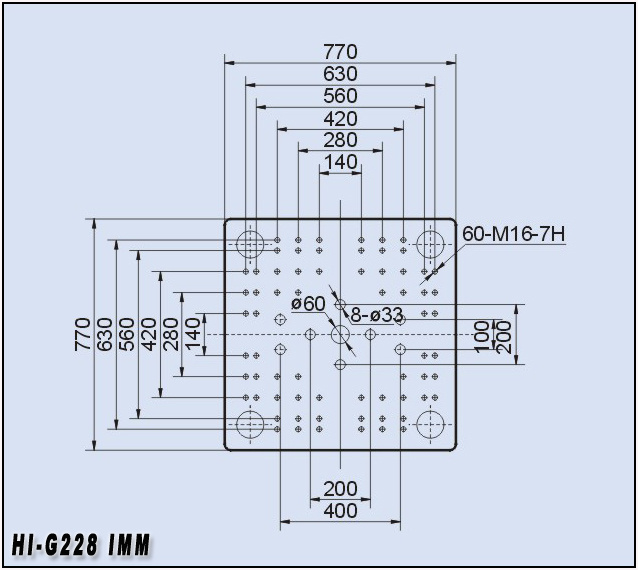

SPACE BETWEEN TIE BARS | mm | 510×510 (W×H) |
EJECTOR FORCE | KN | 65 |
EJECTOR STROKE | mm | 140 |
General | EJECTOR NUMBER | n | 9 |
PUMP PRESSURE | KW | 16 |
PUMP MOTOR POWER | KW | 22 |
HEATING POWER | KW | 12.5 |
MACHINE DIMENSION | m | 6.0×1.4×2.2(L×W×H) |
MACHINE WEIGHT | T | 6.9 |
Hopper Capacity | L | 50 |
Oil Tank Capacity | L | 320 |
Competitive Advantage:
1. The machine equipped with hydraulic protection
2. The machine equipped with double Hydraulic pulling device
3. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
4. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
5. Heaters adopt ceramic, the using life is double than stainless steel.
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
Machine main components adopt world famous brand, e.g.:
? Controller:TECHMATION (TAIWAN),
? Low voltage contactor: SCHNEIDER(FRANCE),
? Low voltage air switch: SCHNEIDER(FRANCE),
? Proportional Valve: Dofluid HNC(TAIWAN)
? Oil pump: VICKERS(USA)
? Directional Valve: VICKERS(USA)
? Induction travel switch: OMORON (JAPAN)
? Inductor potentiometer: FORT(USA)
