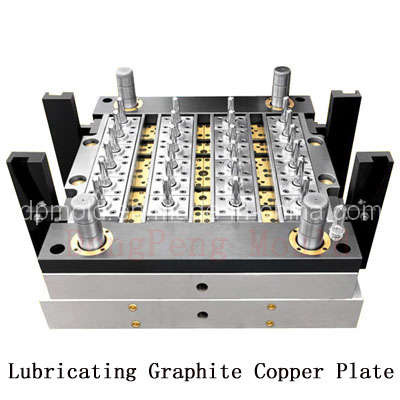

24 cavity preform mold:
Lubricating Graphite Copper Plate of Pneumatic Valve(Shut-off Nozzle) Mould with Hot Runner System.
Lubricated by graphite, less mould wear.
Slide Block is made of imported mould steel P20, with good hardness and long life time.
Core and Neck are made of imported mould steel S136, with good hardness and long life time.
mold structure |
PneumaticValve(without tail) |
Short Tail Self-lock |
Long Tail Self-lock |
Common Ground |
1 Adopt Double-Conicity Self-lock Structure, more precise and easy to adjust perform wall thickness
2Adopt advanced Hot Runner System, more precise |
Difference |
Labor Porce |
Without manual cut |
Without manual cut |
Need manual cut |
Mould Steel |
Imported mould steel for critical parts, with good hardness, high quality and long life time |
Domestic mould steel with good hardness |
Slide Block |
Use Lubricating Graphlte Copper Plate, with good corrosion resistance and friction resistance |
Normal lubricating |
Gate |
One temperature control meter controls one gate, more precise |
One temperature control meter controls two gate |
Cycle Time |
Short cycle time |
Long cycle time |
Life Time |
5, 000, 000shots |
2, 000, 000 shots |
TaiZhou HuangYan DongPeng Mold Factory located in famous mold hometown-HuangYan, Which is a professional manufacturer of PET Preform Mold, Cap Mold and Blow Mold. By researching and innovating consistently in PET Preform Mold for many years, our mold is popular home and abroad. As a result, we become an outstanding one in the industry.
We have a high-class and professional technical team, advanced mold equipment, CAD/CAM/CAE system and CNC technique. All of these ensure the high quality of mold. At the meantime, we try our best to offer better service. Not only from designing to manufacturing, but also from testing to after sales, we will serve continously as a serious promise.
We stick to "customer foremost, pursue win-win" as our corporate purposes. As we all know, no customer, there will be no future. So we pay attention to evry details that customers request, and do our best to implement. Urgency, and think in the way customers want to. We pledge to meet all the needs of customers with excellent quality and sincere service.
Because of professional, so fine; Because of zealousness, so excellence. We will unswervingly follow the road specialization, and build brand of "DongPeng" earnestly.
