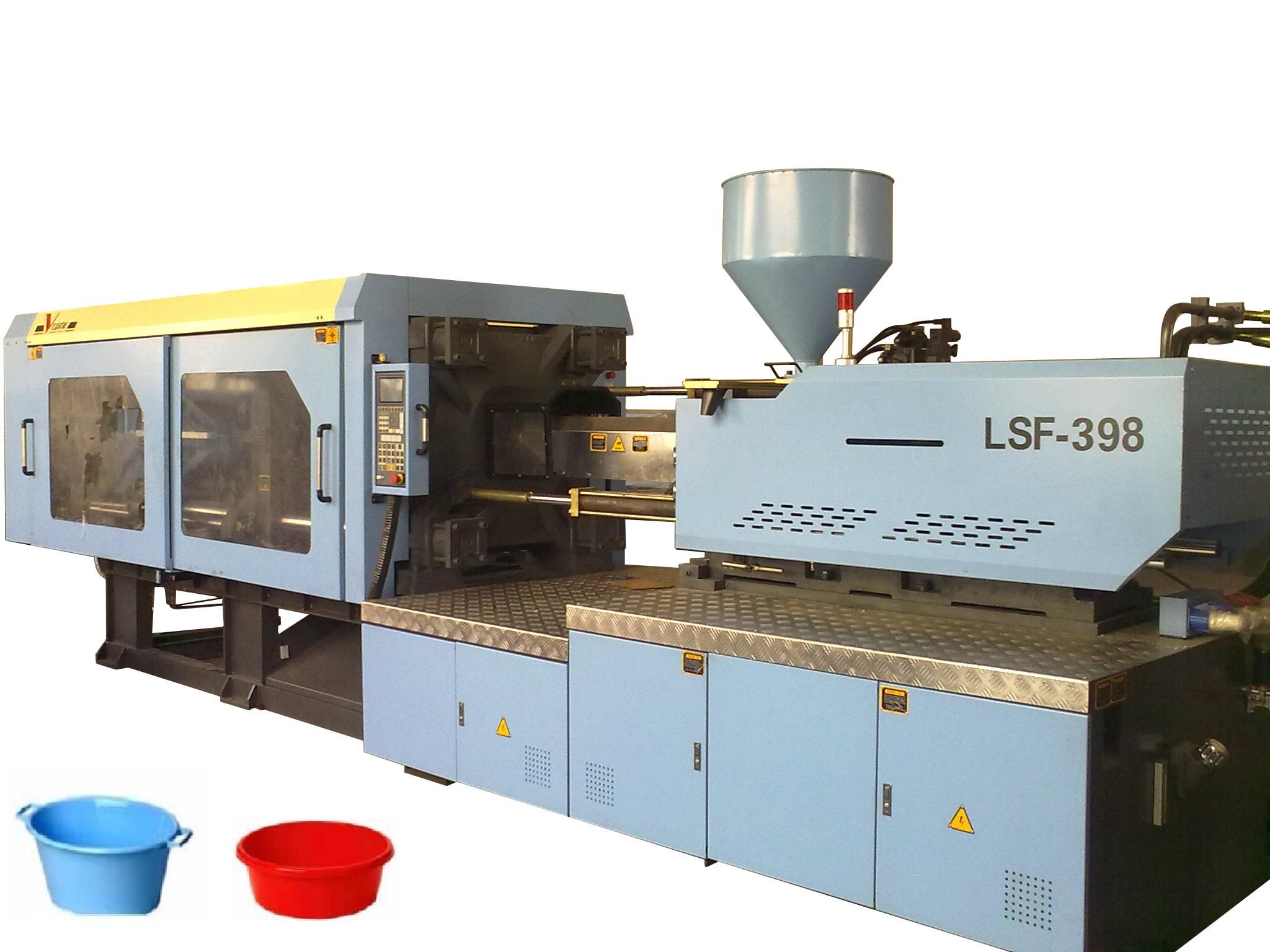

250 Ton Injection Moulding Machine
| Price: |
US $ 28265/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.
Some of the important features:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
Delivery time:30-60 days
Port of dispatch: Shanghai
|
LSF258
|
A
|
B
|
C
|
Injection
unit
|
Screw diameter
|
mm
|
50
|
55
|
60
|
Screw L/D ratio
|
L/D
|
24
|
21.8
|
20
|
Theoretical shot size
|
cm 3
|
504
|
610
|
726
|
Injection weight
|
g
|
459
|
555
|
661
|
oz
|
16.1
|
19.4
|
23.1
|
Injection pressure
|
Mpa
|
223
|
184
|
155
|
Injection rate
|
g/s
|
121
|
146
|
174
|
Injection stroke
|
mm
|
257
|
Screw speed
|
rp.m
|
0~190
|
Plasticizing capacity
|
g/s
|
32
|
41
|
49
|
Clamp
unit
|
Clamp force
|
KN
|
2380
|
Movable platen stroke
|
mm
|
505
|
Space between tie bars
|
mm
|
560*530
|
Mold thickness
|
mm
|
200~560
|
Ejector force
|
KN
|
62
|
Ejector stroke
|
mm
|
150
|
Ejector number
|
n
|
9
|
Other
unit
|
Heater power
|
KW
|
16
|
pump motor power
|
KW
|
22
|
Oil pump pressure
|
Mpa
|
16
|
Machine dimension
|
mm
|
5.3*1.5*1.95
|
Machine weight
|
t
|
7.1
|
Hopper capacity
|
Kg
|
50
|
Oil tank capacity
|
L
|
400
|
| Prod Model: |
LSF258 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
Custome |
| Type: |
Injection Blow Molding |
| Automation: |
Automatic |
| Structure: |
Horizontal |
| Computerized: |
Computerized |
| Plastic Type: |
Thermoplastic |
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.
Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.
With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.
Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
