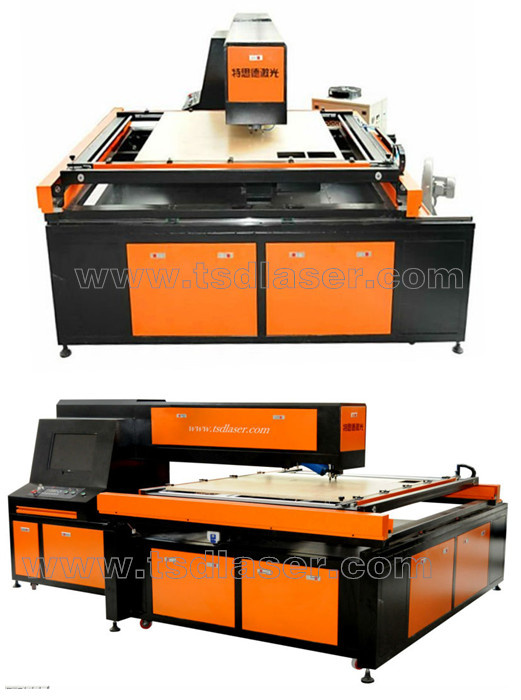

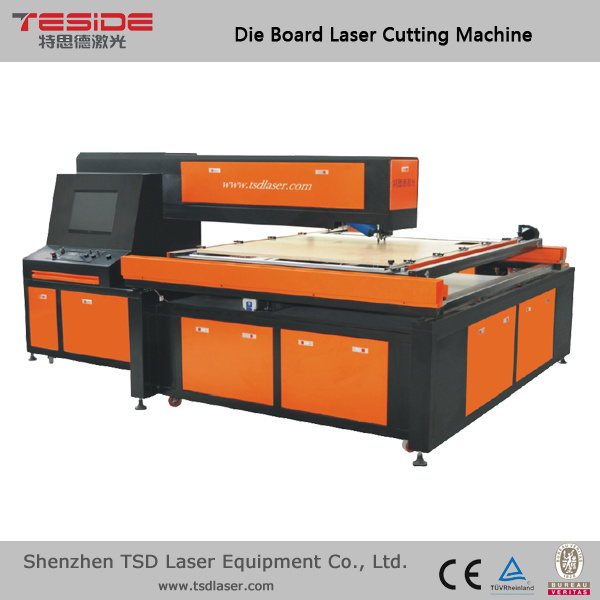

25mm thick plywppd cutting machine 400w CO2 laser cutting machin 1200mm*1600mm Application:CO2 die board laser cutting machine is widely used in packing, printing, and mould industries.Applicable materials: Plywood, acrylic sheet...etc.Machine Picture: Machine / Assistant Equipment Features:l Motor System: Three Panasonic full-digital AC Servo Motor to guarantee high precision cuttingl Drive System: HIWIN Linear guide rail + ball screw to guarantee high precision cutting and table movingl External light path system: USA optical lens to guarantee strong laser focusl Laser system: Best China RECI Laser tubes to guarantee stable laser workingl Cooling system: Best China CW-6000 Industrial Chiller water coolingl Protective Gas: Dry oil-free air, Taiwan Tai Sheng air dryerl Exhausting system: two sets exhaust fans to carry out smokingl Laser control system: Fully English language TSD laser software, PC controll Laser power Devices: Best China brand Hongyuanl Fixed laser path, laser head fixed, board movingl Stable machine design, high strength of machine bed, long-year workingl Low consumption of voltage about 5-7 kilowatt per hour Technical Specifications:Machine model No. | TSD-LC300-1216 |
Processing scale | 1250mm x 1600mm |
Machine weight | 1500kgs |
Laser type | CO2 Sealed laser tube |
Laser power | 300W double heads |
Driving motor | Panasonic Servo Motor |
Cutting depth | 18mm-22mm plywood |
Cutting precision | ±0.05MM |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould knife thickness | 0.45mm, 0.71mm,1.07mmetc. controllable |
Cutting speed | 25-30meters/hour 18-20mm plywood |
Protective gas | Dry and oil-free air |
Power supply | single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | CorelDraw, AutoCAD, Photo Shop, |
Graphic format support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS memory | attached 32MB memory, can work under off-line condition |
Laser tube guarantee | Guarantee 6 months,6000 hours life span for laser tube |
Assistant equipment | Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts | Laser Tube and Lens |
H.S Code | 8456100090 |
Remarks: You only need to prepare 220V Single phrase electricity, and air compressor then we can start to work with machine, we will prepare all related assistant equipment, like computer, air dryer, industrial chiller, exhaust fan, air filter, Laser tube, laser lens, laser mirror.

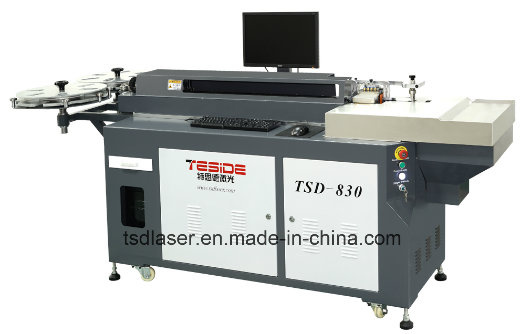

Related Products:TSD-830 Auto blade bending machine
Functions and usage:
a) Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
b) Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
c) Unique imported mould tool design, easy to bend pattern, high precision of size, durable
d) In order to guarantee precision and long-life span, transmission and control parts are imported
e) Self-developed latest bending control system, easy to operate and upgrade available.
f) Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
g) It can be installed soon after bending patterns form the machine, no need extra more hard work.
h) It's widely used in box mould, doll mould bending.
i) Exactly to realize fully automatic bending, help to save plate making time.
Our service:
Shenzhen TSD Laser Equipment Co., Ltd adheres to the customer-oriented service concept, providing complete installation, commissioning, inspection, training, maintenance and other pre-sales and after-sales service.
Pre-sales service
We provide customers with a variety of services including production processes proposals, technical consulting, free sample making, equipment shape designing.
Machine-installation & debugging
According the contract, our company will ship the equipment to the port of Shenzhen or domestic user specified location. Qualified technician will be send to customer's company for machine installation and debugging. Under the proper circumstance, the technician will finish installation within three days. Please keep the installation place clean and tidy.
Training
After machine installation and testing, qualified technician will be send to customer's company for training (machine operation, machine maintenance, machine debugging, product sample processing, etc). TSD Laser also welcome our customers to come to Chinese headquarter for machine training. The training is free of charge and it will last at least 3 days until the operator of customers' can use the machine properly and correctly.
Maintenance
Complete and perfect after-sales service
One year warranty and lifetime maintenance for the equipment
Lifetime free of charge support and upgrade for hardware and software
Trade Show:
Exhibition: The 5th All in Print China
Add: Shanghai New International Expo Center
Date: 14-17th Nov. 2014
Booth No.: W2-B-409
---------------------------------------------------------------------------
Exhibition: International Packaging & Printing Industry Vietnam
Add: SECC--Saigon Exhibition & Convention Center, HCM
Show Date: October . 22-25, 2014
Booth No.: 628
--------------------------------------------------------------------------
Exhibition: The 12nd PRINTPACK INDIA
Add: India Expo Center, Greater Noida Delhi NCR
Show Date: February 11 to 15, 2015
Booth No.: Hall 10 - E16
--------------------------------------------------------------------------
Exhibition: The 22nd South China International Exhibition on Printing Industry
Add: Area A.China Import &Export Fair Complex Guangzhou .PR China
Show Date: March 9 to 11, 2015
Booth No.: 4912
--------------------------------------------------------------------------
Exhibition: The 3rd International Printing Technology Exhibition of China (Guang Dong)
Add: Guangdong Modern International Exhibition Center
Show Date: April 7 to 12, 2015
Booth No.: 71029
--------------------------------------------------------------------------
Exhibition:SinoCorrugated 2015
Add:Shanghai New International Expo Center
Show Date:April 14 to 17, 2015
Booth No.:Y59
--------------------------------------------------------------------------
Where are we TSD machines?
Overseas markets:Indonesia, Thailand, Malaysia, Vietnam, Myanmar, Bengal, SriLanka, Brazil, Colombia, U.A.E., Lebanon, Egypt, Algeria, Kosovo, Turkey, Kuwait, South Africa, Poland, Finland, Bolivia, Iran, Philippines, Sudan, Romania, India, Singapore, Saudi Arabia, Russian Federation, Uzbekistan...etc. countries.
General questions
1. What's the guarantee, in case the machine breaks down?
The machine has 1 years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
2. What's the trade term?
Both FOB and CIF is OK.
3. What's the payment terms?
30% deposit, 70% balance before delivery by T/T is prefer. Small amount with West Union or Paypal is acceptable.
4 .Do we have any certificate?
CE, TUV with BV certificate
5. How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
6. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Contact Information:
Ms.YoYo Huang
Business Manager
Mob:+86 185 6572 9193
Shenzhen TSD Laser Equipment Co., Ltd locates in Shenzhen, China and specialize in fiber laser cutting machine, Flat CO2 die board laser cutting machine, fully automatic blade bending machine development, manufacture, marketing and service.
Our factory covers 5000 meter square, coming with 4 branches in China, 50 workers work for us. The current production capacity is around 20-30 sets per month. Our delivery performance keep improving also, in year 2011, our on time delivery rate is 100%, which makes our customer satisfied.
