2600kn High Precision Injection Molding Machine (YH260)

2600kn High Precision Injection Molding Machine (YH260)
Price: US $ 10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

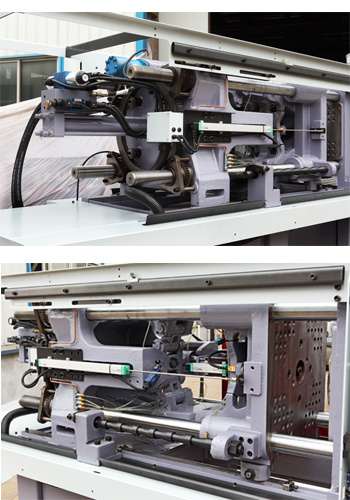

Clamping unit
5-point double toggle clamping system
Mechanical &electrical safety devices
Low pressure moule protection
Controllable multi_stage mold open/close position,pressure&speed
Fast moule clamping with differential device
Robust casting construcition with strengthened tie bar for maximum service life and best molding results
Automatic mould height adjustement
Variable mokes of djector movement
Automatic central lubrication

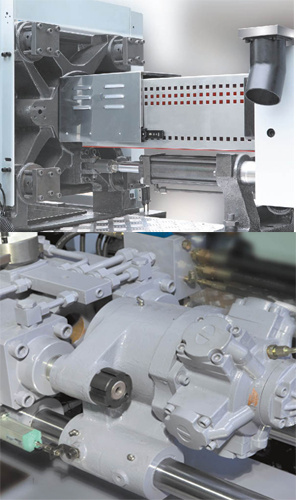

Injection unit
Double drive cylinder injection system with symmetrical oil circuit
Controllable multi-stage injection pressure,speed and position
Controllable multi-stage dwell pressure,speed  and time
Controllable multi-stage charging speed ,position and time
PID barrel temperature control
Screw plasticizing back pressure control
Suck back function
Plasticizing cold start prevention
Screw speed inspection
Self purging function
Efficient plasticizing device with strong torque hydraulic motor

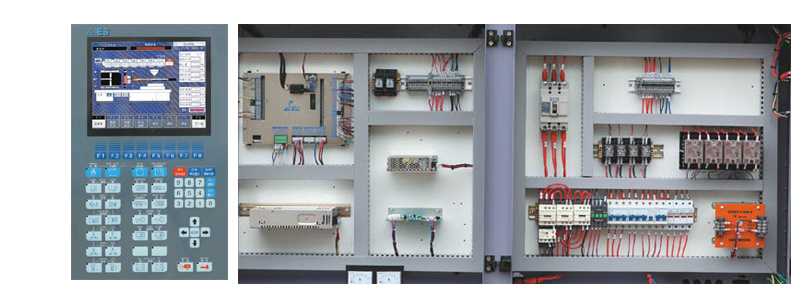

Control System
Japanese controller with 10 inch LED color screen.
Mold data storage
Linear transducer forclamping/injection/ejection control
English ,Spanish,Portuguese,Russsian,Arabic and other language options
Hydraulic system
Efficient and sound reduced hydraulic sustem
Weldless oil circuit
Hydtaulic proportional control
Hydraulic elements by well-known brand with high reliability and long service life
Oil temperature alarm


YH260



INJECTION UNITTABC
Sxrew diameter          mm45505560
Screw stroke            mm280280280280
Screw  L:D              L/D242220.519
Shot volume             cm3445550665791
shot weight Ps           g401495598712
injection pressure      Mpa273221183154
dwell pressure     kgf/cm22788225818661568
injection speed     mm/sec100.0100.0100.0100.0
injection rate     cm3/sec159.0196.3237.5282..6
screw rotate speed     rpm200.0200.0200.0200.0
nozzle sealing force    KN60.1
nozzle advancestroke    mm50
heater power            KW13.44
CLAMPING UNIT
clamp force             KN 2600
toggle steoke           mm560
space between tie bars  mm570×570
max.mould height        mm600
min.mould height        mm240
ejector number          pc9
ejector  force          KN69.2
ejector  stroke         mm160
OTHERS
specialpump pressure    Mpa21
standrd pump pressure   Mpa18
machine dimensions(L×W×H)m5.93×1.35×1.86
Machine weight          T9.5
oil tank capacity       L350
pump motor power        KW22

Prod Model: YH260
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw Injection Machine: Plastics Processing Machine
Type: Injection Blow Molding
Structure: Horizontal
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic & Mechanical
Automation: Automatic
Computerized: Computerized
Certification: CE
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.

In FL Machinery, we have full understanding of customer demands in a changing technology environment.

Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.

FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.

FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.

We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
