2680ton Plastic Pallet Injection Molding Machine

2680ton Plastic Pallet Injection Molding Machine
Price: US $ 12580/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

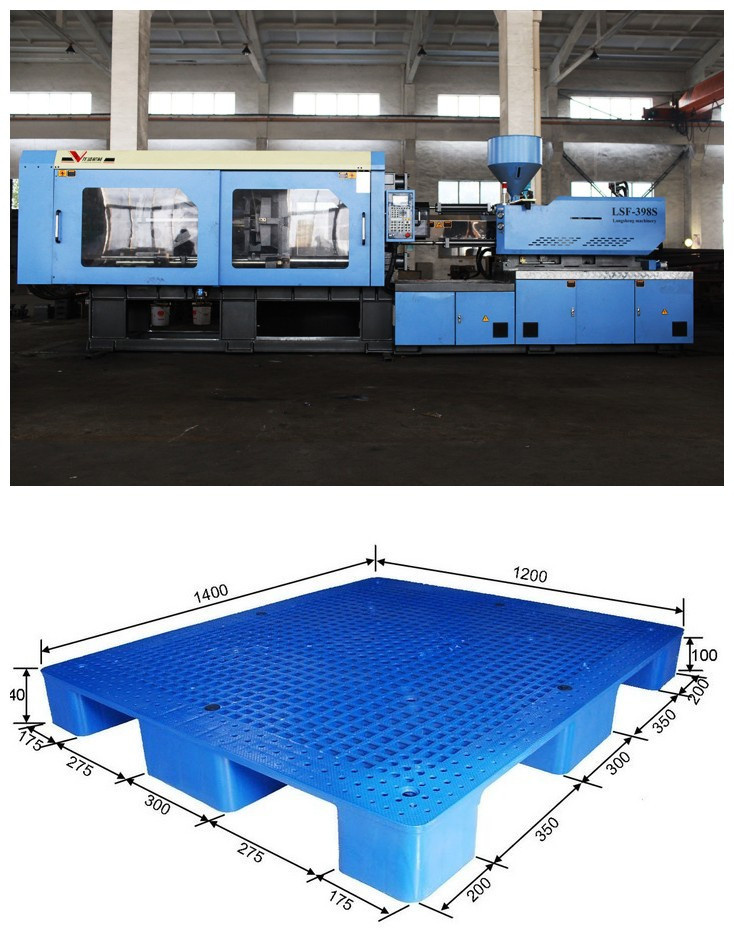

2680ton Plastic pallet injection molding machine for pallets of 18kg with all sizes. 1200*1200, 1200*1000, 1200*800 etc.


* Higher Productivity

* Low Power Consumption

* Precision & Consistency

* Robust Construction

* Simple Versatile Accurate Profitable

Some of the important features:
Clamping system: Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

  Unit LSF-2680
  A B C
Screw Diameter Mm   150 185 210
Screw L/D Ratio L/D   22.4 19.7 17.4
Short Size Cm3   15106 26020 33528
Injection weight
G   13746 23678 30510
oz   446.9 769.8 991.9
Injection Pressure Mpa   210 136 106
Screw Speed Rpm 60
Clamp Force KN 26800
Space Between Tie Bars mm 1800*1720
Toggle Stroke mm 1720
Max. Mold Height mm 1800
Min. Mold Height mm 800
Ejector Stroke mm 450
Ejector Tonnage KN 430
Max. pump Pressure Mpa 16
Pump motor powder Kw 55+55+55
Heater Power Kw 171.4
Oil tank capacity L 4000
Machine Dimension(L*W*H) M 17*36*4.1
Machine Weight T 175
Prod Model: LSF-2680
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: Custom
Injection Weight: 23678gr
Mould Height: 800-1800mm
Open Stroke: 1720mm
Tie Bar Sizes: 1800*1720mm
Pallets: 1200*1200,1200*1000,1200*800mm etc
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermosetting
Type: Plastic Products Production
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.

Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.

With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.

Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
