Home Mould Products 2L Blow Machine

2L Blow Machine

2L Blow Machine
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

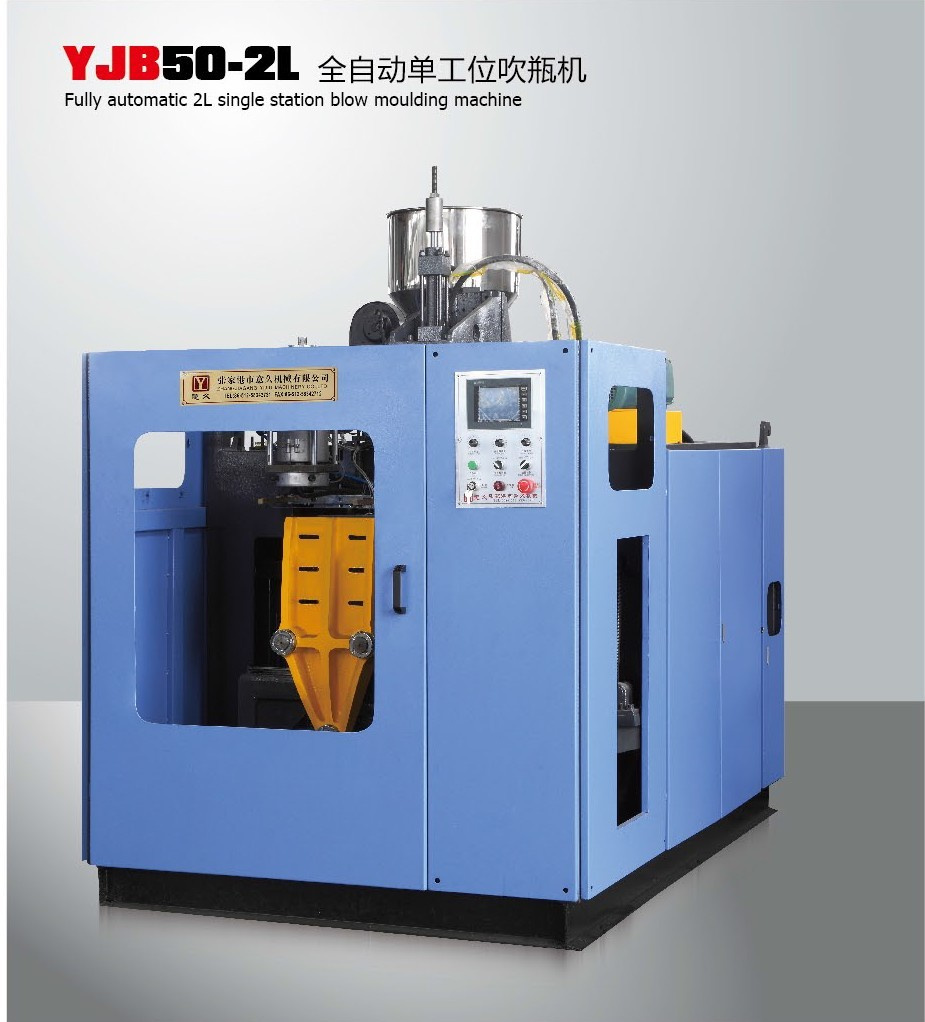

2L blow machine
This machine is made up of plasticizing system, die head, clamping structrue, hydraulic system, electric system, pneumatic system and cooling system. "robot" and other accessories can be chosen by customers. Machine can be equipped with 1 to 4 die head. Production is suitable for packaging of cosmetics, petroleum, chemicals, food productions and so on.

Available material can be PP, PE, PETG, PVC...
Can be equipped with 1 to 4 die head
For production up to 2L
PLC touch screen make the operation easier and clearer
Imported components adopted
Offer two layor, three layor and visual stripe

Basic  Parameter


Applicable Material


PE, PP....


Max. Product Volume


One die head for 2L


Dry Cycle


2000 pcs/h


Machine Size (L×W×H)


2.4×1.5×2 (M)


Machine Weight


2850KG


Total Power


23KW


Power Consumption


12.2KW/H


Plasticizing System


Specification


good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting


Speed Reducer


hard-teeth, low noise & wear-resistant speed reducer


Machine Barrel Screw


50mm ,L/D=22, 38CrMoALA high quality nitrogen steel


Plasticizing


35Kg /H


Heating Zone


3 Zone  Casting, aluminum heater


Heating Power


8.2KW


Extrusion Motor


three phase asynchronism motor (380V\50HZ),11KW


Cooling fan


3 zones    85W


Extrusion System


Specification


One head


Max. Dia. of Die Head


100mm


Heating Zone


3 zone heat coil of stainless steel


Heating Power


4.5 KW


Die Heat Huff


Pressure and capacity can be adjusted


Preform Adjustment


By manual


Open and Clamping System


Clamping Force


30KN


Mold Move Stroke


128~368mm


Platen Dimension


W×H:300×320mm,


Mold thickness range


140~200(mm)


Electric Control System


Specification


Standard PLC and colorful touch screen for blow molding machine


Touch Screen


Colorful touch screen, auto alarm, diagnose the system


Temperature Control


Self-regulation


Temperature Module


TaiwanI-7018RP automatic temperature module, digital


Action control


Japan Mitsubishi, programmable


Protection Function


Automatic alert and breakdown feedback double protection of mechanical apparatus


Hydraulic System


Specification


Proportion pressure controller changing direction quickly and softly


Oil pump motor


three phase a synchronism (380V\50HZ),5.5KW


Hydraulic pump


Vane pump


Hydraulic valve


imported hydraulic components


System pressure


100kg /CM 2


Pipes


Bilayerhigh pressureblast pipes


Cooling Mode


Water cool and oil cooler separately


Pneumatic System


Specification


imported famous brand pneumatic pressure


Air Pressure


0.7Mpa


Air Consumption


0.3M 3 /min


Cooling System


Specification


mold\barrel\oil box adopt independentcooling waterway


Cooling Medium


water


Water Consumption


30L /min


Water Pressure


0.2-0.6MPa


Parison controller system (Optional)


Specification


Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine.
Japan MOOG 100points can be adopt to the machine


Prod Model: YJB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year
Install: by Engineer
Color: Multicolor
Available Material: PE, PP, PVC, PETG......
Application: Bottle, Jerrycan, Toy......
Screw: Single-Screw
Automation: Automatic
Computerized: Computerized
Plastic Processed: PE
Type: Bottle Extruder
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.

We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.

Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.

Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.

To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.

No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.

Welcome to Yijiu Machinery!
