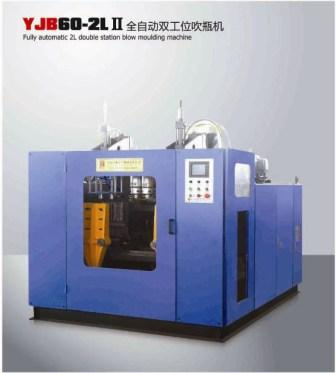

2L blow moulding machine
YJB60-2LII, This double station machine can be equipped with 1 to 4 fold die head, for the production of articles from 5ml up to 2liters made out of PE, PP, PETG and PVC, suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, food products and toys. This machine is designed for producing high quality articles with small size.
|
Basic Parameter |
|
Applicable Material |
PE, PP.... |
|
Max. Product Volume |
One die head for 2L |
|
Dry Cycle |
1800 pcs/h |
|
Machine Size (L×W×H) |
2.4×1.5×2 (M) |
|
Machine Weight |
3800KG |
|
Total Power |
25KW |
|
Power Consumption |
15KW/H |
|
Plasticizing System |
|
Specification |
good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed Reducer |
hard-teeth, low noise & wear-resistant speed reducer |
|
Machine Barrel Screw |
60mm,L/D=24, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
65Kg/H |
|
Heating Zone |
3 Zone Casting, aluminum heater |
|
Heating Power |
8.2KW |
|
Extrusion Motor |
three phase asynchronism motor (380V\50HZ),15KW |
|
Cooling fan |
3 zones 85W |
|
Extrusion System |
|
Specification |
One head |
|
Max. Dia. of Die Head |
100mm |
|
Heating Zone |
3 zone heat coil of stainless steel |
|
Heating Power |
4.5 KW |
|
Die Heat Huff |
Pressure and capacity can be adjusted |
|
Preform Adjustment |
By manual |
|
Open and Clamping System |
|
Clamping Force |
30KN |
|
Mold Move Stroke |
128~368mm |
|
Platen Dimension |
W×H:300×320mm, |
|
Mold thickness range |
150~200(mm) |
|
Electric Control System |
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch Screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature Control |
Self-regulation |
|
Temperature Module |
TaiwanI-7018RP automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable |
|
Protection Function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic System |
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
three phase a synchronism (380V\50HZ),5.5KW |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
imported hydraulic components |
|
System pressure |
100kg/CM 2 |
|
Pipes |
Bilayerhigh pressureblast pipes |
|
Cooling Mode |
Water cool and oil cooler separately |
|
Pneumatic System |
|
Specification |
imported famous brand pneumatic pressure |
|
Air Pressure |
0.7Mpa |
|
Air Consumption |
0.4M 3 /min |
|
Cooling System |
|
Specification |
mold\barrel\oil box adopt independentcooling waterway |
|
Cooling Medium |
water |
|
Water Consumption |
40L/min |
|
Water Pressure |
0.2-0.6MPa |
|
Parison controller system (Optional) |
|
Specification |
Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine.
Japan MOOG 100points can be adopt to the machine
|
Component of YJB60-2LII
ELECTRICAL PARTS
|
COMPONENT |
SUPPLIERS |
|
MICROCOMPUTER CONTROL SYSTEM |
JAPAN MITSUBISHI PLC |
|
TOUCH SCREEN |
TAIWANHITECH TOUCH SCREEN |
|
TEMPERATURE MODULE |
TAIWAN7018RP |
|
PROXIMITY SWITCH |
TAIWAN RIKO |
|
CONTACTOR |
FRANCESCHNEIDER |
|
AIRBREAK SWITCH |
FRANCESCHNEIDER |
|
MOTOR |
SIEMENS BEIDE THREE PHASE MOTOR |
|
INVERTER |
TAIWANDELTA |
HYDRAULIC PARTS
|
COMPONENT |
SUPPLIERS |
|
OIL PUMP |
TAIWANHIGHTECH |
|
HYDRAULIC VALVE |
TAIWANNORTHMAN |
PNEUMATIC PARTS
|
COMPONENT |
SUPPLIERS |
|
PNEUMATIC VALVE |
TAIWAN AIRTAC |
PARISON CONTROL SYSTEM (OPTIONAL)
|
COMPONENT |
SUPPLIERS |
|
PARISON PROGRAMMER |
JAPANMOOG 100 POINTS |
|
SERVO VALVE |
JAPANMOOG |
