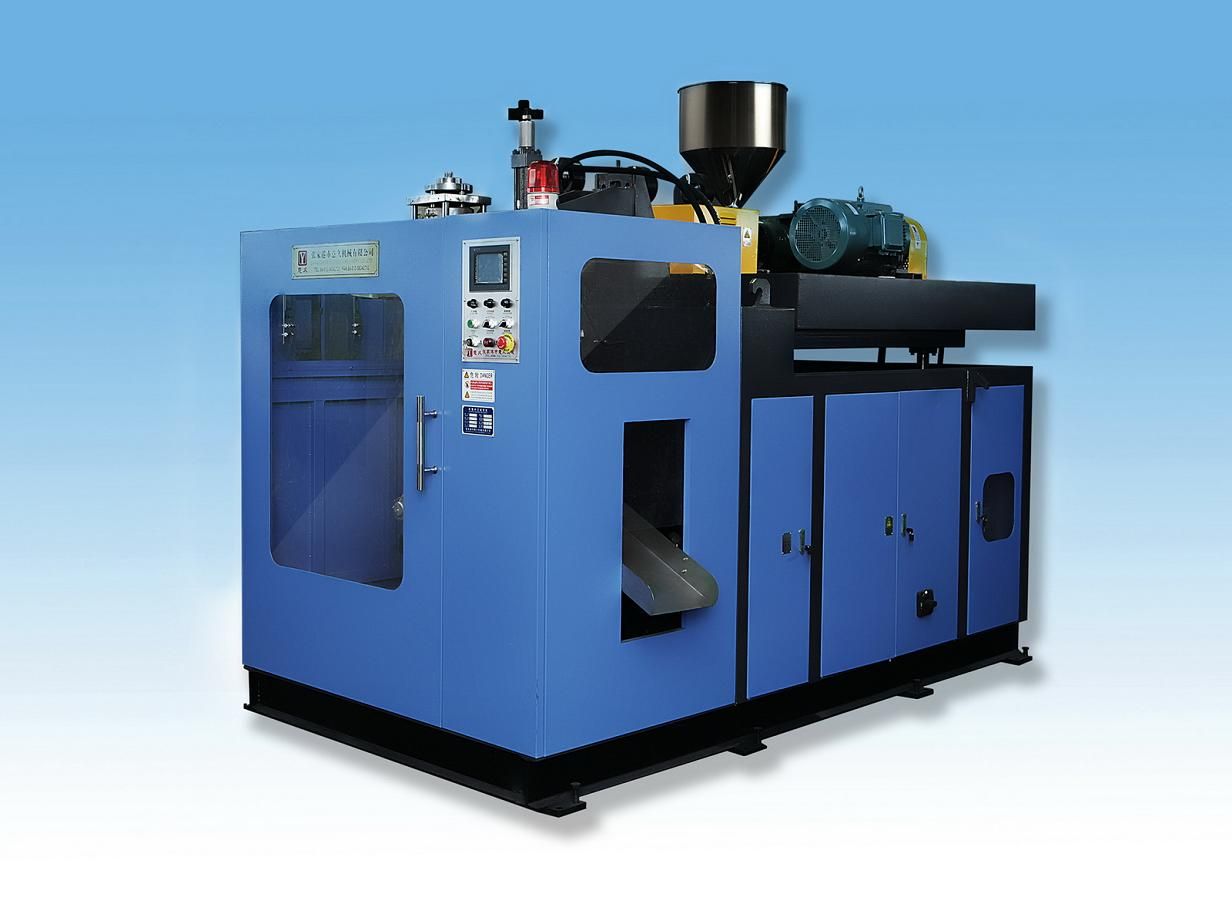

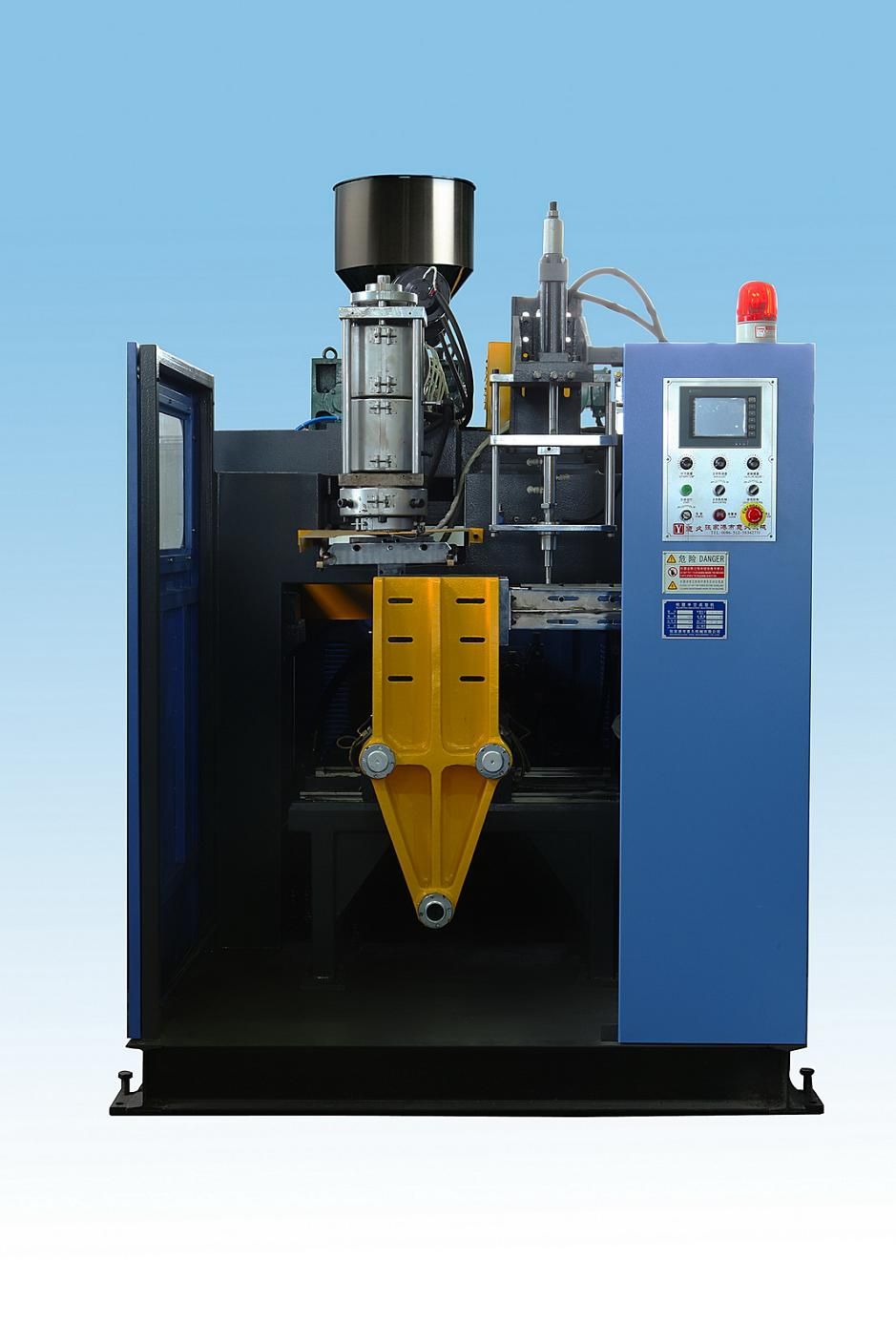

2L Extrusion Blow Moulding Machine (YJB50-2L)
| Price: |
US $ 22150set |
| Trade Terms: |
FOB |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Extrusion Blow Molding Machine
Applicable Material PE, PP...
Max. Product Volume One die head for 2L
Dry Cycle 2000 PCS/h
Machine Size 2.4×1.5×2 (M)
Machine Weight 2850KG
Total Power 23KW
Power Consumption 12.2KW/H
Machine Barrel Screw 50mm, L/D=22,
Plasticizing 35Kg/H
Extrusion Motor three phase (380V, 50Hz), 11KW
Cooling fan 3 zones 85W
Max. Dia. Of Die Head 100mm
Clamping Force 30KN
Mold Move Stroke 128~368mm
Platen Dimension W×H: 300×320mm,
Mold thickness range 140~200(mm)
Oil pump motor three phase a synchronism (380V, 50Hz), 5.5KW
Hydraulic valve imported hydraulic components
System pressure 100kg/CM2
Cooling Mode Water cool and oil cooler separately
Air Pressure 0.7Mpa
Air Consumption 0.3M3/min
Water Consumption 30L/min
Water Pressure 0.2-0.6MPa
| Basic Parameter |
| Applicable Material | PE, PP.... |
| Max. Product Volume | One die head for 2L |
| Dry Cycle | 2000 pcs/h |
| Machine Size (L×W×H) | 2.4×1.5×2 (M) |
| Machine Weight | 2850KG |
| Total Power | 23KW |
| Power Consumption | 12.2KW/H |
| Plasticizing System |
| Specification | good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
| Speed Reducer | hard-teeth, low noise & wear-resistant speed reducer |
| Machine Barrel Screw | 50mm,L/D=22, 38CrMoALA high quality nitrogen steel |
| Plasticizing | 35Kg/H |
| Heating Zone | 3 Zone Casting, aluminum heater |
| Heating Power | 8.2KW |
| Extrusion Motor | three phase asynchronism motor (380V\50HZ),11KW |
| Cooling fan | 3 zones 85W |
| Extrusion System |
| Specification | One head |
| Max. Dia. of Die Head | 100mm |
| Heating Zone | 3 zone heat coil of stainless steel |
| Heating Power | 4.5 KW |
| Die Heat Huff | Pressure and capacity can be adjusted |
| Preform Adjustment | By manual |
| Open and Clamping System |
| Clamping Force | 30KN |
| Mold Move Stroke | 128~368mm |
| Platen Dimension | W×H:300×320mm, |
| Mold thickness range | 140~200(mm) |
| Electric Control System |
| Specification | Standard PLC and colorful touch screen for blow molding machine |
| Touch Screen | Colorful touch screen, auto alarm, diagnose the system |
| Temperature Control | Self-regulation |
| Temperature Module | TaiwanI-7018RP automatic temperature module, digital |
| Action control | Japan Mitsubishi, programmable |
| Protection Function | Automatic alert and breakdown feedback double protection of mechanical apparatus |
| Hydraulic System |
| Specification | Proportion pressure controller changing direction quickly and softly |
| Oil pump motor | three phase a synchronism (380V\50HZ),5.5KW |
| Hydraulic pump | Vane pump |
| Hydraulic valve | imported hydraulic components |
| System pressure | 100kg/CM 2 |
| Pipes | Bilayerhigh pressureblast pipes |
| Cooling Mode | Water cool and oil cooler separately |
| Pneumatic System |
| Specification | imported famous brand pneumatic pressure |
| Air Pressure | 0.7Mpa |
| Air Consumption | 0.3M 3 /min |
| Cooling System |
| Specification | mold\barrel\oil box adopt independentcooling waterway |
| Cooling Medium | water |
| Water Consumption | 30L/min |
| Water Pressure | 0.2-0.6MPa |
| Parison controller system (Optional) |
| Specification | Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine.
Japan MOOG 100points can be adopt to the machine |
| Prod Model: |
YJB50-2L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
HDPE |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
CE |
