Home Mould Products 300L Blow Molding Machine

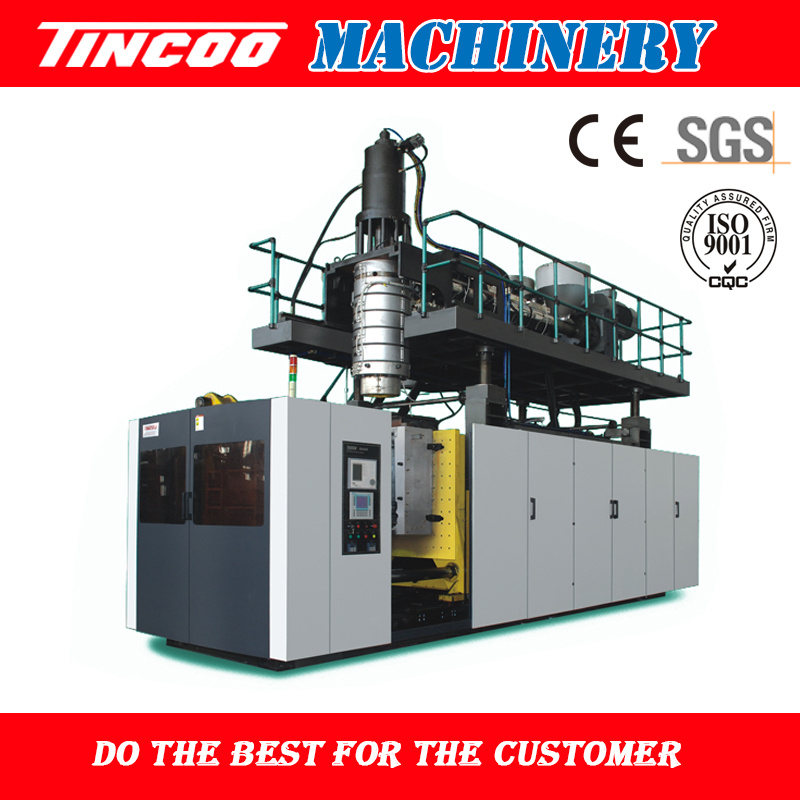

300L Blow Molding Machine

300L Blow Molding Machine
Price: US $ 50000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

The 230L-300L drums, tool boxes and auto parts series consists of DHB250A , DHB250B,DHB500and DHB1000etc., which can be used for producing drums, tool boxes and hollow parts of all kinds. Materials of PE, PP can be used. Maximum capacity of accumulator head can be 12L while volume of products can be 300L.

Advantages of automatic extrusion blow molding machine:
1. Its control system adopts closed loop control imported from Europe and hydraulic system is pressure-flow double proportional control equipped with variable plunger pump to ensure fast and smooth operation of the machine and energy consumption of the hydraulic system can be reduced by 30% or above, saving considerable electricity.
2.This series adopts new patent of two pull-rod type closing-mold device;double-folding accumulator head;extrusion device,equipped with complete blowing device and product taking-outdevice,and entirely achieves full automatic production.
3.The electrical control system adopts Complete computer control to automatically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
4.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.

Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.

After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
                       International call is handled within 20 hours.

Specification

DHB-250ADHB-250BDHB-500DHB-1000
Material
PE,PPPE,PPPE,PPPE,PP
Max.container capacity   L2503005001250
Number of die set1111
Output (dry cycle)pcs/hr260260200180×6500
Machine Dimensionm7.6×3.0×5.27.8×3.2×5.59.8×3.5×511000×4500
Total weightton40406095
Accumulator head
DHB-250ADHB-250BDHB-500DHB-1000
Accumulator capacity L22224260
Power of die heating KW45465568
Number of heating zonezone555×25×2
Die diametermm600600600/750600/850
Injection pressureMpa8888
Clamping Unit
DHB-250ADHB-250BDHB-500DHB-1000
Clamping forceKN7608809001800
Platen opening strokemm700-1800700-1850800-22001100-2700
Platen size mm1320×16001360×19001550×20001800×2200
Max mould sizemm1200×17001260×19801450×20501800×2500
Mould thicknessmm705-1000705-1050705-12001305-1500
Extruder Unit
DHB-250ADHB-250BDHB-500DHB-1000
Screw diametermm120120110×2120×2
Screw L/D ratioL/D30:130:1-32:130:1-33:130:1
Extruding VolumeKg/hr300300-400450-550500-600
Screw rotation rater/min6-5610-8610-8010-80
Extruder heating power KW36365065
Extruder driving powerKW3290-13275×2/90×2110×2/132×2
Power consumption
DHB-250ADHB-250BDHB-500DHB-1000
Oil pump power KW45454555
Screw motor powerKW7.57.57.57.5
Heating powerKW8282105133
General assembly powerKW266.5224.5-266.5307-337415-459
Average energy consumptionKW150135200260
Air pressureMpa1.01.01.0-1.51.0-1.5
Air consumptionm3/min2.02.03-44-5
Cooling water consumptionm3/min1.81.83-54-5

Prod Model: DHB-250B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Extrusion Blow Molding Machine
Raw Material: HDPE
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.

Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.

Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
