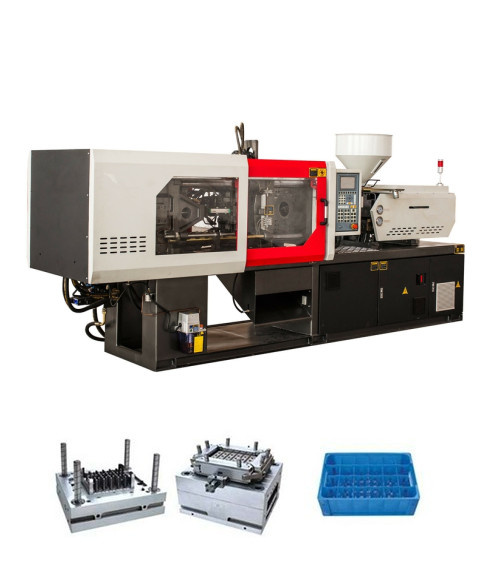

320 Ton Basket Injection Machine

320 Ton Basket Injection Machine
Price: US $ 39000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T



Product Description

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T , injection weight from 50 to 10000g . with best price/ performance ration of any machine on the market.


Some of the important features:

  • Clamping system:  Faster response, stable and high rigidity
  • Injection system:    Accurate and flexible, lower rejection rate
  • Control system:      Computer and simple operation,molding data memory system
  • Power system:        Energy saving, high efficient and precise
  • Metal parts:              The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

  • Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
  • Visiable lubrication system:  on time clean, avoid cast steel parts abrasion and broken.
  • Oil treasure: Filter of hydraulic oil,good for pump and valves
  • Long working life: Imported spare parts and updated version
  • Aftersales service: Professional & timely
  • Delivery time:30-60 days
  • Port of dispatch: Shanghai











INJECTION UNIT
  Unit WMK-320
A B C
Screw Diameter Mm 60 67 70
Screw L/D Ratio L/D 21.6 19.8 18.6
Short Size Cm3 918 1145 1250
Injection weight G 830 1030 1136
Injection Rate g/s 177 206 239
Plasticizing capacity g/s 41 49 57
Injection Pressure Mpa 193 158 142
Screw Speed Rpm 0-185




CLAMPING UNIT
Clamp Force KN 3200
Space Between Tie Bars mm 630*630
Toggle Stroke mm 590
Max. Mold Height mm 630
Min. Mold Height mm 200
Ejector Stroke mm 160
Ejector Tonnage KN 62
Ejector Number P 9


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 30
Heater Power Kw 18
Machine Dimension(L*W*H) M 6.15*1.57*2
Oil Tank Capacity L 650
Machine Weight T 10.2
Prod Model: WMK-320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features: High Speed, Saving Electricity
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
