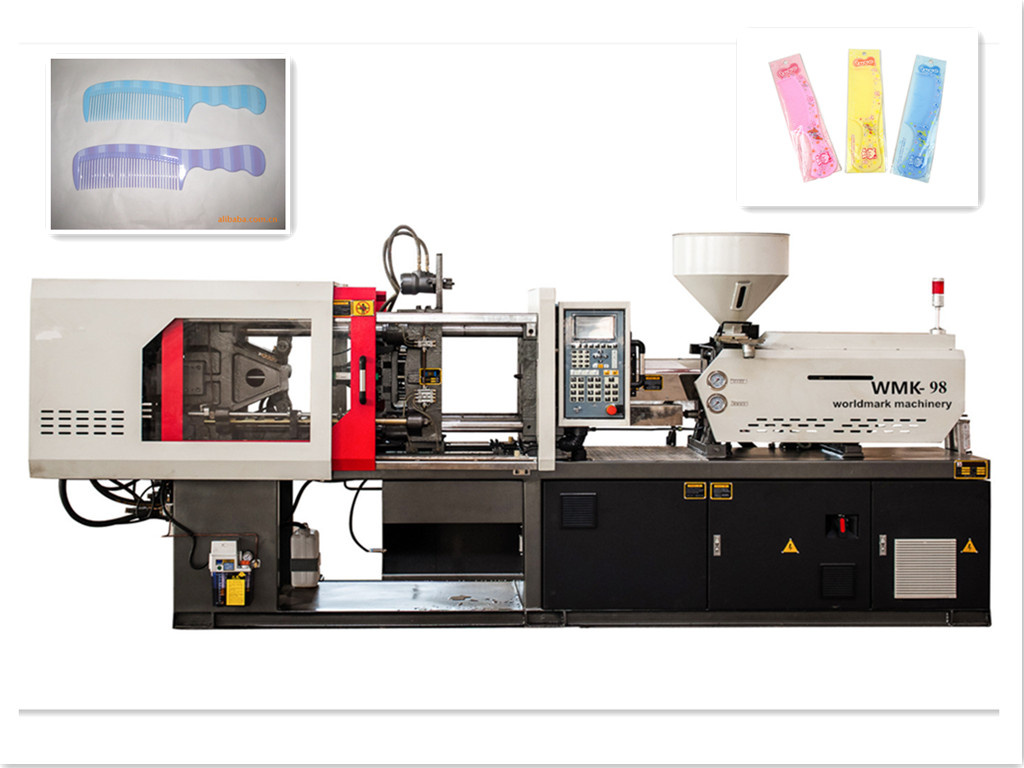

320ton Series General Purpose Plastic Injection Molding Machine

320ton Series General Purpose Plastic Injection Molding Machine
Price: US $ 39000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
320 Ton Basket Energy Saving Plastic Injection Molding Machine
Product Description
We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai




INJECTION UNIT
  Unit WMK-320
A B C
Screw Diameter Mm 60 67 70
Screw L/D Ratio L/D 21.6 19.8 18.6
Short Size Cm3 918 1145 1250
Injection weight G 830 1030 1136
Injection Rate g/s 177 206 239
Plasticizing capacity g/s 41 49 57
Injection Pressure Mpa 193 158 142
Screw Speed Rpm 0-185




CLAMPING UNIT
Clamp Force KN 3200
Space Between Tie Bars mm 630*630
Toggle Stroke mm 590
Max. Mold Height mm 630
Min. Mold Height mm 200
Ejector Stroke mm 160
Ejector Tonnage KN 62
Ejector Number P 9


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 30
Heater Power Kw 18
Machine Dimension(L*W*H) M 6.15*1.57*2
Oil Tank Capacity L 650
Machine Weight T 10.2

Prod Model: wmk-320
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force: 3200kn
Pump Motor Powder: 30kw
Machine Dimension(L*W*H): 6.15*1.57*2m
Machine Weight: 10.2t
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
