Product Description

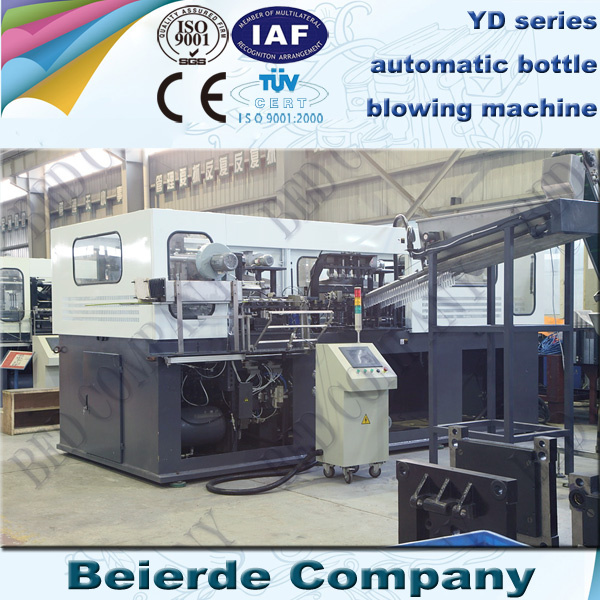

YD series 3500 bottles per hour automatic bottle blowing machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated drink bottle, water bottle, hot filling bottle, oil bottle, cosmetics, wide mouth bottle, etc.
Characters:
1, Adopting double crank to adjust mould, heavy locking mould, stable and fast. Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2, The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3, The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4, The machine can be operated in the step-by-step mode and the semi-auto mode.
Technical parameter for reference
Model: YD-3500
Bottle mould range: 250ml-2, 000ml
Max. Product capacity: 3, 500-3, 800 BPH (500ml)
Max. Heating power: 20kw
Pressure of air supply: 2.5mpa
Max. Mould dimension: 200× 350× 380 mm
Max. Shifting mould dimension: 170 mm
Center distance between two bottles: Min9 mm, max20mm
Max. Stretched length: 350mm
Size Main machine: 1, 600× 600× 1, 610 mm
Oven size: 1, 870× 630× 1450 mm
Weight: 1, 200kg
1, Our engineers: Free direct the installation, machines operation and train the operator of the customers.
2, Our machines: Safe and reliable, efficient and energy saving, easy operation.
3, Our machine delivery: In time with English operating instruction program.
4, Our after sale service: Timely, professionally.
Zhangjiagang Beierde beverage machinery manufacturer Co., Ltd. Is located in Sanxing Yanjiang Economic Development Zone, Zhangjiagang City, which near Shanghai. We are the professionally researches, develops, manufactures beverage-packaging machines and own 3, 000 m² Workshop.
Our main products include water, juice, carbonated drink production line, semi-matic and automatic bottle blowing machine system, juice, carbonated drink preparing system, 3 gallon and 5 gallon water packing line and so on. We have more than 500 productions lines service in the whole world.
Now we can offer:
1.2, 000-20, 000 BPH Drinkable Water Bottling Line
2.2, 000-20, 000 BPH Hot Bottling Line
3.2, 000-15, 000 BPH Carbonated Beverage Bottling Line
4.100-2, 000 Barrels/Hour 3-Gallon & 5-Gallon Water Filling Line
5. PET Preform Injector and Bottle Blow Moulding Machine
6.1-30 Ton per hour Water Treatment
7.1-20 ton per hour juice and carbonated drink preparing system
Zhangjiagang Beierde Beverage Machinery Co., Ltd., located by the side of the Yangtze River, National Civilization City- China Zhangjiagang City, enjoys pleasant scenery and convenient communications of land ways and water ways, renowned as " A land of fish and rice" and " An oasis of the South Yangtze River".
As the leading beverage bottling machinery in China, we own more than 500 production lines running all over the world.
Main Products: Three-in-one filling machine (include rinser, filler, capper).
1.2000-23000 BPH Table-Water Bottling Line;
2.2000-16000 BPH Hot Bottling Line;
3.2000-15000 BPH Carbonated Beverage Bottling Line;
4.100-1800 Barrels/Hour Filling Line, 3-Gallon & 5-Gallon Water Filling Line;
5. PET Preform Injector and Bottle Blow moulding machine;
6. Water Treatment;
7. Packing machine;
8. Carbonating Mixer;
9. Turn key Project.
Our company regards "Honesty first and Quality first" as our management principle and has set up a strict quality control system.
