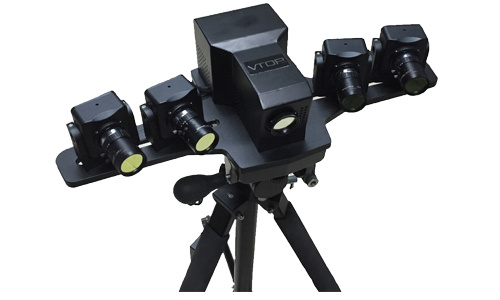

3D scanner for CNC engraving machine
Type | OD-200B(S) |
Scanning Mode | Non-contact |
Resolution(Unit: pixel) | 5,000,000 Monochrome |
Single Minimum Measuring Volume(Unit: mm3) | 50×38×38 |
Single Maximum Measuring Volume (Unit: mm3) | 500×380×380 |
Scanning Accuracy (Unit: mm) | 0.01~0.02 |
Scan Distance(Unit: mm) | 100-1250(Adjustable) |
Single Measuring Time (Unit: s) | <5 |
Point Space(Unit: mm) | 0.02~0.2 |
Grating Technology | Phase Shift Stripe Grating, blue light |
Grating Source Position | PC |
PC Output File Format | ASC,PF,VTX,OBJ,WRL,PLY,AC3D,STL |
Stitching | Automated stitching by painting point |
Operating System | Compatible with Windows/2000/XP/Vista/Win7/Win8 |
Environment & Power | -10ºC~45ºC,100~240V AC |
Widely used in automobile, motorcycle,mold making, precision machinery, footwear, household appliances, cultural imitation, costume design, heavy industry, light industry and other manufacturing industries, greatly enhance the industry productivity.
1) Scan fast, within seconds receive more than 1.3 million points
2)one time to get a face, a very regular distribution of measurement points
3) high precision
4) big single measurement range (laser scanners generally only scan 50mm wide narrow range)
5) portable, can be moved to the field for measurements
6) can measure the heavy, large parts that can not put on table (such as mold, relief, etc.)
