EcoPura Engage in Blow Molding Machine, Stretch Blow Molding Machine, Bottle Blow Molding Machine, Blow Moulding Machine, Bottles Blowing Machine, Blow Molding Machinery, Bottle Making Machine, Blow Moulding Machinery, Blowing Machine, Moulding Machine, Molding Machine, Blow Bottle Machine, plastic machine, blow machine

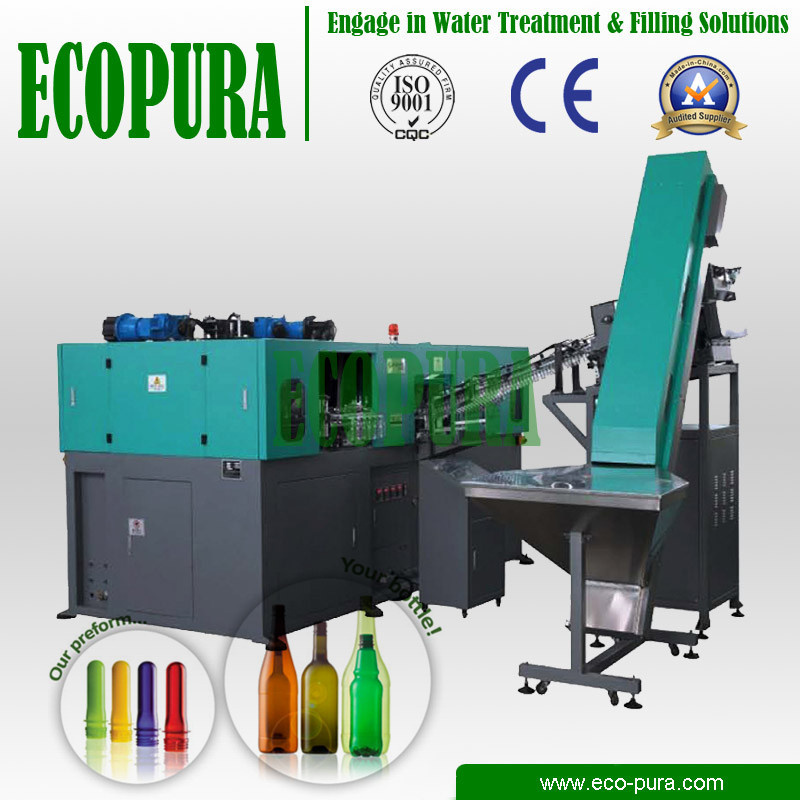

EPC-4000 Full Automatic Blow Molding Machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1) EPC-4000's output reach to 4000 b/hr. Directly saving on the machine more than 1/3 of machine's cost...
2) Power consumption is ONLY 14KW. 50% less than the traditional machine, after using 2 years, the saving on the electirity is the same valve as the machine's cost.
3) Reasonable design, full automatic control, save power and labor. Adopt high quality components. 4) Feeding system carries the preform by robot automatically.
5) Infrared oven heater adopts the quartz lamp to heat the PET tube.
6) Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble - shooting, maintenance and other benefits.
TYPE |
ITEM |
MEASUREMENT |
EPC-4000 |
END PRODUCT
|
Material |
|
PET/PP/PE |
Volume |
L |
0.1-2L |
Theoretical output |
pcs/h |
3200-4000 |
Neck Diameter |
mm |
15-38 |
Body Diameter |
mm |
35-110 |
MOULD PLATE |
Max.mould thickness |
mm |
180-260mm |
Max.Valid area |
mm |
350*450 |
Cavity |
|
4 |
AUXILIARY |
HP Air compressor |
M3/Mpa KW |
1.0m3/min 3.0Mpa 2sets |
LP Air compressor |
M3/Mpa KW |
1.6m3/min 1.0Mpa 1set |
Air dryer |
M3/Mpa |
1.0m3/min 3.0Mpa 1set |
High pressure Air tank |
|
NIL |
Precision Air filters |
|
2pcs |
MAIN MACHINE ELECTRICITY |
Power |
KW |
15 |
Voltage/Frequency |
V/HZ |
220-380/50-60 |
MACHINE SIZE AND WEIGHT |
Main Machine dimension |
L*W*H |
1908*1858*1920MM |
Preform Unscrambler |
L*W*H |
276*106*186MM |
Main machine weight |
T |
3.6 |
Preform Unscrambler weight |
T |
0.25 |
Shenzhen EcoPura Water Equipment Co., Ltd was founded in 2007, specialized in Water Treatment/Dispenser, bottled water/beverage filling line, Blow molding machine & packaging solutions over 18 years experiences, In China, ECOPURA commands more than 60% of Water and Beverage Process Machine market. Covering all segments. Highly acclaimed for their user-friendly, tailor-made designs and customized solutions for various customer needs
As a leading manufacturer, we can supply the following solutions:
1, Water Treatment Solutions based on different raw water quality
Municipal or Mountain water treatment / Brackish Water Purification / Sea water desalting
2, Automatic Bottled Water Production Line
Accuracy filling, position due to PLC application and photoelectricity technology, neck spraying nozzle for cleaning completely, avoid the 2ND pollute. Adjusting and setting data make machine suitable to various bottles.
A)PET 250 ml - 2000ml Bottled Filling Line
B)PET/PP 3 liters - 6 liters Bottled Filling Line
C)5Gallon Bottled Filling Line
3, Blow molding machine with mould design and Post packaging machinery to be fully synchronized with the bottled water filling line.
4, High Quality Water Dispenser with 15years OEM experience for abroad client demand
With the support of advanced technique, mature experienced engineers and customer-oriented after sales service, So far, ECOPURA has close cooperation with hundreds of customers all over the world from USA, Canada, Russia, Mexico, Brazil, Panama, Sudan, Nigeria, Angola, Iraq, Jordan, Indonesia and so on. We won enormous credit by carry out business and confirmation based on carefully understood acts and detailed requirement from every customer.
Providing ' Quality Products, Customized services, Competitive Prices and Timely Delivery', . We are now looking forward to even more cooperation with overseas customers based on mutual benefits, Please feel free to contact us if you are interested in our products, Sincerely welcome to visit our company!
