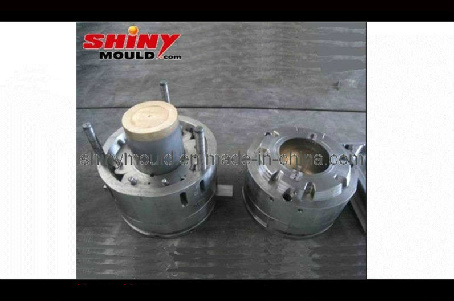

4 Gallon Bucket Mould/Moldes De Baldes
| Price: |
US $ 26000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Money Gram |
This 20L bucket mould is new design of pail / bucket / container mold, the bucket with special design of bucket and lid is suitable for hydraulic oil keeping.
Mould Details:
1. Mold size: 600*600*680mm
2. Mold weight: 1884kg
3. Mold steel: DIN1.2738
4. Injection machine: 480T
5. Injection gate: 1 tip hot runner
6. Cycle time: 22s
The first testing samples will be sent to customers within 50 days after 3D mould drawing was confirmed,
According to customer's requests, the top of core part and the bottom of cavity part is inserted with copper beryllium,
It can lengthen the mold life, shorten cooling time and lessen the flash.
Material PP and PE are all suitable, using PP, the bucket will be brittleness while using PE is toughness.
|
Pin - point Gate: |
|
Pin - point gate is a circular gate used for feeding into the base of components and, because it is relatively small in diameter, it is often to be preferred to the sprue gate which necessitates a finishing operation. |
|
To permit the use of a pin gate one of the following mould design must be adopted: |
|
1. Three-plate, underfeed-type mould. An extra plate is added behind the cavity plate to permit a runner system to be incorporated below the cavity or cavities. The pin gate connects the impression to the runner, either directly of via a secondary sprue. |
|
2. Hot-runner moulds. A heated insulated runner block is incorporated behind the cavity plate. The impression is connected to the secondary nozzle (of the hot-runner unit), again by a pin gate and secondary sprue. Both the above designs maybe used for central or offset, single or multi-point gating, into one or more impressions. |
|
3. Two-plate mould with special nozzles. A relatively large recess is provided behind the cavity to permit a specially designed nozzle to protrude into the mould. The pin gate connects the impression to the nozzle usually via a hot well of plastics material. This is know as the antechamber design. |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plastic Product Capacity: |
4 Gallon |
| Top Diameter: |
290mm |
| Height: |
340mm |
| Bottom Diameter: |
250mm |
| Weight: |
580g |
| Material: |
PP / PE |
| Shaping Mode: |
Injection Mould |
| Application: |
Household Appliances |
| Installation: |
Fixed |
