Application:

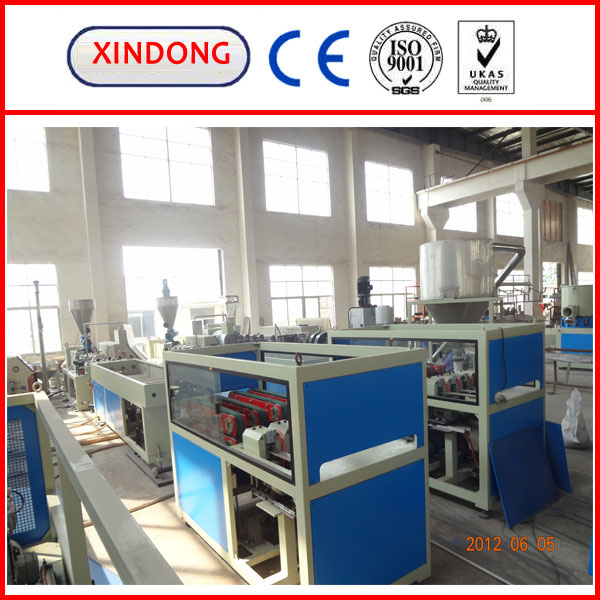

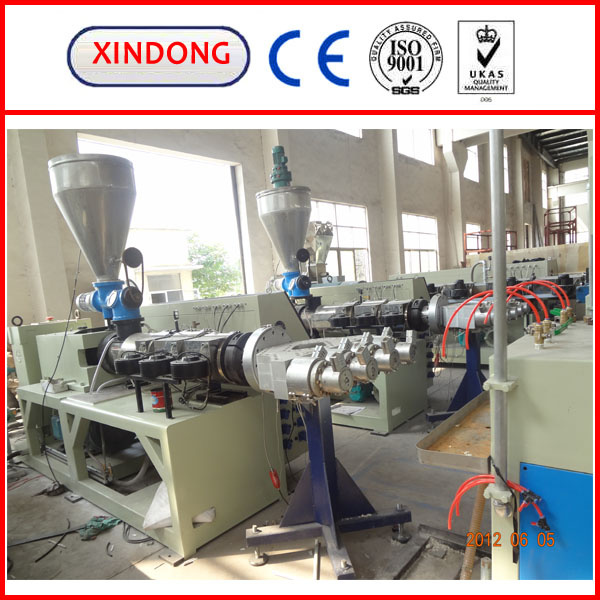

SJSZ 65/132 conical twin screw extruder for PVC pipe/ profile/sheet extrusion by combination with corresponding moulds
Key Parameter:
Screw diameter: 65/132mm
Screw effective working length: 1440mm
Max rotation speed: 34.7rpm
Motor powr: 37KW
Barrel heating power: 24KW
Barrel heating method: Cast aluminum heater
Cooling method: Air force cooling
Output: 150-250kg/h
No. |
Name |
specification |
Brand |
Origin |
1 |
speed controller of the main motor |
|
ABB |
Sweden |
2 |
inverter of the feeding motor |
|
ABB |
Sweden |
3 |
three-phase adjustable frequency motor |
37KW |
Siemens |
|
4 |
three-phase adjustable frequency motor |
1.1KW |
|
|
5 |
temp. controller |
|
OMRON |
Japan |
6 |
mini breaker |
C45N series |
DELIXI |
Tianjin |
7 |
vacuum pump |
SZ-2 |
YUHUAN |
Shanghai |
8 |
barrel and screw |
65/132mm |
38CrMoALA |
Shanghai |
9 |
reduction gearbox\distribution box |
|
|
Jiangsu |
10 |
Nitriding thickness |
0.5-0.7mm |
|
|
11 |
AC contactor |
LC1 series |
TE |
Shanghai |
12 |
thermocouple |
WRET-07 series(K type) |
|
Ningbo |
13 |
indicator light\press-button |
|
|
Joint venture |
14 |
Ampere meter of the feeder |
TQ series |
Tokyo |
Japan |
15 |
revolution meter of feeder |
TQ series |
Tokyo |
Japan |
We, Zhangjiagang City Xinlai Machinery Co., Ltd, are professional manufacturer for plastic machinery located in Zhangjiagang, which is 2 hours away from Shanghai.
Our main products are:
1. Plastic extruder
2. PE/PP/PVC pipe production line 3
. PVC profile extrusion line
4. PE/PP/PVC/PET recycling granulation line
5 assistant machines, like shredder, crusher, pulverizer, loader, mixer, dryer, winder, belling machine, mold, printer, etc.
We are a manufactory gathered with designing, developing, producing and selling. By many years of concentrated business and combined with the practical experience, our products form serialization and standardizatio granually. Now we own our brands are "XINLAI"& "XINDONG", and products have passed CE & SGS certificate.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market, like South-East Asia, Middle-Ease, Africa, South America, etc. We wish to cooperate with you to create a bright future and mutual benefit.
Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
