400ton Small Dumster Series Energy-Saving Plastic Injection Moulding Machine

400ton Small Dumster Series Energy-Saving Plastic Injection Moulding Machine
Price: US $ 48000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

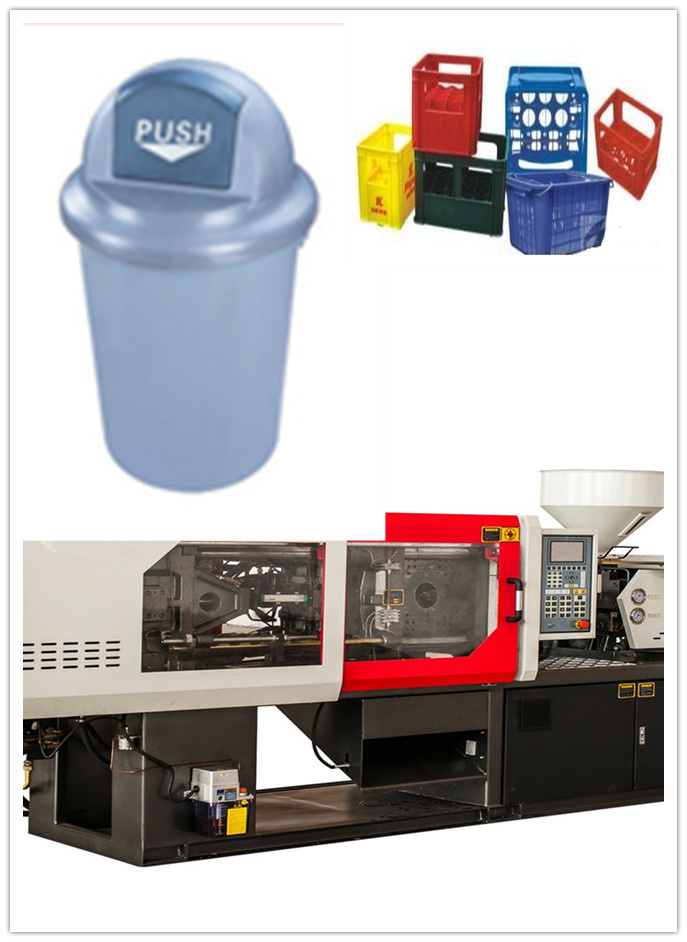

400 Ton Plastic Injection Molding Machine

We are professional plastic injection molding machine manufacturer for all kinds of production requirements, Clamping force from 50 to 1680T, injection weight from 50 to 10000g. With best price/ performance ration of any machine on the market.

Some of the important features:

Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information

Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai



INJECTION UNIT
  Unit WMK-400
A B C
Screw Diameter Mm 70 75 80
Screw L/D Ratio L/D 21.4 20 18.8
Short Size Cm3 1385 1590 1809
Injection weight G 1260 1447 1646
Injection Rate g/s 310 356 405
Plasticizing capacity g/s 60 65 70
Injection Pressure Mpa 195 158 139
Screw Speed Rpm 0-165




CLAMPING UNIT
Clamp Force KN 4000
Space Between Tie Bars mm 720*720
Toggle Stroke mm 700
Max. Mold Height mm 760
Min. Mold Height mm 280
Ejector Stroke mm 200
Ejector Tonnage KN 110
Ejector Number P 13


OTHERS
Max. pump Pressure Mpa 16
Pump motor powder Kw 37
Heater Power Kw 24.8
Machine Dimension(L*W*H) M 7.3*2.0*2.2
Oil Tank Capacity L 850
Machine Weight T 16

Prod Model: wmk-400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clamp Force: 4000kn
Machine Dimension(L*W*H): 7.3*2.0*2.2m
Machine Weight: 16t
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Type: Injection Molding
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
