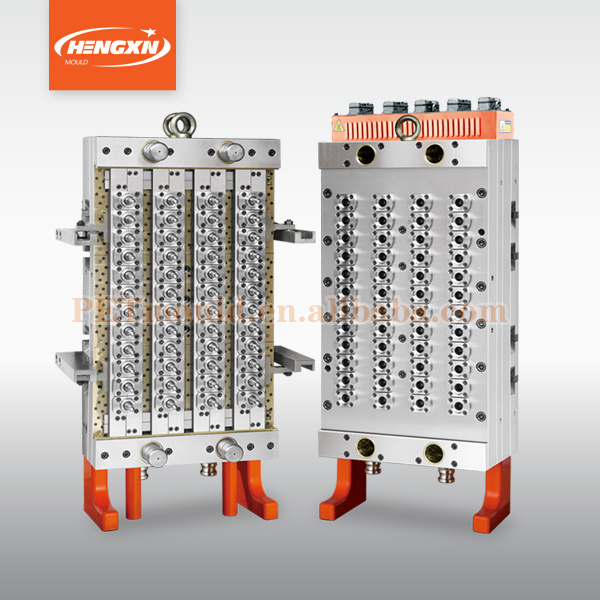

48 cavities PET preform mold (PCO preform)Detailed Product Attribute
s136 steel : hot runner
pin value : ≥3000,000 shots
THE ADVANTANGE OF PET VAVLE TYPE PREFORM MOULD1.cavaty,core and screw neck of steel adpot imported S136 in Sweden,and be heating treatment of hardness up to HRC 48- 50; All mould base do heat treatment of heardness up to HRC 30-35.
2.Advanced mould design technology:pet preform mould
Each cavity self-locks independently and using high precision JAPAN SYATEM.
To ensure low decent ration & precision of the product.
Each mould spare part be inserted with durable parts,which are interchangeable.
In order to improve and achieve high production efficiendy,we always design the best cooling system and can match a cooling machine for each pet mould.
3.Advanced & accurated vavle hot runner & tempertature controller,ensure reliability of production and high transperendy & brightness of product.
4.Mould sliding use copper,bottle be achieved FOOD SECURITY standard,and mould life guarantee more than 3 million shots.
CUSTOMER SUPPORTOur PET group provides an experienced team ready to support you in inplementing your preform mould and hot runner concepts.Our service starts with individual assistance in the pre-sales stage and does not end with supplying the mould but instead continues through to the end of he mould lifetime.
COOLING SYSTEMspiral water cooling way on cavity enhances mould cooling.
cooling system on neck and move neck plates brings an enhance cooling.
precise distributary plate distributes cooling water into cavity evenly,quicken preform cooling.
HOT RUNNERhot runner balance design ensures evenly force,uniform heating and identical preform.
less energy cost and pressure lost.
independent cavity control system ensures nozzle temperature fluctuates within 1 .

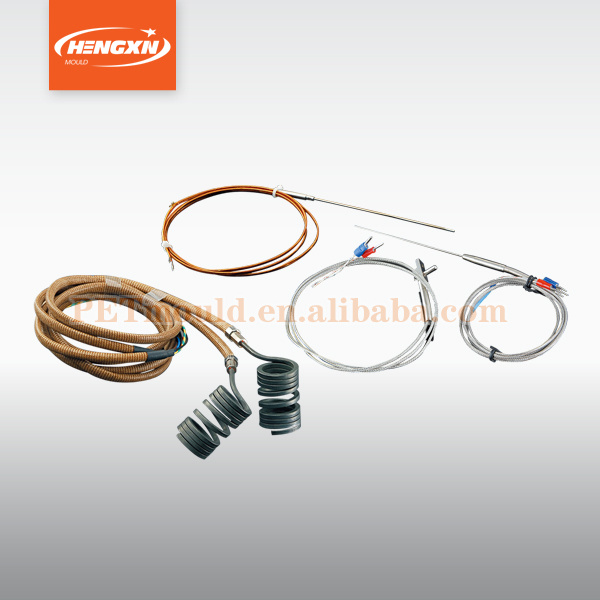

Adopt imported heating devices,Germany Hotset or Italy Rotfil.
PREFORM MOULD STRUCTURE:LONG-CUTTING GENERAL PREFORM MOULDS
LONG-CUTTING DOUBLE-LOCK PREFORM MOULDS
SHORT-CUTTING GENERAL PREFORM MOULDS
SHORT-CUTTING DOUBLE-LOCK PREFORM MOULDS
NO-CUTTING PIN-VAVLE PREFORM MOULDS
MOULD DATE
The thickness and weight of moulds are in accordance with the tubes,these measurements will change in case the products are improved.
|
Mold name |
PET preform mould for carbonated soft drink bottle (the neck can from 53mm-200mm diameter) |
|
Cavity number |
48 or customer' s requirement(ranges from 1 to 72 cavities) |
|
Mold structure |
hot runner with vavle gate system(Germany HOTSET heaters) |
|
mold core/cavity material |
S136, NAK80 or as customer' s requirement |
|
Mold base material |
P20 , 718, 2738, H13 or as customer' s requirement |
|
design software |
PROE , Cimtron, UG, AutoCAD, CAM, CAE, UG, ect |
|
Hot runner |
Hot runner made by our own factory.
YUDO, SINO, HUSKY or other famous brand as your choice. |
|
Mould surface |
Texture/Mirror polish or according to customer' s request |
|
Mold Guarantee time |
3 million shot times |
|
delievery time |
15-40days after get the deposit |
Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd (Hengxin) was established in 1992.
Hengxin occupies more than 10, 000 square meters workshop and has more than 100 employees.
Hengxin is specialized in PET perform mould, cap mould, bottle blowing mould, household mould.
With many years rich experience, Hengxin become one of Chinese leading and famous suppliers of PET preform mould. Especially we design and manufacture self-lock PET perform mould and shut-off nozzle PET perform mould by ourselves.
Hengxin moulds have been well received abroad in Italy, Russia, Africa, Southeast Asia and the Middle East as well as at home.
We also set up several agencies for supplying business consultation, technology support and after-sale service at home and abroad.
"To survive by quality, to develop by creditability, to satisfy the customers" are our guidelines.
