Application:
20mm.28PCO,28BPF
Cap Weight:
1.8g, 1.5g
Cavity Number:
48 Cavity
Core And Cavity Material:
718H, 2316
Injection System:
Hot Runner
Material:
PP

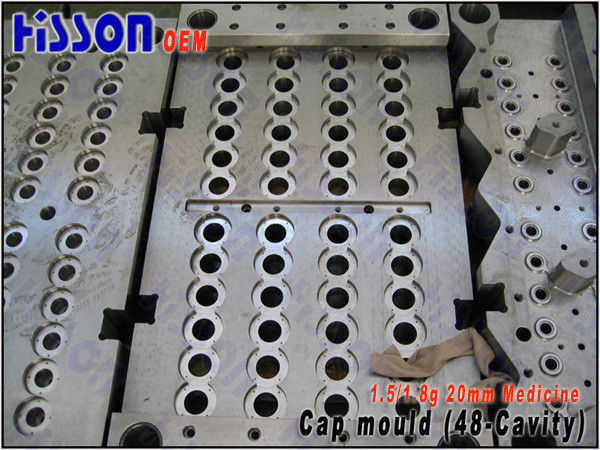

Plastic Cap Mould , 48 Cavity, 20mm/28PCO/28BPF
Quick Detail:
20mm Cap Injection Mold
48 Cavity
1.5g/1.8g
Core And Cavity Material:718H/2316
Hot Runner
Description:
1. Process engineering
Material to be used : PP/PE
Anual Production Preview : >1.000.000
Type of injection system : Hot Runner System withSingle-point Temperature Control
Type of gating : Center of the part / Cosmetic Gate
Mould base steel : P20 (EquivalentNormalized 200HB)
Mould Base Parting Line Plates : Pre-hardened 30/32 HRC
Cavity Steel : 718H/2316 Hardened 55 HRC
Core steel : 718H/2316(Stainless) Hardened 55 HRC
Stripper Plate Inserts Steel : 718 Hardened 54/56 HRC
Slides Steel : 718H/2316 Hardened 38 HRC
Type of Ejection: StrippingPlate+Center Ejection
Type of Finish (Cavity side) : SPI A3 (Intermediate MirrorPolish)
Type of Finish (Core side) : SPI B2 (Sandpaper Finish Grit400)
Engravings: Part Number/CavityNr./Logo
Hisson Plastic Machinery Co., Limited was founded in 1996, which located in Ningbo, a harbor city of eastern China.
We supply high quality plastic injection molding machine, PET bottle blow molding machine, extrusion blow molding machine and various kinds of plastic molds.
Our injection molding machines are exporting to many countries include European countries, Australia, Middle East, Afraica etc., now energy saving is popular, more than 60% of the machines we made are servo motor machines.
In PET bottle field, we have abundant experience, we have special PET preform injection molding machine, PET preform injection mold, semiauto and automatic PET bottle stretch blow molding machine and blow molds, we have 2-cavity, 4-cavity and 6-cavity automatic PET bottle blow molding machine. We provide 2D and 3D design service for PET preforms and PET bottles, according to samples, design draft or only idea.
We serve for all clients include agents and final users, we provide Turkey solution of complete production line, the auxiliary equipment we choose are from top grade manufacturers.
