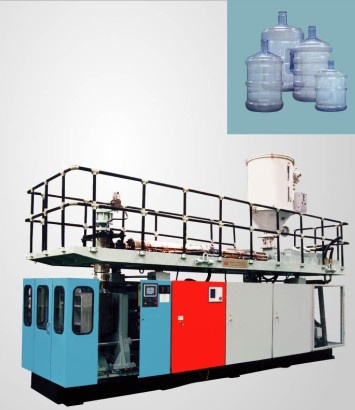

Description of 5gallon high performance PC blowing machine/equipment
BASIC INSTALLATION INCLUDING
L Die head: Special designed die head
L Extrusion system: Adopt import automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating.
L Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder.
L Blowing device: Blowing device with upper blowing type
L Hydraulic system: The whole hydraulic system adopts import controlling components with famous broad and proportional controlling circle.
L Electric controlling system: Adopt PLC made by Panasonic. Every electric component is in famous brand.
Ø Model: TDB-25APC
Ø Suitable for 5gallon PC jar
Ø Output for 5gallon PC bottle: 70~85PCS/hr
FEATURES
1. High accuracy and stability
2. Intelligent temperature control, stable infrared heating
3. Quality automatic detection
4. Hot filling bottle formed at 150Dgree and bare 95 degree
5. Freeze crystallization, prevent PET molecular from relaxation, retention period≥ 45 days
6. Mineral water bottles.
|
TYPE |
ITEM |
UNIT |
YD-800 standard Technical data |
YD-1500 combination Technical data |
|
Container |
Product material |
/ |
PET/PC/PE/ |
PET/PC/PE |
|
Container volume |
L |
0.1-1.5(2-cavity) |
0.1-1.5 (2-cavity) |
|
Theoretic output |
Psc/hr |
800 |
800 |
|
Max bottle height |
M |
360 |
360 |
|
Max bottle diameter |
mm |
120 |
120 |
|
Molding |
Max mold plate dimension |
mm |
640*470 |
640×470 |
|
Max mold thickness |
mm |
250 |
250 |
|
Clamping force |
KN |
80 |
160 |
|
Mold opening stroke |
mm |
240 |
240 |
|
Air compressor |
Air compressor |
M 3 /Mpa |
>=0.63/3.0 |
>=0.63/3.0 |
|
Air pressure for blowing |
Mpa |
2.0-3.0 |
2.0-3.0 |
|
Power |
KW |
10.8 |
18.8 |
|
Main machine electricity |
Voltage / frequency |
V / Hz |
380/50(3phase) |
380-240-110/50-60(3phase) |
|
Main machine |
M |
1.63×0.62×2.00 |
1.63×0.62×2.00 |
|
Machine size and weight |
Main machine weight |
T |
0.6 |
0.6 |
|
Heater |
M |
1.8×0.7×1.5 |
1.8×0.7×1.5 |
|
Heater weight |
T |
0.22 |
0.22 |
|
High pressure compressor |
M |
1.90×0.75×1.5 |
1.90×0.75×1.5 |
|
Air filter |
Kg |
18×1pcs |
18×2pcs |
|
Safety |
Auto emergency alarm |
Safety inter-locking device |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
